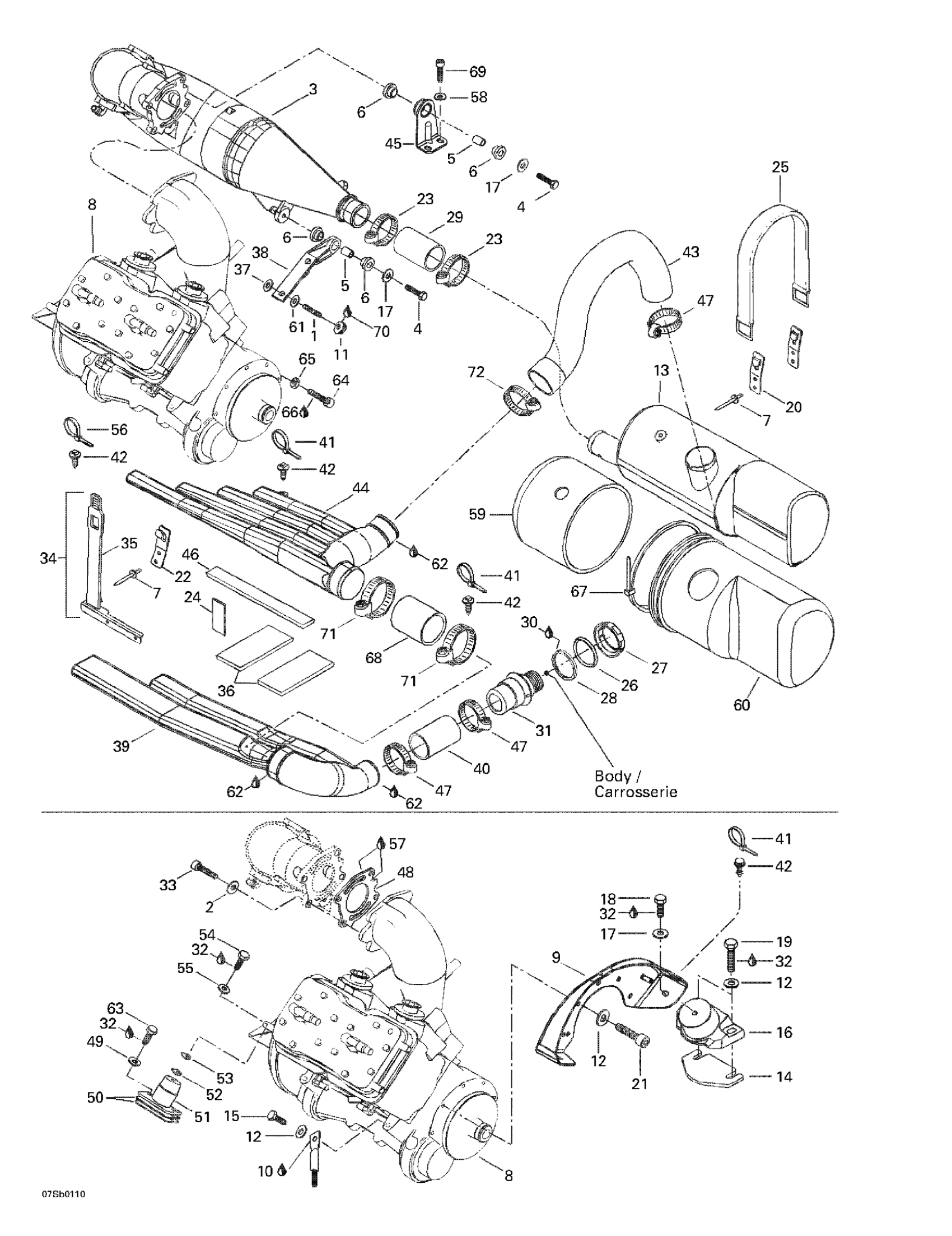

Sea-doo GSX RFI, 5549, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

Stud M10 X 60

250300007

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

$1.04

3

Head Pipe Ass'y | Includes 7 - 9.

274000395

Unavailable

4

Hex. Screw M8 X 40, Scotch Grip

207284060

$2.24

5

Bushing

274000254

Unavailable

6

RUBBER BUSHING - Call your local BRP dealership

293830036

Unavailable

7

Avdel Rivet 3/16"

293150037

$0.54

8

Rotax Engine 787 SDI (Silver)

270000466

Unavailable

9

Engine Support

270000359

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

Hex. Flange Nut M10

233101600

$5.04

12

Stainless, Flat Washer 8 mm

234081600

$0.52

13

Muffler

274000737

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.27

16

Rubber Mount, Black

270000421

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.27

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.12

20

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

21

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.99

22

Strap Clip

293850042

Unavailable

23

Tridon Clamp

293650023

$11.37

24

Rubber Pad

291001391

Unavailable

25

Retainer Strap

293850097

$10.63

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

Nut 72 mm

274000224

$13.97

28

GASKET - Call your local BRP dealership

293250041

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Exhaust Hose, Outlet

274001391

$26.84

32

Loctite 243, 10 ml

293800060

$21.49

33

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

34

Resonator Strap Ass | Includes 34 - 35.

293850044

Unavailable

35

STRAP - Call your local BRP dealership

293850031

Unavailable

36

RUBBER PAD - Call your local BRP dealership

274000752

Unavailable

37

Flat Washer 10 mm, Stainless

234002600

$2.12

38

SUPPORT PIPE - Call your local BRP dealership

274000759

Unavailable

39

RESONATOR EXTENSION - Call your local BRP dealership

274000701

Unavailable

40

Exhaust Hose

274000616

Unavailable

41

Tie-Rap 180 mm

414115200

$0.10

42

Mount Dart

293730040

$0.99

43

EXHAUST HOSE - Call your local BRP dealership

274000725

Unavailable

44

LH UPPER RESONATOR - Call your local BRP dealership

274000700

Unavailable

45

Pipe Support

274000779

Unavailable

46

Rubber Pad

274000785

Unavailable

47

Tridon Clamp

293650064

$7.57

48

Gasket

290931503

Unavailable

49

Stainless, Flat Washer 8 mm

234081600

$0.52

50

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

Shim 1.3 mm

270000762

$10.37

51

Rubber Mount

270000408

Unavailable

52

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

53

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

54

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

55

Flat Washer 8 mm, Stainless

234082600

$2.27

56

Tie Wrap 142 mm

293750002

$1.01

57

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

58

Flat Washer M8.5 x 18

293050001

$1.48

59

Front MÙffler Cover

274000790

Unavailable

60

Rear Muffler Cover

274000793

Unavailable

61

Flat Washer

211200051

$1.54

62

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

63

Hex. Screw M8 X 40

207184060

$2.12

64

Socket Screw M10 X 30

205003060

Unavailable

65

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

66

Loctite 271, 10 ml

293800005

$23.85

67

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

68

EXHAUST HOSE - Call your local BRP dealership

274000726

Unavailable

69

Socket Head Screw M8 X 25, Scotch Grip

205582560

$1.99

70

Loctite 262, 50 ml

413705200

Unavailable

71

Tridon Clamp

204000079

$8.45

72

Tridon Clamp

293650179

$10.12
