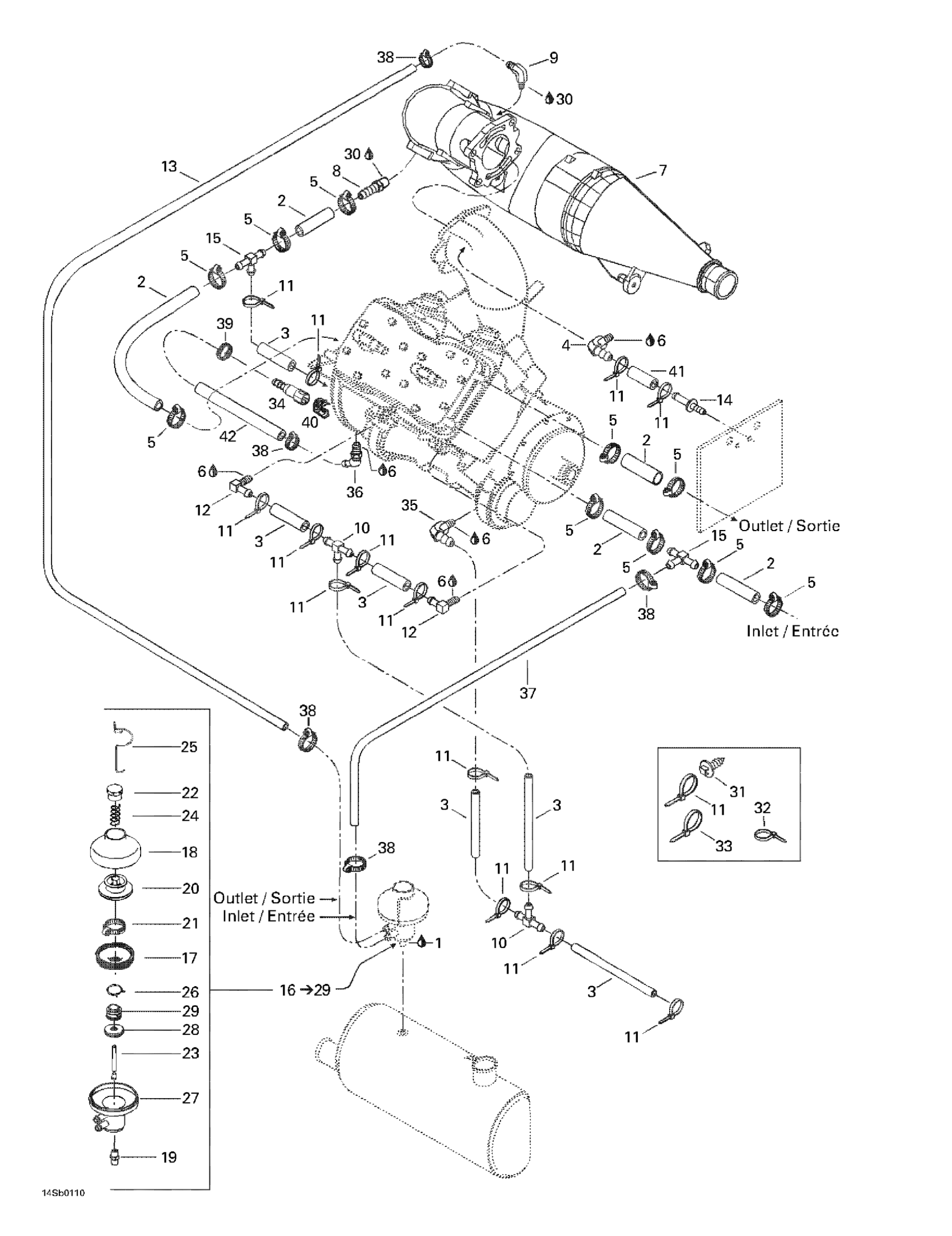

Sea-doo GSX RFI, 5549, 2001 Cooling System Diagram

#

Description
Price

1

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

2

Was 276000001 Hose 12.5 mm

219704394

$51.99

3

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

4

Elbow Fitting 90°

293710018

Unavailable

5

Tridon Gear Clamp

293650172

$3.09

6

Was 293800013 Loctite 56765

219704454

$65.99

7

Head Pipe Ass'y | Includes 7 - 9.

274000395

Unavailable

8

Male Connector | With Catalyst

293710021

$14.23

9

Elbow Fitting 90°

293710048

Unavailable

10

T-FITTING - Call your local BRP dealership

293710061

Unavailable

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

12

Elbow Fitting

293700016

Unavailable

13

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

14

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

15

T-Fitting

293710116

$17.62

16

Pressure Regulator Ass'y | Includes 16 - 29.

274000838

Unavailable

17

Bellow

420260721

$51.99

18

Valve Cover

420911552

$38.99

19

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Rivalair Clamp

293650065

Unavailable

22

Adjuster Screw

420241221

$14.22

23

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

24

Spring 50 mm

274000612

Unavailable

25

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

26

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

31

Mount Dart

293730040

$1.04

32

Tie-Rap 180 mm

414115200

$0.11

33

Tie Wrap 142 mm

293750002

$1.25

34

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

35

Elbow Fitting

293700016

Unavailable

36

ELBOW FITTING 90 - Call your local BRP dealership | With Catalyst

204130218

Unavailable

37

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

38

Tridon Gear Clamp

293650170

$1.99

39

Crimp Clamp, 15.3-706R

293650047

$3.29

40

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

41

Hose 6 Mm 15000Mm Long

219704360

$132.49

42

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable
