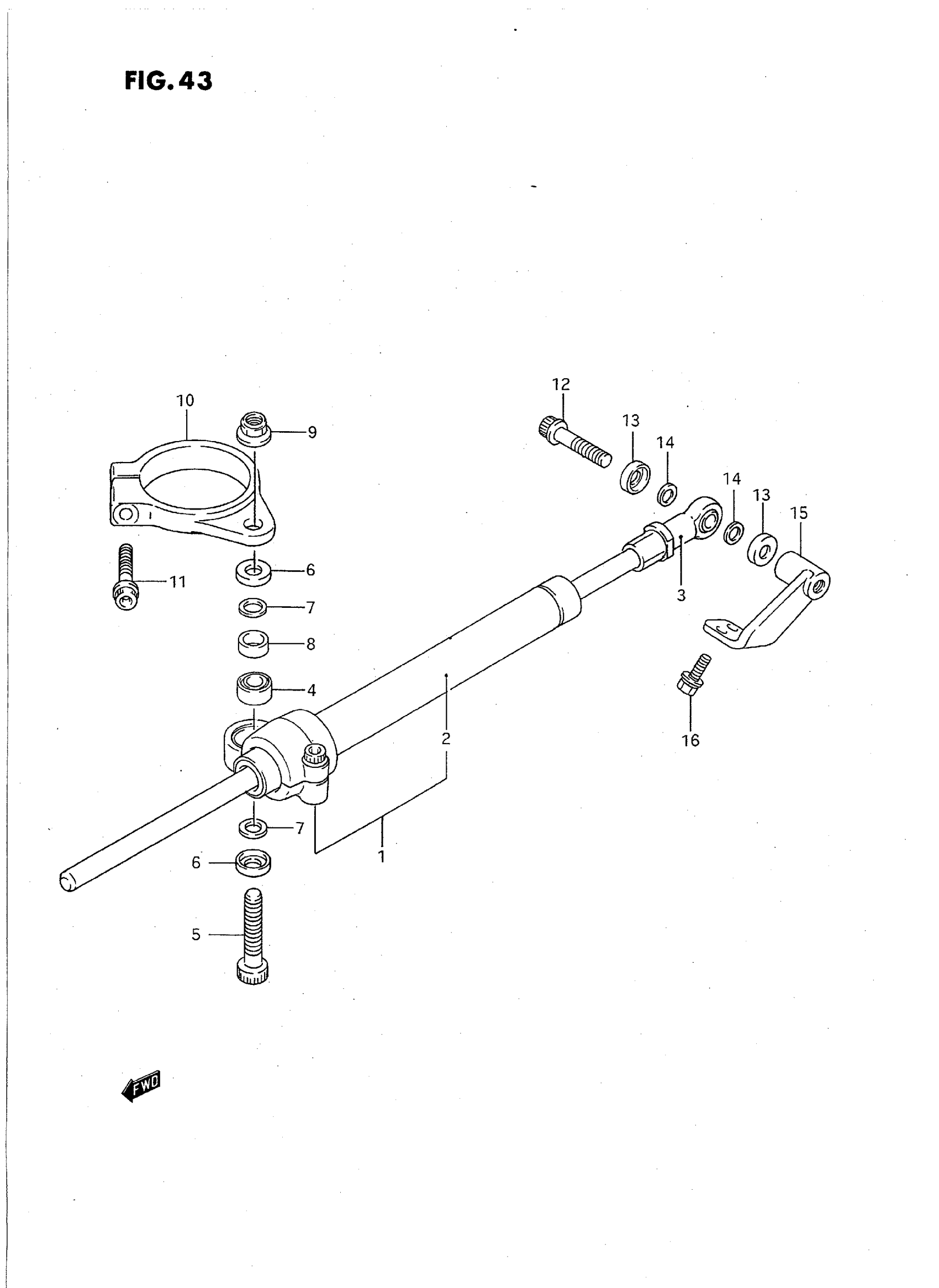

Suzuki GSX-R750WS (1995) STEERING DAMPER (MODEL P) Diagram

#

Description
Price

1

DAMPER ASSY, STEERING | Includes Item(s) 2 - 4

51750-17E00

Unavailable

2

DAMPER, STEERING

51759-17E00

Unavailable

3

END, LOD

51760-40C01

Unavailable

4

BEARING

09269-08003

$46.80

5

BOLT

07130-08407

$2.88

6

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

7

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

8

SPACER,8.4X14X6 This part replaces 09180-08130.

09180-08130-XC0

Unavailable

9

NUT

08319-31087

$2.31

10

BRACKET, FORK

51781-17D00

Unavailable

11

BOLT This part replaces 07120-06358.

07120-0635B

$3.10

12

BOLT

07130-08357

$2.92

13

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

14

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

15

BOSS, STEERING DAMPER

51740-17E00

Unavailable

16

BOLT This part replaces 01177-06165.

01580-0616A

$2.43

17

REFER TO FIG.43A (G-14) FOR

SPECIAL NOTE

Unavailable
