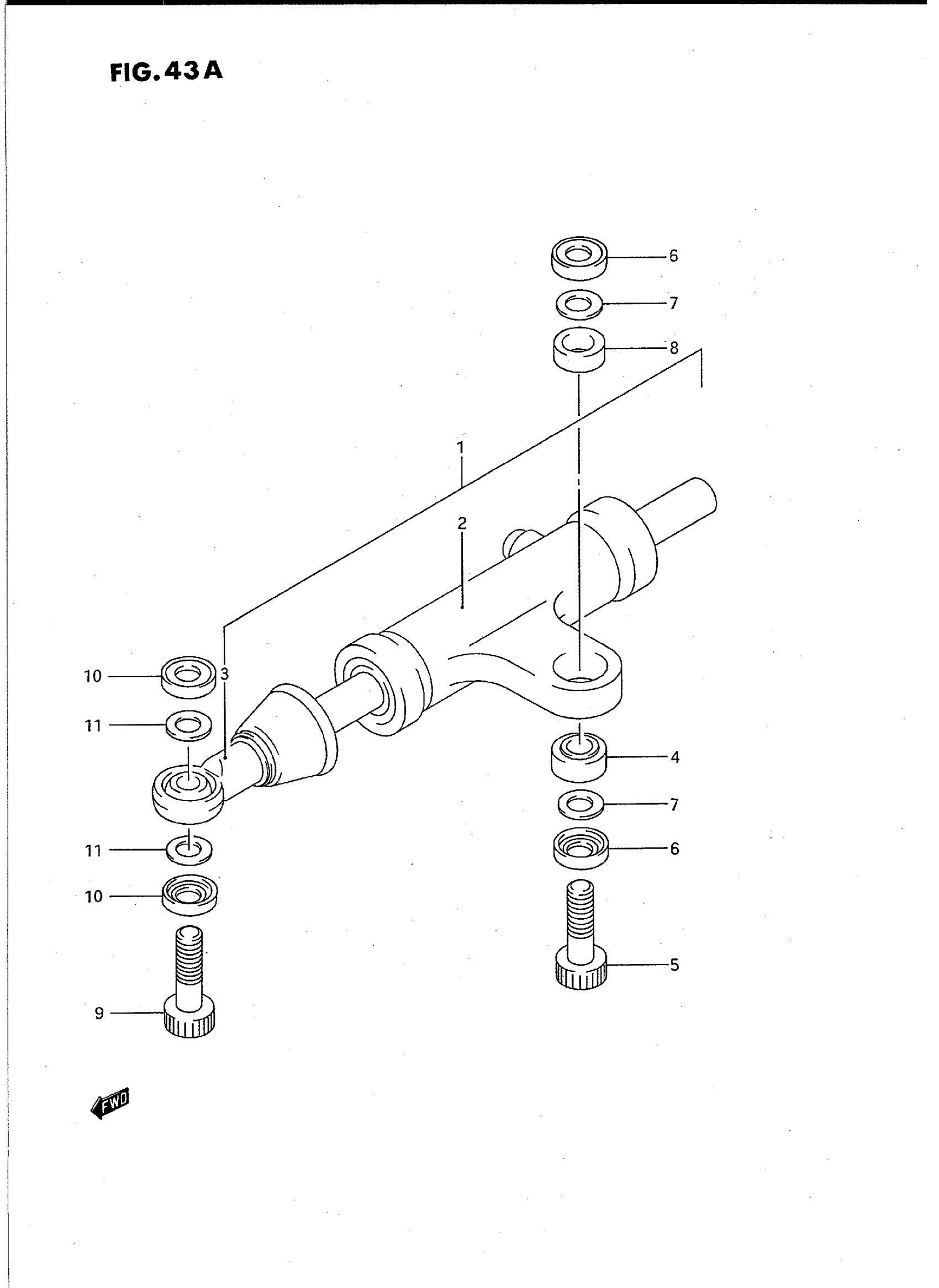

Suzuki GSX-R750WS (1995) STEERING DAMPER (MODEL R/S) Diagram

#

Description

Price

1

DAMPER ASSY, , STEERING | MODEL R This part replaces 51750-17E20.

51750-46E00

Unavailable

1

DAMPER ASSY, STEERING | MODEL S; Includes Item(s) 2 - 4

51750-46E00

Unavailable

2

DAMPER, STEERING

51759-46E00

Unavailable

3

END, LOD

51760-40C01

Unavailable

4

BEARING

09269-08003

$46.80

5

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$2.80

6

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

7

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38

8

SPACER,8.4X14X6 This part replaces 09180-08130.

09180-08130-XC0

Unavailable

9

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$2.80

10

DUST SEAL TORQU This part replaces 64339-40410.

64339-40411

$6.62

11

SHIM (8X12X0.8) This part replaces 08221-08126.

09181-08106

$2.38
