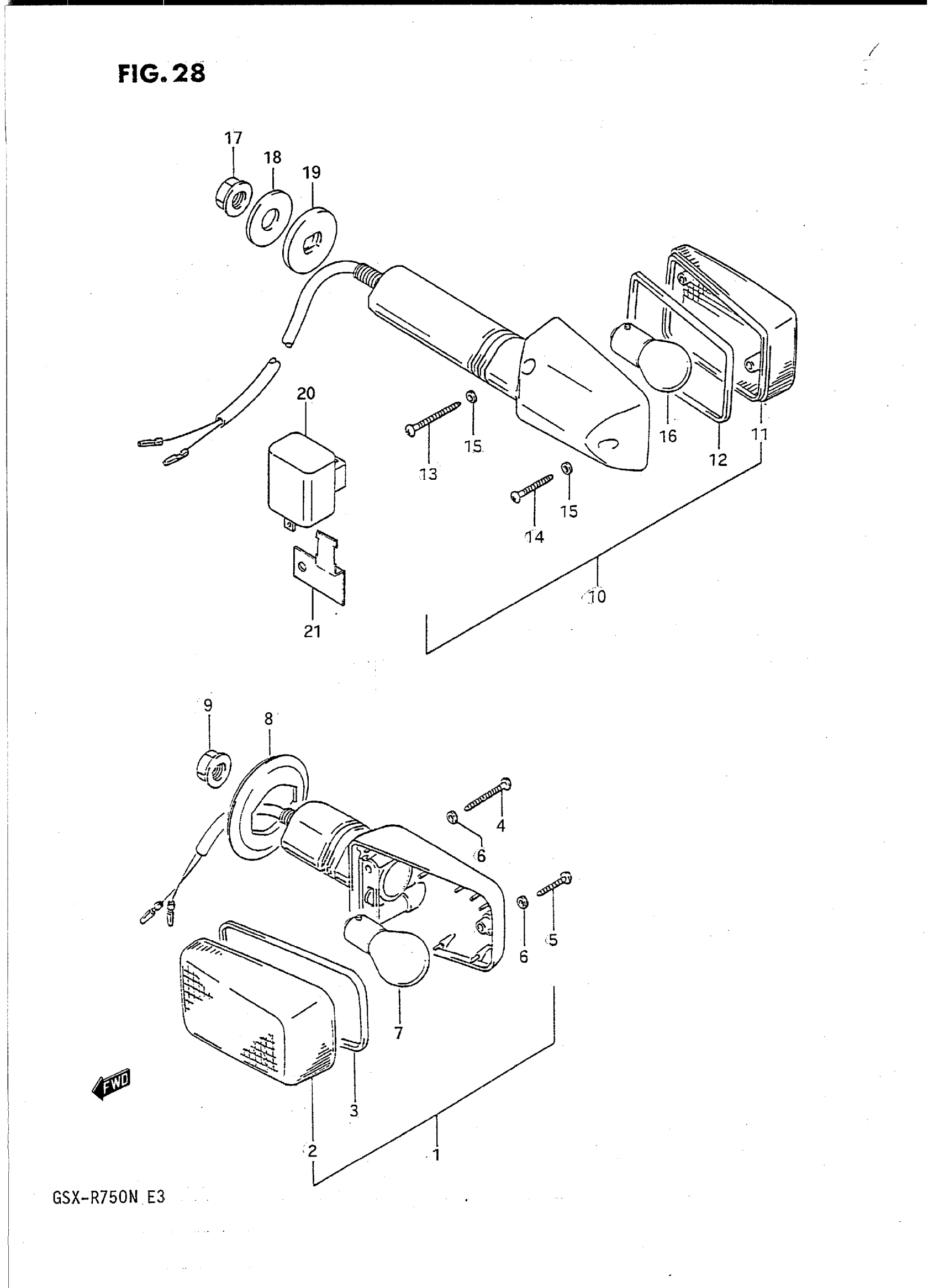

Suzuki GSX-R750N (1992) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL M This part replaces 35601-12C11.

35601-01D00

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL | MODEL N; Includes Item(s) 2 - 7

35601-01D00

Unavailable

2

LENS

35612-17C20

$10.23

3

GASKET

35613-27A00

$4.46

4

TAPPING SCREW

35623-27A00

$1.87

5

TAPPING SCREW

35725-40511

$1.78

6

GASKET

35627-27A02

$1.78

7

BULB (12V,21W)

09471-12045

$3.06

8

GROMMET

35674-27A01

$9.43

9

NUT This part replaces 08316-26105.

08316-2010B

$4.38

10

LAMP ASSY, REAR TURNAIGNAL | Includes Item(s) 11 - 16

35601-17C41

Unavailable

11

LENS

35612-17C20

$10.23

12

GASKET

35613-27A00

$4.46

13

TAPPING SCREW

35623-27A00

$1.87

14

TAPPING SCREW

35725-40511

$1.78

15

GASKET

35627-27A02

$1.78

16

BULB (12V,21W)

09471-12045

$3.06

17

NUT This part replaces 08310-12108.

08310-00107

$2.25

18

WASHER

09160-10094

$4.03

19

SPACER

35695-17C00

$3.86

20

RELAY ASSY, TURNSIGNAL This part replaces 38610-31310.

38610-31X50

$90.45

21

BRACKET, RELAY | CALIFORNIA ONLY

38621-18D00

Unavailable
