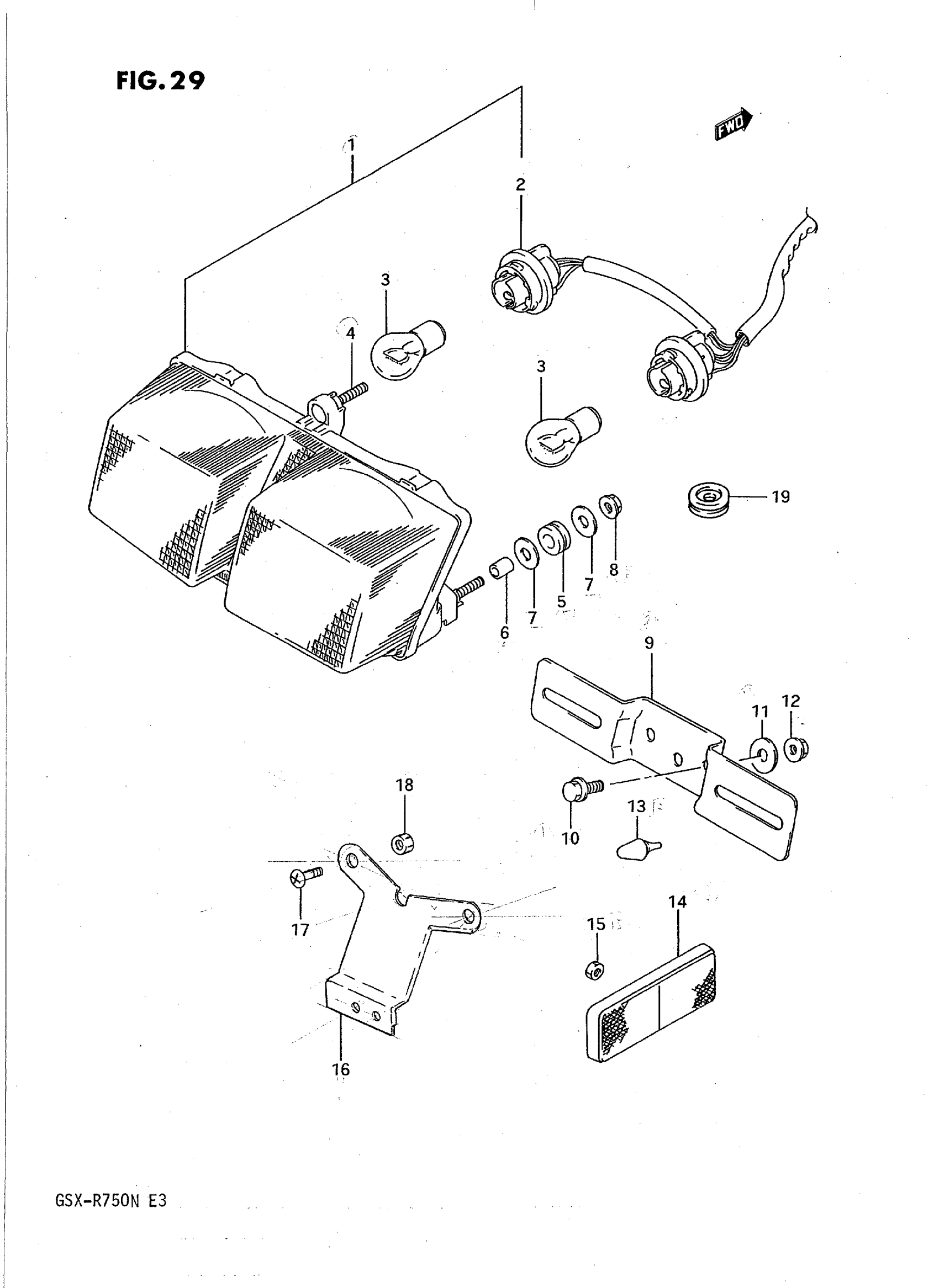

Suzuki GSX-R750N (1992) TAIL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 35710-18D30.

35710-18D30-999

Unavailable

2

SOCKET & CORD

35718-41C00

Unavailable

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

4

BOLT, REAR This part replaces 01107-06307.

01500-06307

$2.48

5

CUSHION This part replaces 09320-08048.

09320-08501

$3.23

6

SPACER (6.1X8X9.5) This part replaces 09180-06044.

09180-06248

$2.12

7

WASHER

09160-06056

$1.72

8

NUT This part replaces 08316-26066.

08316-1006B

$2.50

9

BRACKET, LICENSE PLATE

35927-00A10

$14.20

10

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

11

.WASHER (6.5X20X1.6) This part replaces 09160-06059.

09160-06088

$1.65

12

NUT This part replaces 08316-26066.

08316-1006B

$2.50

13

CUSHION

09321-06023

$2.50

14

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

Unavailable

15

.NUT This part replaces 08310-22055.

09140-05006

$2.19

16

BRACKET, REAR REFLECTOR

35974-18D00

Unavailable

17

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

18

NUT This part replaces 08316-26065.

08316-2006A

$2.63

19

GROMMET

09308-07013

$2.89
