1992 Suzuki GSX-R750N Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 1992 Suzuki GSX-R750N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

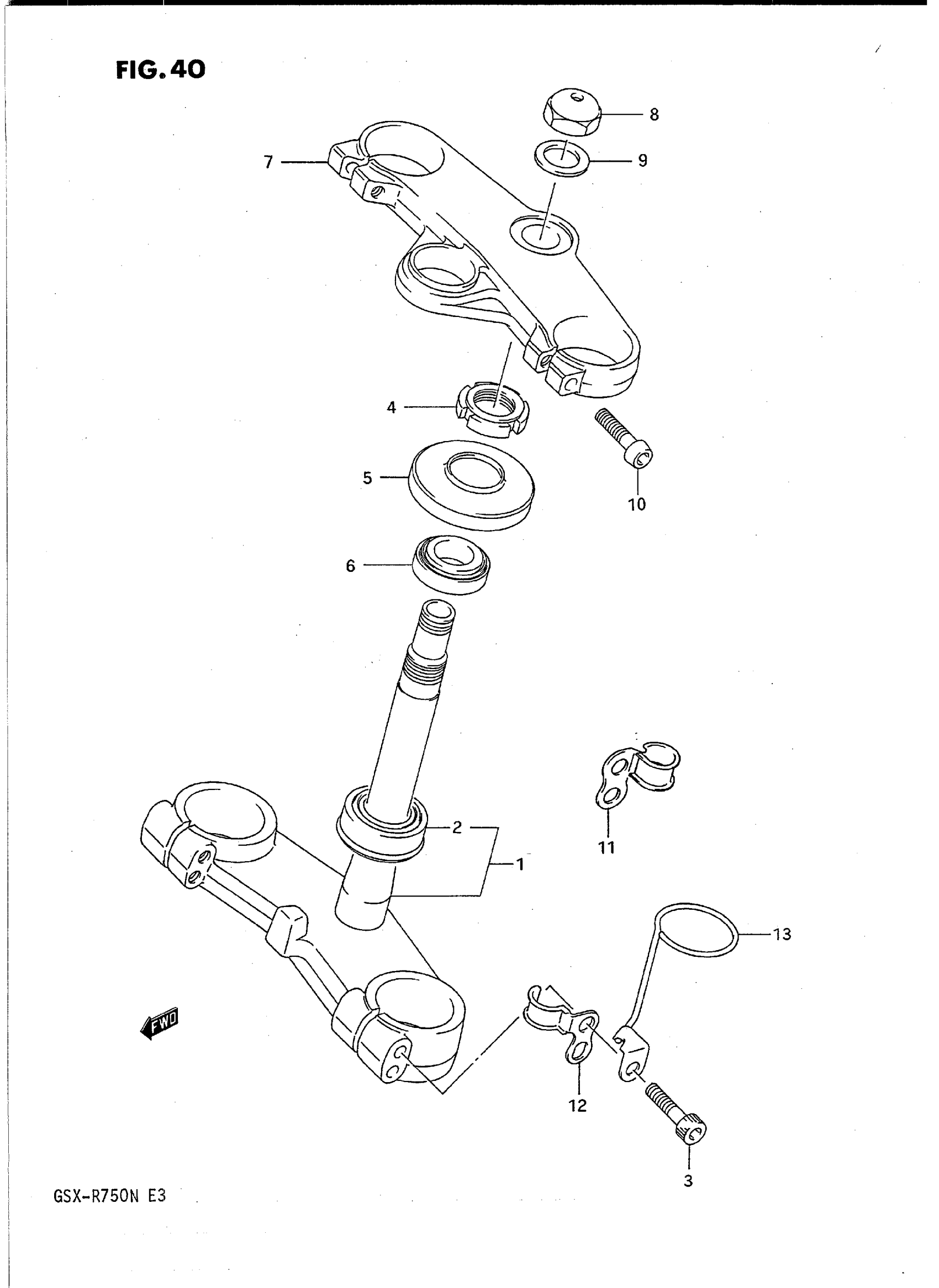

1992 Suzuki GSX-R750N Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2

51410-17D00

1
Out of stock

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

1
Out of stock

3

BOLT,10X45 This part replaces 09106-10022.

09106-10022-XC0

4
Out of stock

4

NUT, STEERING STEM

51631-28000

1
Out of stock

5

SEAL,OIL This part replaces 09285-34007.

09285-34010

1
Out of stock

6

BEARING

09265-25008

1
Out of stock

7

BRACKET, UPPER

51311-17D00

1
Out of stock

8

NUT This part replaces 51353-17C00.

51353-28A10

1
Out of stock

9

WASHER, STEM | MODEL M This part replaces 51354-17D00.

51356-24B01

1
Out of stock

9

WASHER, STEM | MODEL N This part replaces 51354-17C00.

51356-24B01

1
Out of stock

10

BOLT, UPPER

51328-18D00

2
Out of stock

11

GUIDE, CABLE NO.1 This part replaces 34938-41C00.

34938-17E00

1
Out of stock

12

CLAMP, CLUTCH CABLE

58285-17C00

1
Out of stock

13

HOLDER, STEERING DAMPER

51740-17D00

1
Out of stock
