1992 Suzuki GSX-R750N Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1992 Suzuki GSX-R750N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

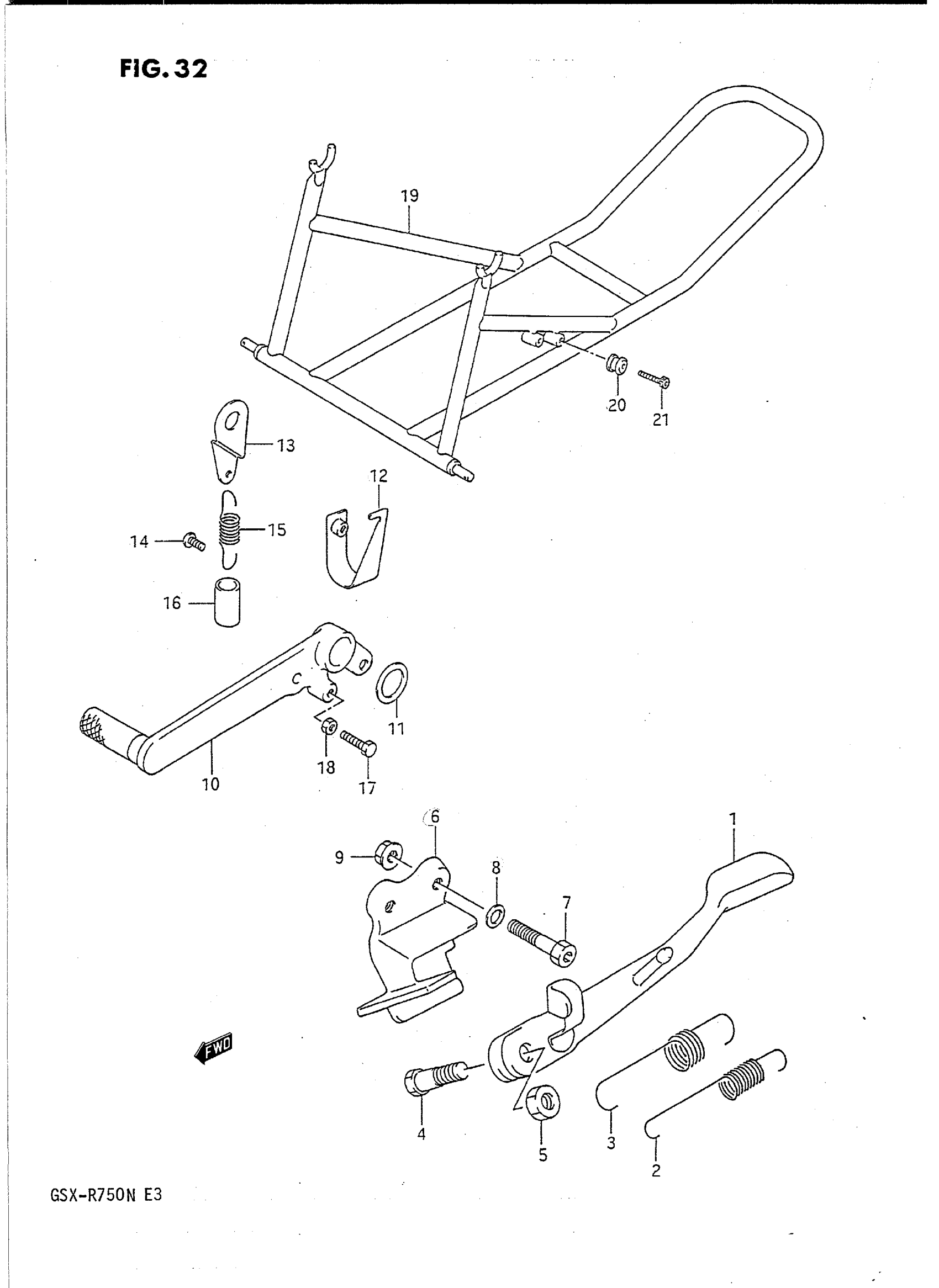

1992 Suzuki GSX-R750N Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-07D02

1
Out of stock

2

SPRING, INNER

09443-14058

1
Out of stock

3

SPRING, OUTER

09443-19011

1
Out of stock

4

BOLT

09111-10036

1
Out of stock

5

NUT This part replaces 08310-22107.

08310-00107

1
Out of stock

6

BRACKET, PROP STAND

42330-07D00

1
Out of stock

7

BOLT This part replaces 07110-08358.

07130-08357

2
Out of stock

8

WASHER

09164-08015

2
Out of stock

9

NUT (CHROME) This part replaces 08316-16088.

08316-10087

2
Out of stock

10

PEDAL, BRAKE

43110-17C03

1
Out of stock

11

WASHER

09160-18022

1
Out of stock

12

PLATE, BRAKE PEDAL

43561-17C01

1
Out of stock

13

BRACKET, STOP SWITCH LOWER

43563-17C01

1
Out of stock

14

BOLT

09139-06027

1
Out of stock

15

SPRING

09443-13018

1
Out of stock

16

TUBE, SPRING

43261-17C00

1
Out of stock

17

BOLT This part replaces 01104-05206.

01500-0520B

1
Out of stock

18

NUT This part replaces 08310-11057.

08310-00057

1
Out of stock

19

NO DESCRIPTION AVAILABLE | OPT This part replaces 42100-17C00.

99950-70043-RAC

1
Out of stock

20

HOLDER, STAND | OPT

61165-27A30

2
Out of stock

21

BOLT, STEERING DAMPER | OPT This part replaces 07110-08305.

07130-0830A

2
Out of stock
