1992 Suzuki GSX-R750N Frame Diagram

← All diagrams

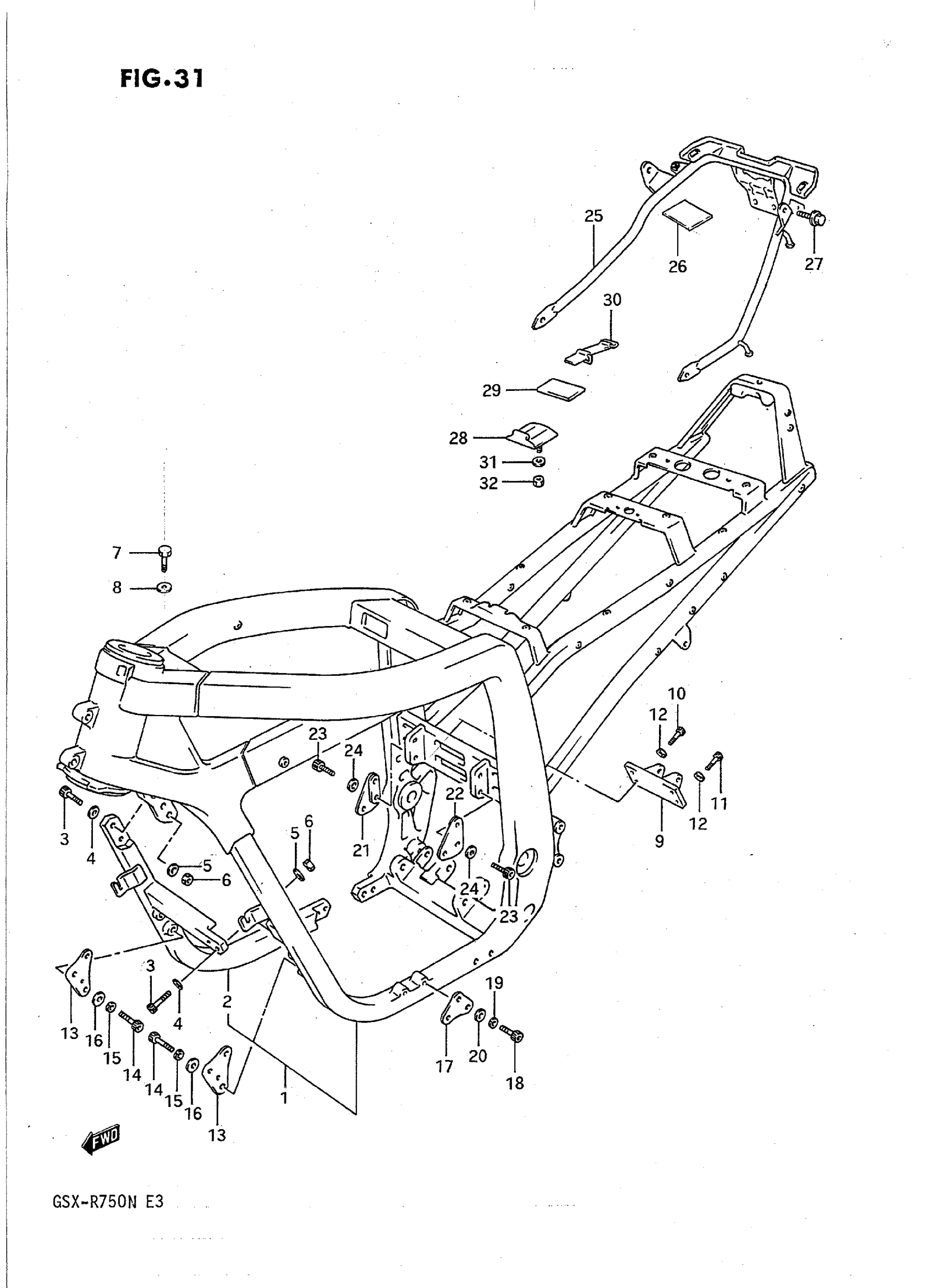

Find the part on the Frame diagram for your 1992 Suzuki GSX-R750N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki GSX-R750N Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME SET This part replaces 41100-18840.

41100-18850

1
Out of stock

1

FRAME SET | CALIFORNIA ONLY; Includes Item(s) 2 - 8

41100-18850

1
Out of stock

2

TUBE, FRAME DOWN RH

41140-17D00

1
Out of stock

3

BOLT, LH This part replaces 07110-10357.

07130-10357

6
Out of stock

4

6

$2.31

In stock

5

WASHER This part replaces 09164-10005.

09164-10010

6
Out of stock

6

NUT

09159-10027

6
Out of stock

7

BOLT | CALIFORNIA ONLY This part replaces 01107-06207.

01500-06207

1
Out of stock

8

GASKET | CALIFORNIA ONLY

09168-06001

1
Out of stock

9

BRACKET, REAR CUSHION UNIT

41384-17C60

1
Out of stock

10

BOLT, NO.1

09106-10017

2
Out of stock

11

BOLT, LH This part replaces 07110-10357.

07130-10357

2
Out of stock

12

WASHER This part replaces 09164-10005.

09164-10010

4
Out of stock

13

PLATE, ENGINE MOUNT NO.1 This part replaces 41911-40C00.

41911-41C00

2
Out of stock

14

BOLT This part replaces 07110-08257.

07130-08257

4
Out of stock

15

4

$2.28

In stock

16

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

4
Out of stock

17

PLATE, ENGINE MOUNT NO.2

41921-17C02

2
Out of stock

18

BOLT This part replaces 07110-08257.

07130-08257

4
Out of stock

19

4

$2.28

In stock

20

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

4
Out of stock

21

PLATE, ENGINE MOUNT NO.3 RH

41940-40C01

1
Out of stock

22

PLATE, ENGINE MOUNT NO.3 LH

41950-40C01

1
Out of stock

23

BOLT

09106-08005

4
Out of stock

24

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

4
Out of stock

25

GRIP, REAR

43980-18D30

1
Out of stock

26

PROTECTOR

41881-06C00

1
Out of stock

27

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

2
Out of stock

28

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

1
Out of stock

29

CUSHION

44885-38A00

2
Out of stock

30

BAND, TOOL

09462-00093

1
Out of stock

31

WASHER This part replaces 09160-06006.

09160-06084

2
Out of stock

32

.NUT This part replaces 08319-21068.

08319-2106A

2
Out of stock
