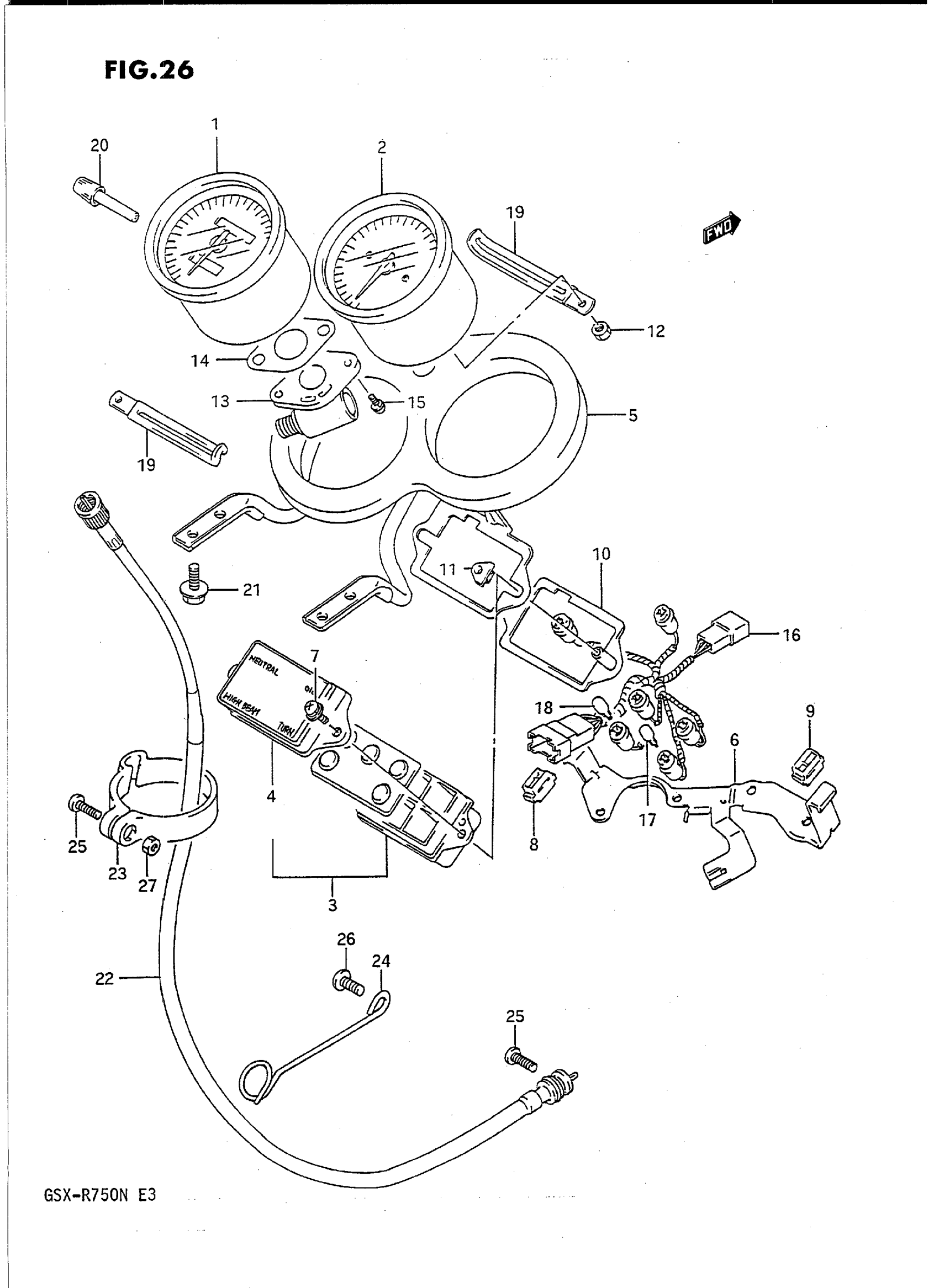

Suzuki GSX-R750N (1992) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER This part replaces 34110-07D30.

34110-41C31

Unavailable

2

TACHOMETER

34210-18D00

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 36380-32C20.

36380-17C20

Unavailable

4

LENS, BOX This part replaces 36381-32C20.

36381-32C10

Unavailable

5

PLATE, SETTING

34950-18D00

Unavailable

6

BRACKET

34111-17C00

Unavailable

7

SCREW This part replaces 02112-74085.

02112-7408B

$2.34

8

DAMPER, LH

34189-17C00

Unavailable

9

CUSHION This part replaces 34189-04A30.

34189-27A00

$6.17

10

PLATE, SETTING

34718-32C00

Unavailable

11

DAMPER

34716-32C00

Unavailable

12

NUT This part replaces 08310-11045.

08310-0004A

$2.30

13

BOX, METER GEAR

34131-48B10

Unavailable

14

GASKET

34132-17C00

Unavailable

15

SCREW This part replaces 02112-34128.

02112-3412B

$2.30

16

SOCKET This part replaces 34170-17C20.

34170-41C20

Unavailable

17

BULB (12V,3W)

09471-12103

$3.83

18

.BULB (12V1.7W)

09471-12108

$3.42

19

CLAMP (L:60) This part replaces 09404-04402.

09404-06429

$1.83

20

KNOB

34124-49400

$4.43

21

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

22

CABLE ASSY,SPEE This part replaces 34910-41C00.

34910-10D32

Unavailable

23

CLAMP, CABLE NO.2

34938-17D51

Unavailable

24

CLAMP, CABLE NO.3

34939-17D00

Unavailable

25

SCREW

02112-05164

$2.63

26

SCREW

02142-06108

$2.45

27

NUT This part replaces 08310-11057.

08310-00057

$1.84
