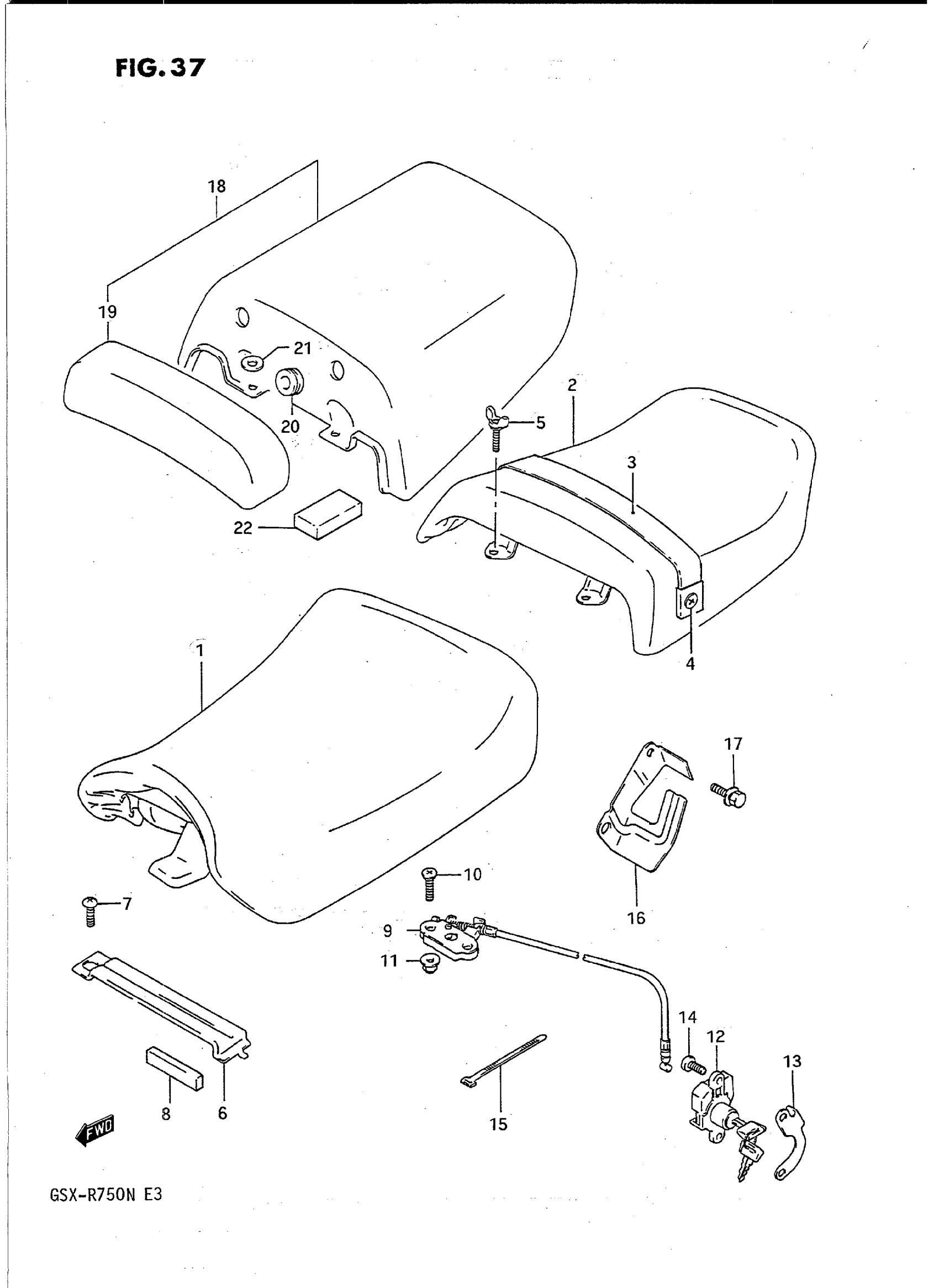

Suzuki GSX-R750N (1992) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-41C00-58R

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 45300-41C10-58R.

45300-41C11-58R

Unavailable

3

BAND, SEAT GRIP (BLACK)

45180-41C00-58R

Unavailable

4

BOLT, SEAT BAND

45186-06B00

Unavailable

5

BOLT, PILLION SEAT

09139-06056

$3.23

6

PLATE, SEAT SUPPORT REAR

45271-17C01

Unavailable

7

SCREW This part replaces 02142-06126.

02142-0612A

$1.49

8

CUSHION, SEAT SUPPORT PLATE

45272-17C02

Unavailable

9

BRACKET, SEAT SUPPORT REAR

45220-17C00

Unavailable

10

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

11

NUT

08319-31067

$2.03

12

CAP SET,SEAT This part replaces 45700-19840.

45700-19841

Unavailable

13

PLATE, SEAT LOCK

45123-17C00

Unavailable

14

SCREW

09139-06075

Unavailable

15

CLAMP

09407-09402

$2.45

16

PLATE, SEAT LOCK CABLE

45290-41C01

Unavailable

16

PLATE, SEAG LOCK CABLE | CALIFORNIA ONLY

45288-40C01

Unavailable

17

BOLT This part replaces 01117-06165.

01550-0616A

$1.97

17

SCREW | CALIFORNIA ONLY This part replaces 02142-06164.

02142-0616A

$1.49

18

NO DESCRIPTION AVAILABLE | OPT This part replaces 45500-41810-0JW.

45500-41811-0JW

Unavailable

18

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 19 - 20 This part replaces 45500-41810-33J.

45500-41811-33J

Unavailable

19

BACKREST, SEAT | OPT

46220-41C00-58R

Unavailable

20

CUSHION | OPT

09320-12031

$2.34

21

WASHER | OPT This part replaces 09160-06006.

09160-06084

$1.78

22

CUSHION | OPT This part replaces 63411-35B00.

51827-01A00

$6.17
