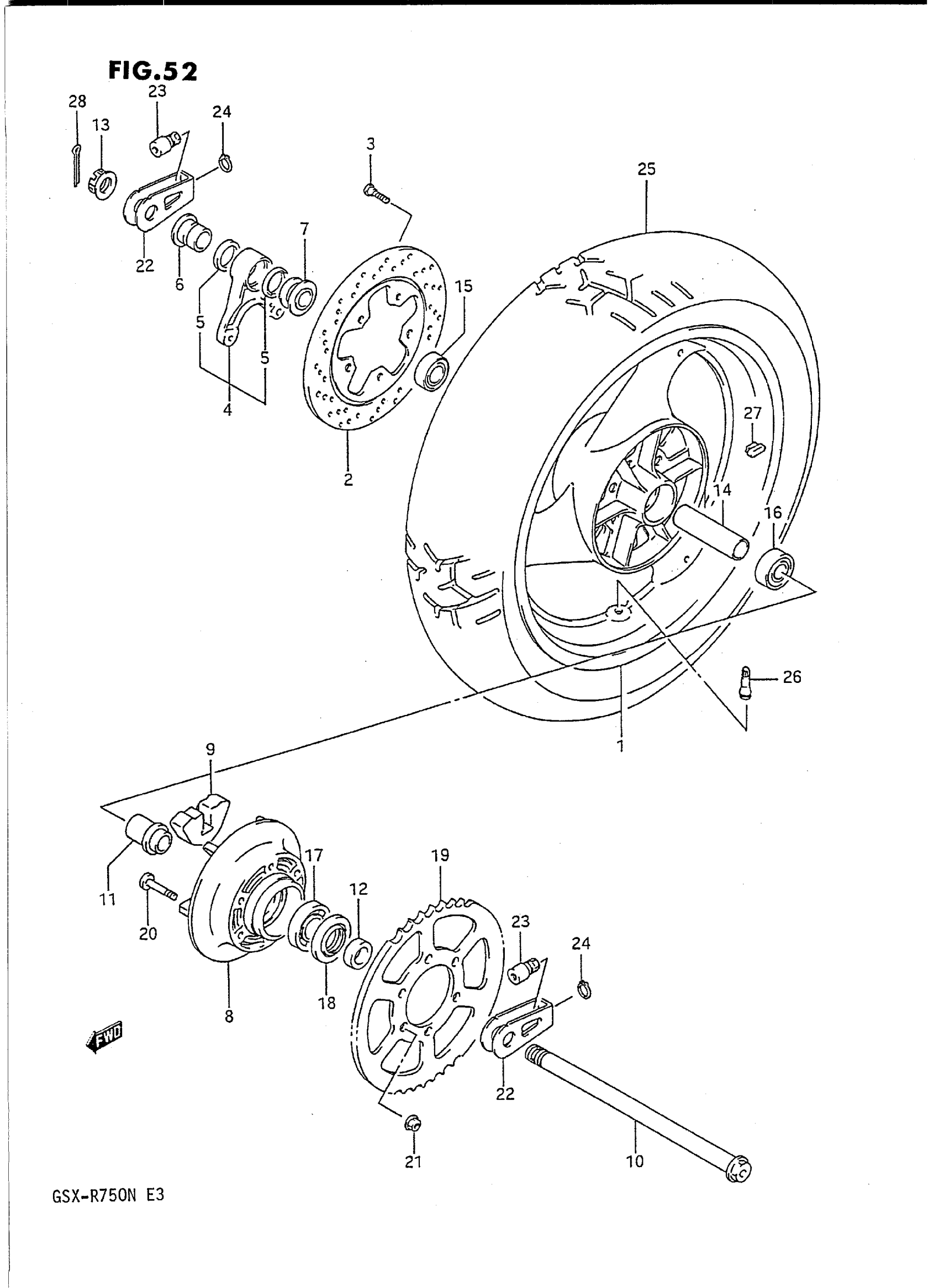

Suzuki GSX-R750N (1992) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (17XMT5.50) WHITE | FOR 3SL

64111-07D00-28W

Unavailable

1

WHEEL, REAR (17XMT5.50) | FOR 05X,3WC

64111-07D00-1DR

Unavailable

1

WHEEL, REAR (17XMT5.50) | FOR L97

64111-07D00-12R

Unavailable

2

DISC, REAR BRAKE

69211-17C00

Unavailable

3

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | Includes Item(s) 5

69720-17C00

Unavailable

5

OIL SEAL

09285-28002

$6.80

6

SPACER

69412-27A00

Unavailable

7

SPACER, RH

64740-48B00

Unavailable

8

DRUM, SPROCKET

64611-40C00

Unavailable

9

SHOCK ABSORBER, DRUM

64651-31001

$11.19

10

AXLE, REAR

64711-40C10

Unavailable

11

RETAINER, DRUM

64733-48B00

$27.45

12

SPACER, LH

64751-40C00

Unavailable

13

NUT

09141-20004

$29.20

14

SPACER, BEARING

64731-40C00

$25.75

15

BEARING, RH

09262-20114

$32.57

16

BEARING, LH

09262-20042

$23.28

17

BEARING, DRUM

09262-25073

$25.92

18

SEAL,OIL (35X62X8)

09285-35001

$10.19

19

NO DESCRIPTION AVAILABLE This part replaces 64511-07D10.

64511-07D11

Unavailable

20

BOLT

09119-10060

$4.25

21

NUT

08319-31107

$2.73

22

ADJUSTER, CHAIN

61411-40C00

$14.85

23

NUT, CHAIN ADJUSTER This part replaces 61415-40C00.

61415-22D00

$25.60

24

CIRCLIP This part replaces 08331-31136.

08331-3113A

$2.23

25

TIRE, REAR (170/60 ZR17)

65110-18D00

Unavailable

26

VALVE

43130-24A00

$8.85

27

BALANCER (10G)

55411-00A00

$1.49

27

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

27

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

28

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
