1992 Suzuki GSX-R750N Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1992 Suzuki GSX-R750N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

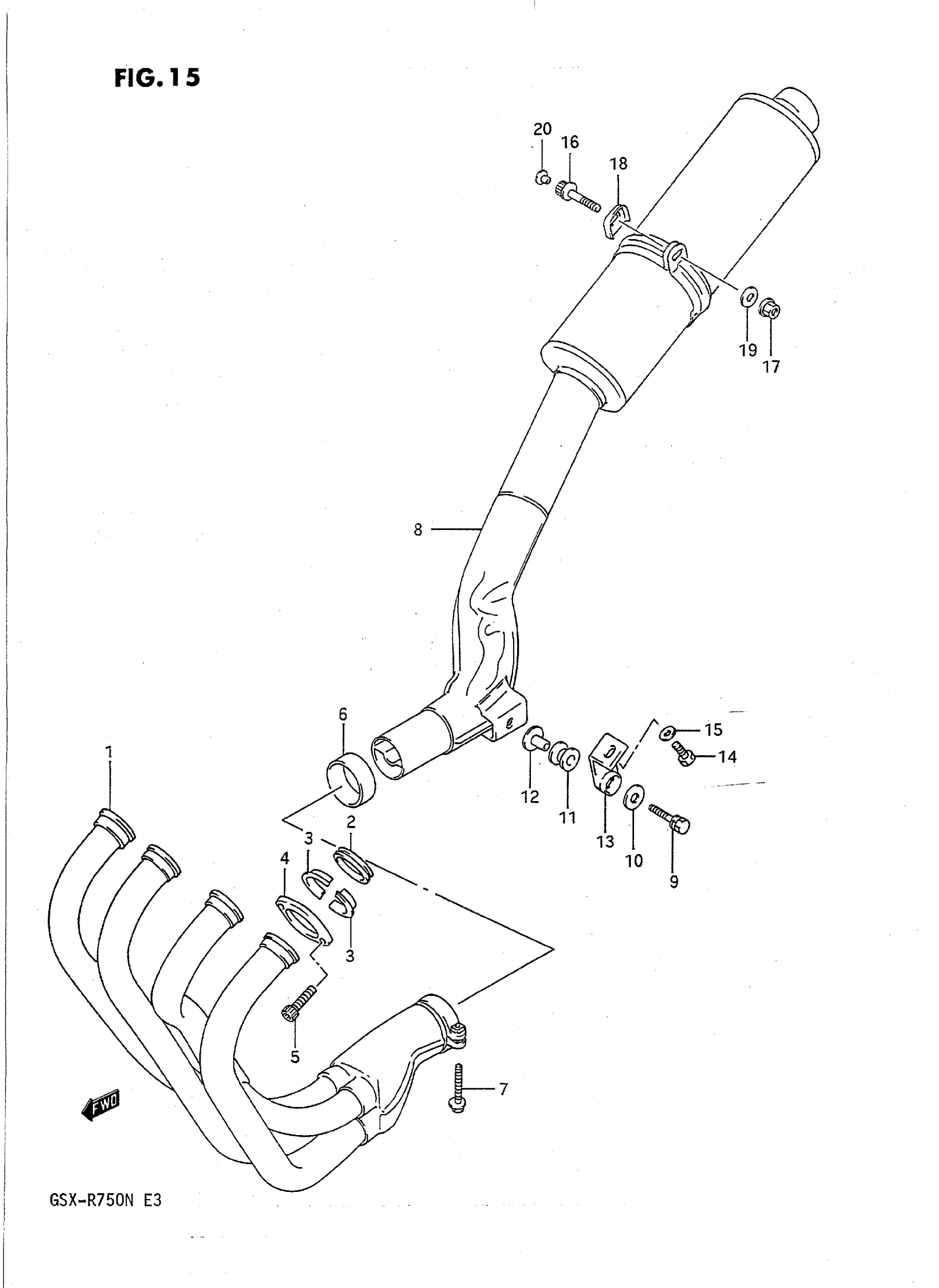

1992 Suzuki GSX-R750N Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST ASSY

14100-17D50-H01

1
Out of stock

2

.GASKET,EXHAUST

14181-18C00

4
Out of stock

3

PLATE, EXHAUST PIPE

14155-27A00

8

$3.65

In stock

4

CLAMP, EXHAUST PIPE

14182-27A00

4
Out of stock

5

8

$3.26

In stock

6

CONNECTOR, MUFFLER

14771-07D00

1
Out of stock

7

BOLT, MUF SPRT,RR This part replaces 01517-08457.

01550-08457

1
Out of stock

8

NO DESCRIPTION AVAILABLE This part replaces 14305-17D30-H01.

14305-17D11-H01

1
Out of stock

9

1

$7.60

In stock

10

1

$3.30

In stock

11

CUSHION This part replaces 09320-12038.

09320-12033

1
Out of stock

12

SPACER

09180-08157

1

$7.75

In stock

13

DAMPER, FRONT

14770-07D01

1
Out of stock

14

1

$4.53

In stock

15

1

$2.27

In stock

16

BOLT

07120-10407

1

$6.38

In stock

17

NUT This part replaces 08316-16105.

08316-1010B

1
Out of stock

18

WASHER, MUFFLER SUPPORT

14412-17D00

1
Out of stock

20

CAP, BOLT

09250-08012

1

$2.35

In stock
