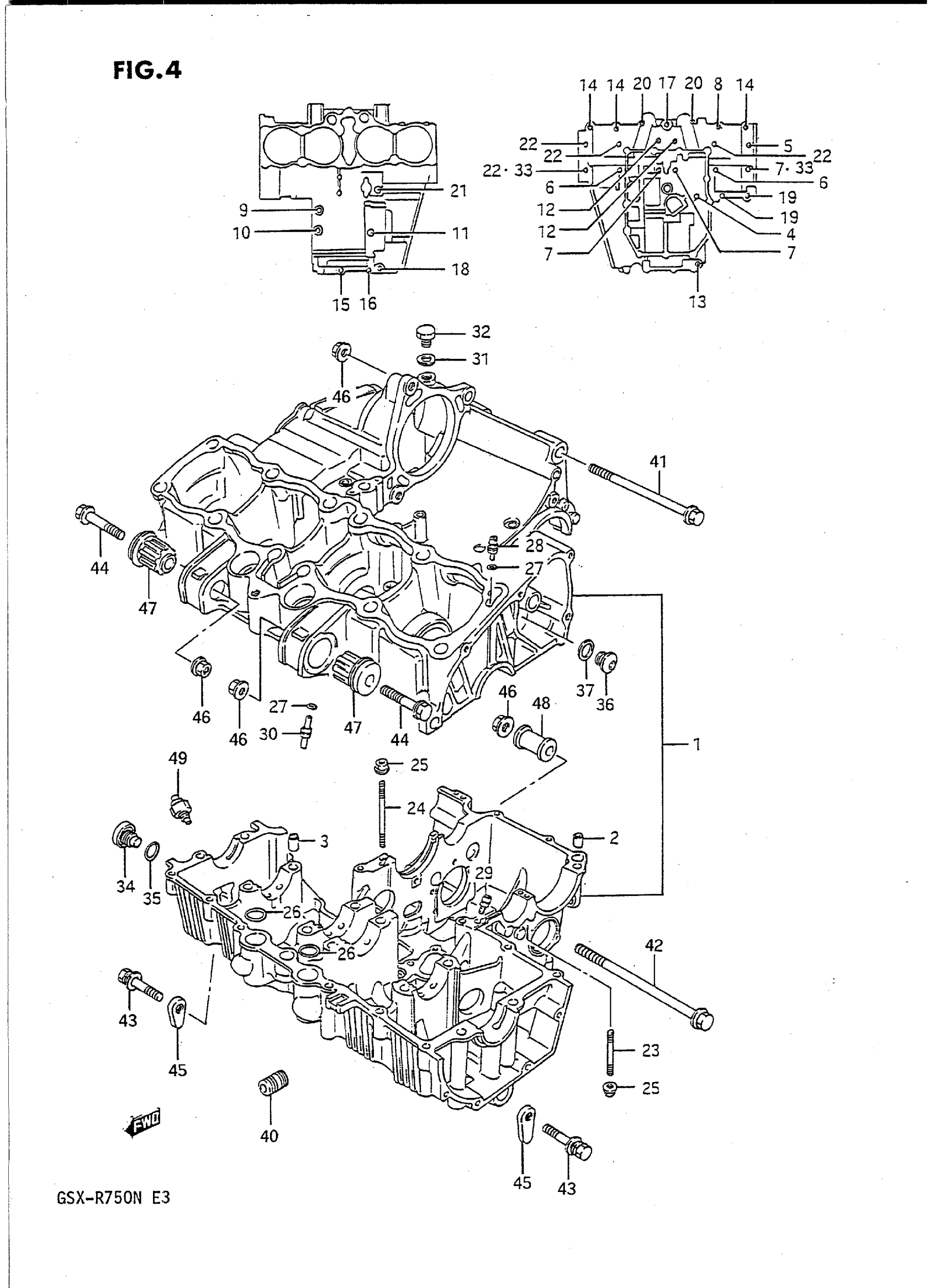

Find the part on the Crankcase diagram for your 1992 Suzuki GSX-R750N, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Suzuki GSX-R750N Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 39 This part replaces 11301-27810.

11301-27811

1
Out of stock

2

PIN

09206-13004

2
Out of stock

3

2

$6.85

In stock

4

BOLT (6X105)

09103-06067

1

$3.00

In stock

5

BOLT (8X105) This part replaces 09103-08261.

09103-08179

1
Out of stock

6

BOLT (8X125)

09103-08182

2

$6.22

In stock

7

BOLT (8X115)

09103-08264

3
Out of stock

8

BOLT This part replaces 01517-06354.

01550-0635A

1
Out of stock

9

1

$3.35

In stock

10

1

$4.45

In stock

11

1

$3.74

In stock

12

2

$5.73

In stock

13

1

$4.53

In stock

14

BOLT This part replaces 01517-06354.

01550-0635A

3
Out of stock

15

BOLT This part replaces 01517-06404.

01550-0640A

1
Out of stock

16

1

$2.84

In stock

17

BOLT This part replaces 01517-06505.

01550-0650A

1
Out of stock

18

1

$3.02

In stock

19

2

$3.58

In stock

20

2

$4.62

In stock

21

1

$3.80

In stock

22

4

$4.20

In stock

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

1
Out of stock

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

1
Out of stock

25

2

$2.18

In stock

26

O RING (D:2.5,ID:21)

09280-21008

2
Out of stock

27

O RING

09280-04004

6

$2.03

In stock

28

JET, OIL GALLERY HEAD

09493-14002

2
Out of stock

29

2

$18.33

In stock

30

JET, OIL GALLERY PISTON

09493-80008

4
Out of stock

31

GASKET, HOLE PLUG

09168-12002

1
Out of stock

32

PLUG, HOLE

09247-12103

1

$2.92

In stock

33

GASKET

09168-08021

2

$2.78

In stock

34

1

$10.83

In stock

35

O RING

09280-17002

1
Out of stock

36

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

37

GASKET

09168-14004

1

$1.96

In stock

39

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.8 (B-11)

12228-43411

1
Out of stock

39

BEARING, THRUST LH (BLACK)

12228-43412

1
Out of stock

39

BEARING, THRUST LH (BLUE)

12228-43413

1
Out of stock

39

1

$11.37

In stock

39

BEARING, THRUST LH (YELLOW)

12228-43415

1
Out of stock

39

BEARING, THRUST LH (WHITE)

12228-43416

1
Out of stock

40

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

1
Out of stock

41

1

$9.33

In stock

42

BOLT (10X175)

09103-10151

1
Out of stock

43

2

$5.83

In stock

44

2

$3.86

In stock

45

NUT

09159-10020

2

$5.63

In stock

46

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

4
Out of stock

47

BUSH

11681-27A00

2
Out of stock

48

1

$17.40

In stock

49

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33200.

37820-33D11

1
Out of stock
