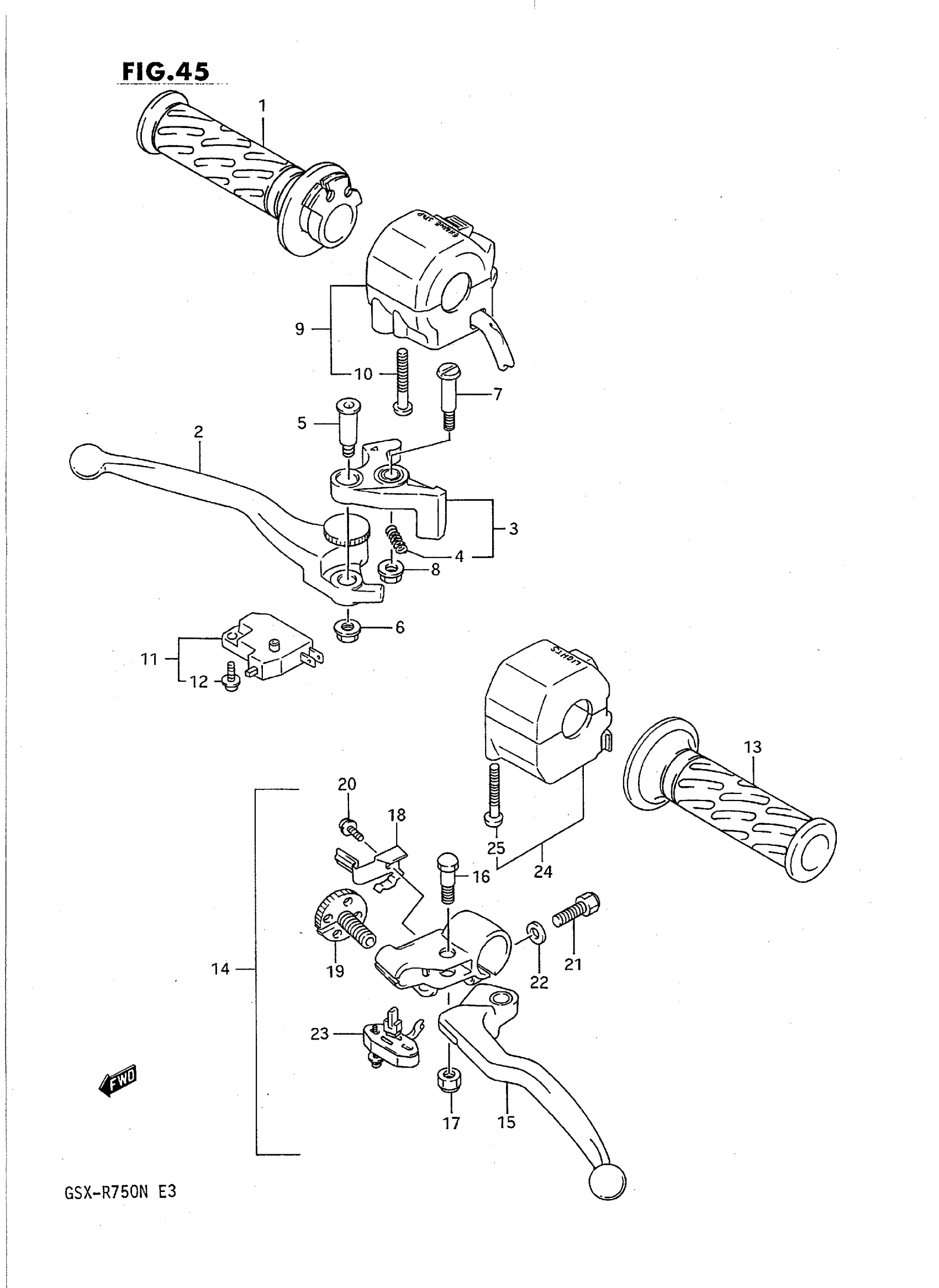

Suzuki GSX-R750N (1992) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-22D01.

57110-22D03

$29.21

2

LEVER, ADJUST

57420-32C00

$28.92

3

KNOCKER | Includes Item(s) 4 This part replaces 57430-40C00.

57430-40C10

$59.25

4

SPRING

57438-32C00

$5.67

5

BOLT, LEVER This part replaces 57437-32C00.

57437-32C01

$8.60

6

NUT This part replaces 08319-31065.

08319-3106A

$2.03

7

BOLT, LEVER

57431-17C00

$7.11

8

NUT This part replaces 08316-16064.

08316-1006B

$2.50

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 This part replaces 37200-41C30.

37200-41C31

Unavailable

10

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

$38.46

12

SCREW

57465-17C00

$2.19

13

GRIP, LH (BLACK) This part replaces 57211-22D00.

57211-22D02-291

$14.55

14

LEVER ASSY, CLUTCH | Includes Item(s) 15 - 23

57500-18D10

Unavailable

15

LEVER, CLUTCH

57620-27A31

$22.77

16

BOLT

57431-49110

$6.31

17

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

18

ADJUSTER, CABLE

57644-20A02

Unavailable

19

.NUT, CABLE ADJUSTER This part replaces 57641-20A03.

57641-33E21

$35.94

20

SCREW This part replaces 02112-74085.

02112-7408B

$2.34

21

BOLT

01204-06204

$2.72

22

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

23

SWITCH, CLUTCH

57560-18D10

Unavailable

24

NO DESCRIPTION AVAILABLE | Includes Item(s) 25 This part replaces 37400-18D10.

37400-18D12

Unavailable

25

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26
