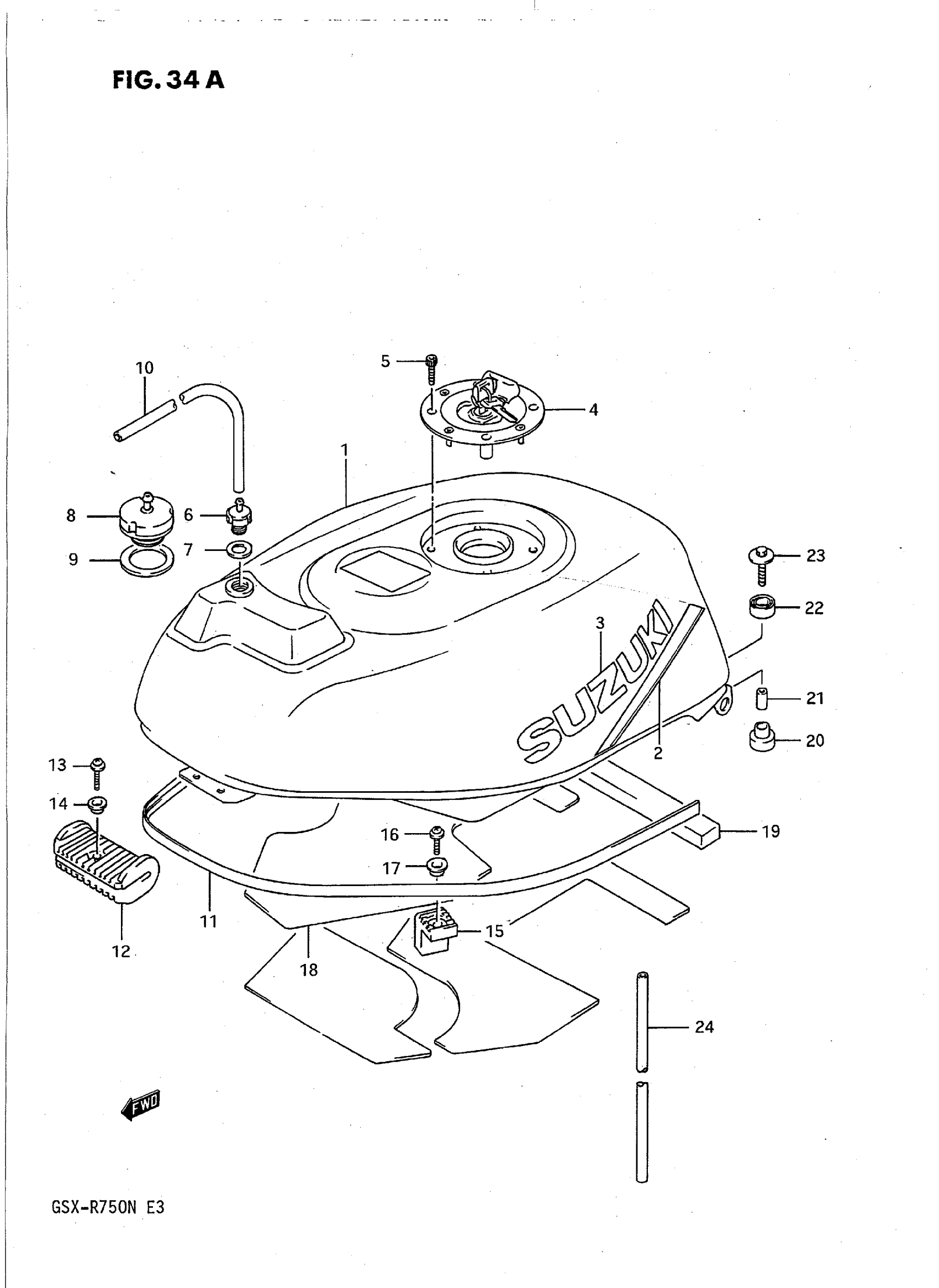

Suzuki GSX-R750N (1992) FUEL TANK (MODEL N) Diagram

NO DESCRIPTION AVAILABLE This part replaces 44100-18D90-L97.

44110-17D00-Y2D

Unavailable

TANK ASSY, FUEL | CALIFORNIA ONLY

49100-18D00-L97

Unavailable

TANK ASSY, FUEL

44100-18D90-3WC

Unavailable

TANK ASSY, FUEL | CALIFORNIA ONLY; Includes Item(s) 2 - 3

49100-18D00-3WC

Unavailable

TAPE SET | FOR L97

68110-18D10-M02

Unavailable

TAPE SET | DOR 3WC

68110-18D10-M03

Unavailable

EMBLEM (WHITE) | FOR L97 This part replaces 68111-12C00-0JW.

68111-12C30-0JW

$21.47

EMBLEM | FOR 2WC This part replaces 68111-12C00-33J.

68111-12C30-33J

Unavailable

CAP SET, FUEL TANK This part replaces 44201-01851.

44201-01852

Unavailable

BOLT

09106-05017

$2.83

PLUG, BREATHER | OTHER THAN CALIFORNIA

44240-06B10

$38.33

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

PLUG, BREATHER | CALIFORNIA ONLY

44240-28A01

Unavailable

GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

CUSHION, FRONT

44511-41C00

Unavailable

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

WASHER

09169-05012

$2.38

CUSHION, SIDE

44545-41C00

Unavailable

SCREW

02142-06207

$1.49

WASHER This part replaces 09169-06051.

09169-06055

$2.27

HEAT SHIELD, FUEL TANK

44191-17D00

Unavailable

HEAT SHIELD, FUEL TANK NO.1 | CALIFORNIA ONLY

44191-17D10

Unavailable

HEAT SHIELD, FUEL TANK NO.2 | CALIFORNIA ONLY

44191-40C10

Unavailable

CUSHION, AIR SEAL This part replaces 44151-17C00.

13841-17E00

Unavailable

CUSHION, REAR LOWER

09320-10038

$2.61

SPACER This part replaces 09180-06072.

09180-06271

$2.35

CUSHION, REAR UPPER

09320-14017

$2.35

BOLT

09116-06097

$2.54

HOSE This part replaces 09352-50823-00A.

09352-50005-00B

$13.93
