Description

Price

1

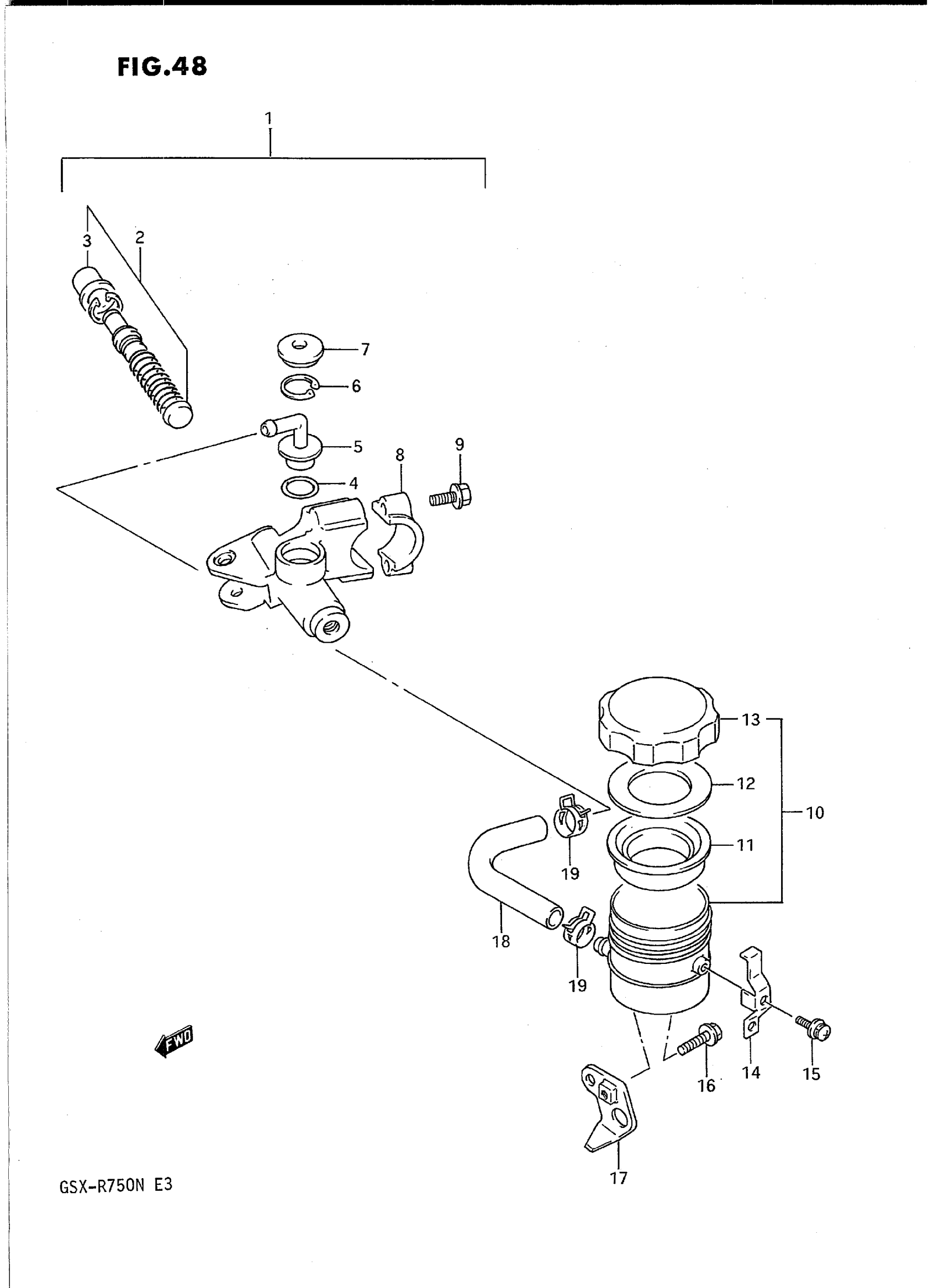

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-32C00.

59600-32C01

$292.48

2

PISTON/CUP SET

59600-45860

$39.48

3

BOOT

59666-44300

$5.80

4

O RING

69686-34200

$2.93

5

CONNECTOR

59672-17C00

$9.31

6

CIRCLIP

69674-00B20

$3.97

7

COVER, DUST

59673-17C00

$8.65

8

.HOLDER

59671-36500

$12.21

9

BOLT HOLDER SET This part replaces 59675-17C00.

59675-19C00

$4.02

10

TANK ASSY, RESERVOIR | Includes Item(s) 11 - 13

59740-07D00

$60.40

11

DIAPHRAGM

59667-18441

$10.28

12

PLATE

59668-18441

$4.52

13

CAP

59669-07D00

$31.72

14

PLATE, TANK CAP

59743-17C00

$9.31

15

.SCREW This part replaces 02112-74128.

02112-7412A

$2.12

16

BOLT This part replaces 01517-06167.

01550-06167

$2.30

17

BRACKET, TANK

59750-17C00

Unavailable

18

HOSE, TANK

59731-17D00
