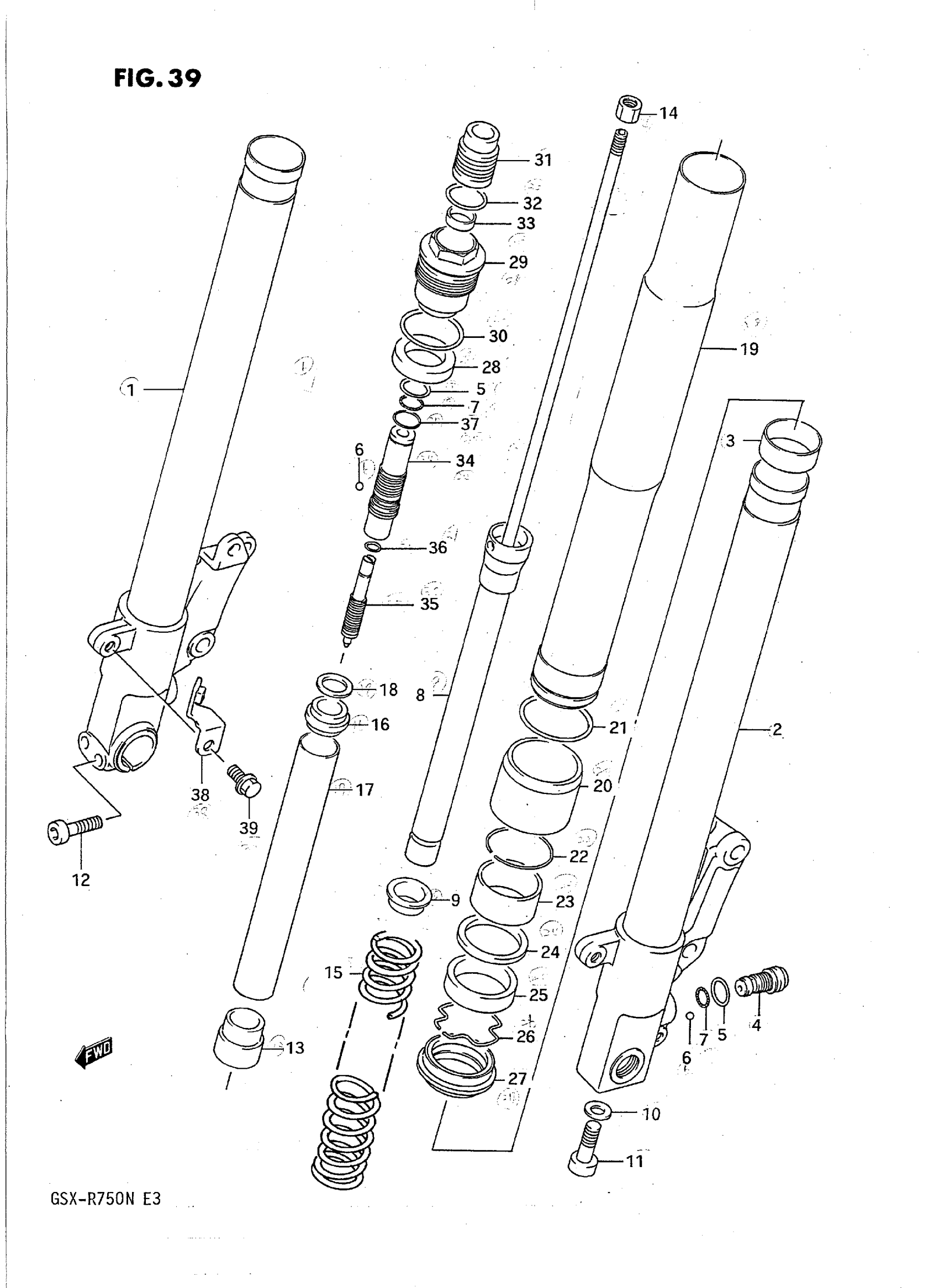

Suzuki GSX-R750N (1992) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, RH

51103-18D10

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 37

51104-18D10

Unavailable

1

TUBE, INNER RH

51110-18D10

Unavailable

2

TUBE, INNER LH

51120-18D10

Unavailable

3

BUSH, SLIDE

51121-48B31

$25.75

4

PIECE, ADJUSTER LOWER

51830-07D00

Unavailable

5

O RING (D:2.5,ID:13.8) This part replaces 51834-17C00.

09280-14011

$4.77

6

BOLL

51835-17C00

$3.28

7

EXPANDER

51836-17C00

Unavailable

8

DAMPER, FRONT

52110-18D10

Unavailable

9

PLATE, CENTERRING

51815-22D00

Unavailable

10

WASHER (10X15X1.5)

09161-10009

$1.84

11

BOLT

51147-17C00

$22.65

12

BOLT This part replaces 07110-08508.

07130-0850A

$4.17

13

.JOINT,SPRING LWR

51172-22D00

Unavailable

14

NUT, LOD

51827-17C00

Unavailable

15

SPRING

51171-18D10

Unavailable

16

.GUIDE,SPRING UPR

51175-22D00

$20.33

17

SPACER, SPRING

51176-18D10

Unavailable

18

WASHER, JOINT UPPER | MODEL M This part replaces 51172-34A00.

51172-34370

$3.37

18

JOINT, SPRING UPPER | MODEL N

51172-34370

$3.37

19

TUBE, OUTER

51131-18D10

Unavailable

20

CASE, OIL SEAL

51135-17D00

Unavailable

21

O RING, CASE

51117-08D00

Unavailable

22

RING, SNAP

51156-08D00

Unavailable

23

BUSH, GUIDE

51152-48B31

$18.90

24

SPACER, SEAL

51168-38B00

$6.49

25

SEAL, OIL

51153-08D00

$22.96

26

RING, STOPPER

51556-38B00

$7.22

27

.DUST SEAL This part replaces 51173-08D00.

51173-15D00

$23.19

28

RUBBER, SEAT

51193-17D00

$14.20

29

BOLT, FORK

51189-18D00

Unavailable

30

O RING, FORK BOLT

51187-08D00

$6.17

31

ADJUSTER, SPRING

51828-17D00

Unavailable

32

O RING, ADJUSTER OUTER

51199-17D00

$6.27

33

PLATE, SPRING ADJUSTER This part replaces 51823-17D00.

51823-22D30

$36.65

34

CASE, ADJUSTER

51829-17D00

Unavailable

35

PIECE, ADJUSTER UPPER

51821-17D00

Unavailable

36

O RING This part replaces 51824-17C00.

09280-03002

$1.49

37

RING, STOPPER

51837-17D00

$6.38

38

PLATE,FRONT FEN This part replaces 51590-17D10.

51590-17D1V

Unavailable

38

PLATE,FRONT FEN This part replaces 51580-17D10.

51580-17D1V

Unavailable

39

BOLT This part replaces 01517-08128.

01550-08127

$2.85
