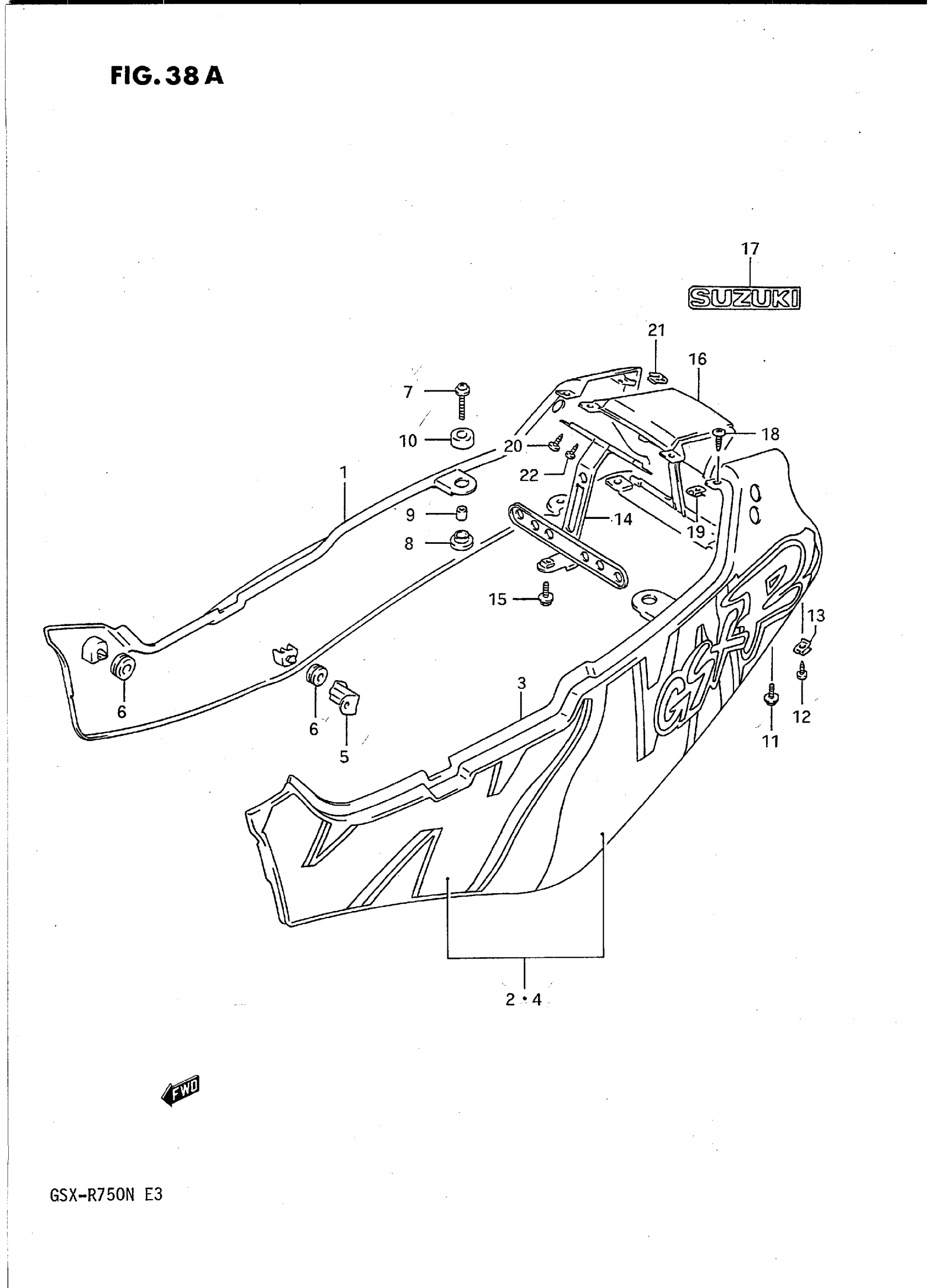

Suzuki GSX-R750N (1992) FRAME COVER (MODEL N) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR L97

47110-18D50-33J

Unavailable

1

COVER, FRAME RH (BLACK) | FOR 3WC; Includes Item(s) 2 - 2

47110-18D50-36X

Unavailable

2

TAPE, RH | FOR 33J

68130-18D00-1LZ

Unavailable

2

TAPE, RH | FOR 36X

68130-18D00-1MA

Unavailable

3

COVER, FRAME LH (BLACK) | FOR L97

47210-18D50-33J

Unavailable

3

COVER, FRAME LH (BLACK) | FOR 3WC; Includes Item(s) 4 - 4

47210-18D50-36X

Unavailable

4

TAPE, LH | FOR 33J

68140-18D00-1LZ

Unavailable

4

TAPE, LH | FOR 36X

68140-18D00-1MA

Unavailable

5

BRACKET,FRAME C This part replaces 43815-41C00.

43815-41C0V

Unavailable

6

CUSHION, SIDE

09320-08018

$3.04

7

SCREW This part replaces 09136-06062.

09136-06017

$2.59

8

CUSHION, CENTER LOWER

45326-17C00

$5.09

9

SPACER This part replaces 09180-06143.

09180-06286

$2.50

10

CUSHION, CENTER UPPER

45149-04A00

$3.59

11

SCREW, CENTER

09136-06083

$2.19

12

SCREW This part replaces 03141-14125.

03141-1412B

$2.83

13

NUT

09148-04024

$2.23

14

BRACKET, TAIL LAMP

47410-41C00

Unavailable

15

BOLT This part replaces 09116-06064.

09116-06109

$3.00

16

COVER, FRAME CENTER (BLACK) | FOR L97

47310-41C20-0JX

Unavailable

16

COVER, FRAME CENTER (BLACK) | FOR 3WC; Includes Item(s) 17 - 17

47310-41C20-33J

Unavailable

17

EMBLEM,"SUZUKI" | FOR 0JX This part replaces 68166-31300-0JW.

68166-31310-13L

$4.52

17

EMBLEM,"SUZUKI" | FOR 33J This part replaces 68166-31300-13L.

68166-31310-13L

$4.52

18

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

19

NUT

09148-05019

$1.86

20

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

21

NUT

09148-05038

$1.97

22

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49
