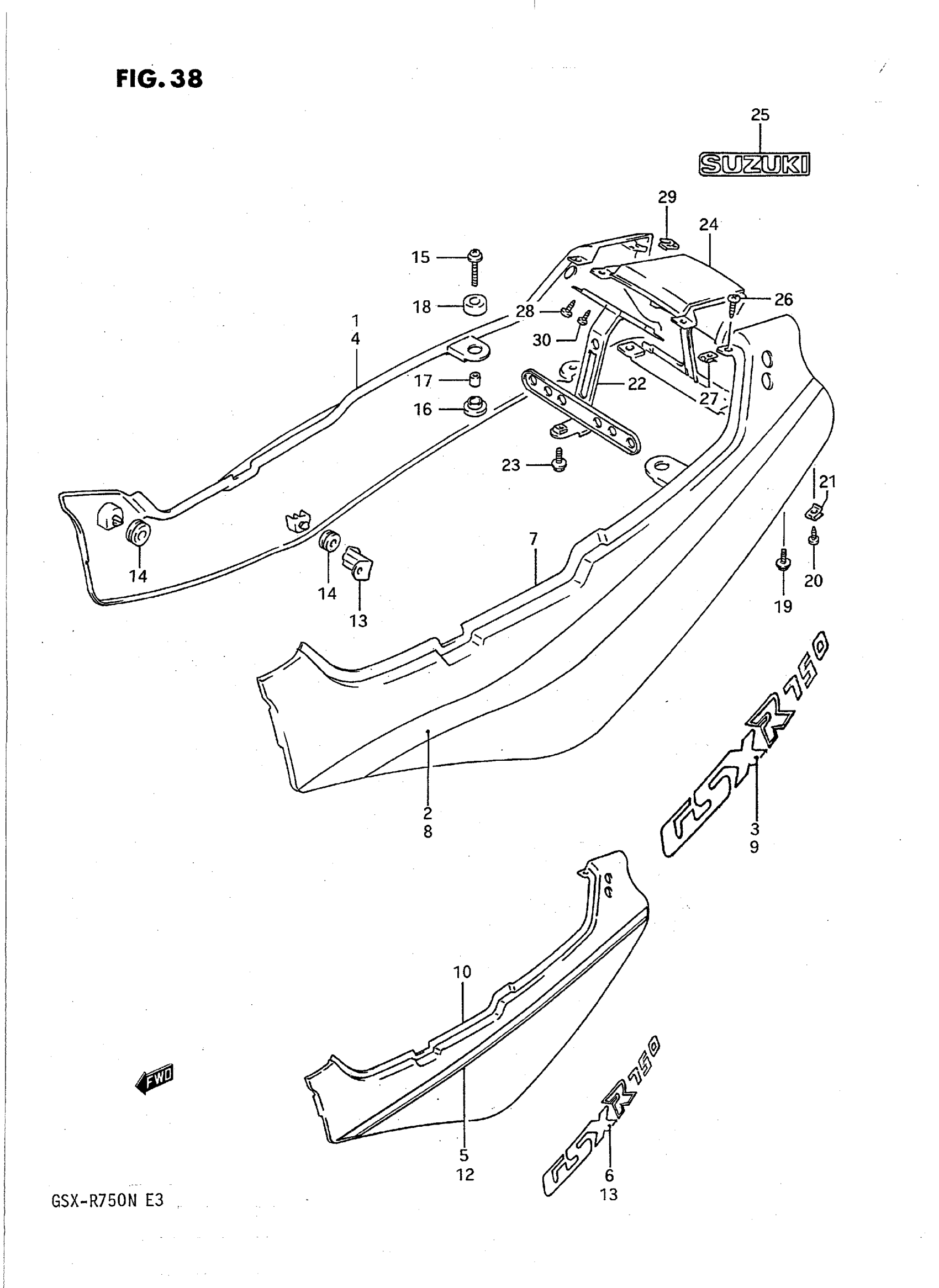

Suzuki GSX-R750N (1992) FRAME COVER (MODEL M) Diagram

#

Description
Price

1

COVER, FRAME RH | Includes Item(s) 2 - 3

47110-18D00-3SL

Unavailable

2

TAPE, RH

68135-18D01-0NE

Unavailable

3

EMBLEM

68131-18D00-H04

Unavailable

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 - 6 This part replaces 47110-18D10-05X.

47110-18D10-3CG

Unavailable

5

TAPE, RH

68135-18D11-H17

Unavailable

6

EMBLEM

68131-18D00-H15

Unavailable

7

COVER, FRAME LH | Includes Item(s) 8 - 9

47210-18D00-3SL

Unavailable

8

TAPE, LH

68145-18D01-0NE

Unavailable

9

EMBLEM

68131-18D00-H04

Unavailable

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 12 This part replaces 47210-18D10-05X.

47210-18D10-3CG

Unavailable

11

TAPE, LH

68145-18D11-H17

Unavailable

12

EMBLEM

68131-18D00-H15

Unavailable

13

BRACKET,FRAME C This part replaces 43815-41C00.

43815-41C0V

Unavailable

14

CUSHION, SIDE

09320-08018

$3.04

15

SCREW This part replaces 09136-06062.

09136-06017

$2.59

16

CUSHION, CENTER LOWER

45326-17C00

$5.09

17

SPACER This part replaces 09180-06143.

09180-06286

$2.50

18

CUSHION, CENTER UPPER

45149-04A00

$3.59

19

SCREW, CENTER

09136-06083

$2.19

20

SCREW This part replaces 03142-04125.

03142-0412B

$2.39

21

NUT

09148-04024

$2.23

22

BRACKET, TAIL LAMP

47410-41C00

Unavailable

23

BOLT This part replaces 09116-06064.

09116-06109

$3.00

24

COVER, FRAME CENTER | FOR 3SL

47310-41C00-0JW

Unavailable

24

COVER, FRAME CENTER (BLACK) | FOR 05X; Includes Item(s) 25 - 25 This part replaces 47310-41C00-33J.

47310-41C20-36X

Unavailable

25

EMBLEM (BLUE) | FOR 0JW

68166-31300-0NE

Unavailable

25

EMBLEM,"SUZUKI" | FOR 33J This part replaces 68166-31300-13L.

68166-31310-13L

$4.52

26

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

27

NUT

09148-05019

$1.86

28

SCREW This part replaces 03241-15125.

03241-1512B

$2.39

29

NUT

09148-05038

$1.97

30

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49
