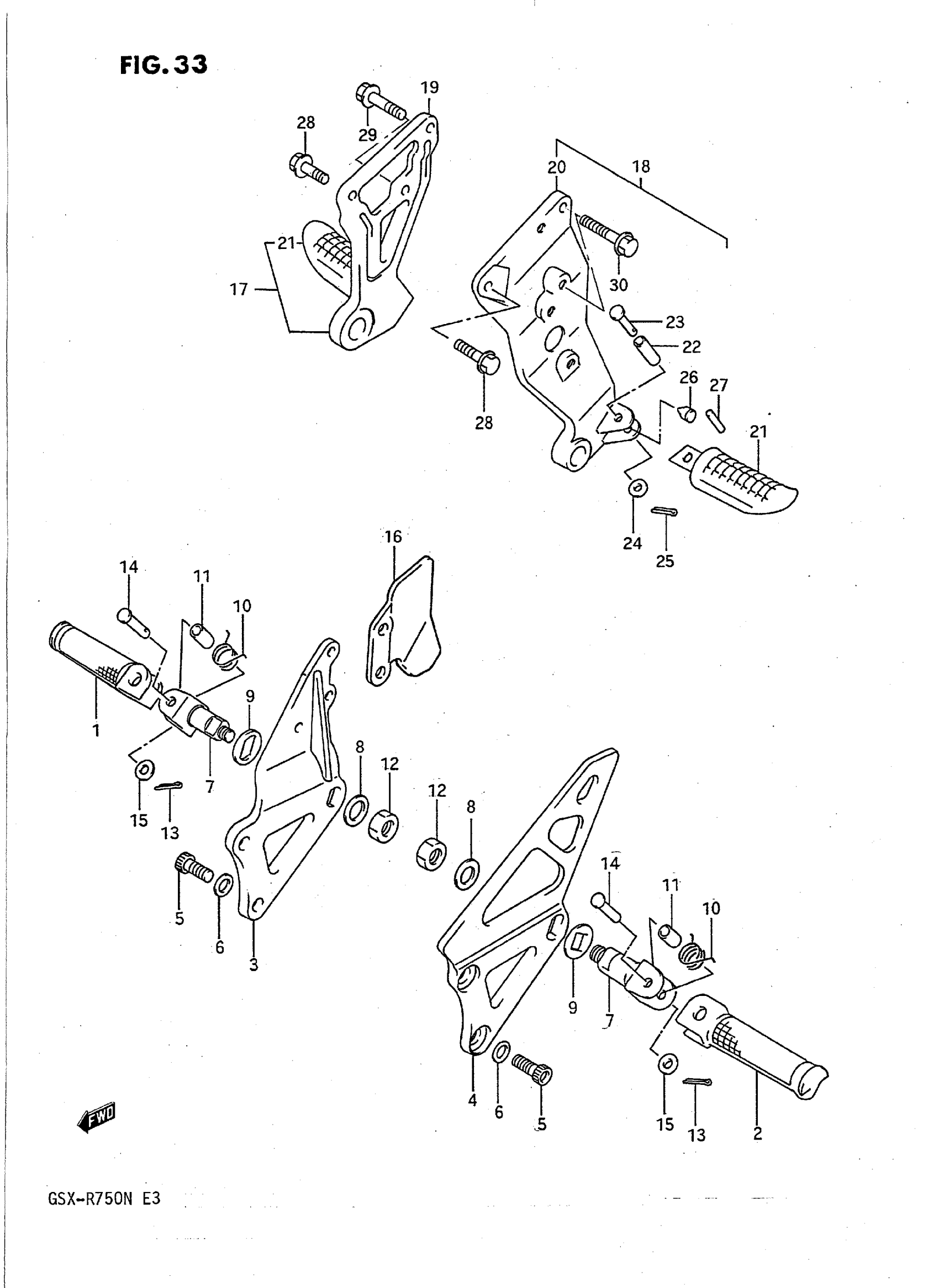

Suzuki GSX-R750N (1992) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43511-17C02

Unavailable

2

BAR, FRONT FOOTREST LH

43521-17C02

Unavailable

3

BRACKET, FOOTREST RH

43511-17D01

Unavailable

4

BRACKET, FOOTREST LH

43522-17D01

Unavailable

5

BOLT This part replaces 43529-17D00.

09139-10004

$5.00

5

BOLT , 10X20 This part replaces 43529-17D10.

09106-10050

$5.08

6

WASHER

09164-10010

$4.83

7

BOSS, FRONT FOOTREST

43530-17C01

Unavailable

8

PLATE, FRONT FOOTREST

43213-17C01

Unavailable

9

WASHER, FRONT FOOTREST

43214-17C01

Unavailable

10

SPRING This part replaces 09448-19020.

09448-18022

$3.79

11

SPACER, FRONT FOOTREST

09180-08149

$5.58

12

NUT, FIXED DRIVE FACE This part replaces 08310-22127.

09140-12039

$3.05

13

PIN This part replaces 04111-25158.

04111-2515A

$1.49

14

PIN

09200-08057

$2.36

15

WASHER

09160-08043

$1.83

16

NO DESCRIPTION AVAILABLE This part replaces 43586-40C01.

43586-40C02

Unavailable

17

FOOTREST ASSY, PILLION RH

43600-18D00

Unavailable

18

FOOTREST ASSY, PILLION LH | Includes Item(s) 19 - 27

43700-18D00

Unavailable

19

FOOTREST ASSY, PILLION RH This part replaces 43810-18D00.

43600-18D00

Unavailable

20

FOOTREST ASSY, PILLION LH This part replaces 43821-18D00.

43700-18D00

Unavailable

21

BAR, RH

43611-32C00

$54.48

21

BAR, LH

43621-32C00

Unavailable

22

SPACER

09180-08149

$5.58

23

PIN This part replaces 09200-08035.

09200-08064

$6.13

24

WASHER This part replaces 08322-11088.

08322-01087

$2.13

25

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

26

CUSHION, HOLDER

43691-17C00

$6.38

27

ROLLER

43612-17D00

Unavailable

28

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

29

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

30

BOLT This part replaces 01517-08405.

01550-08407

$3.42
