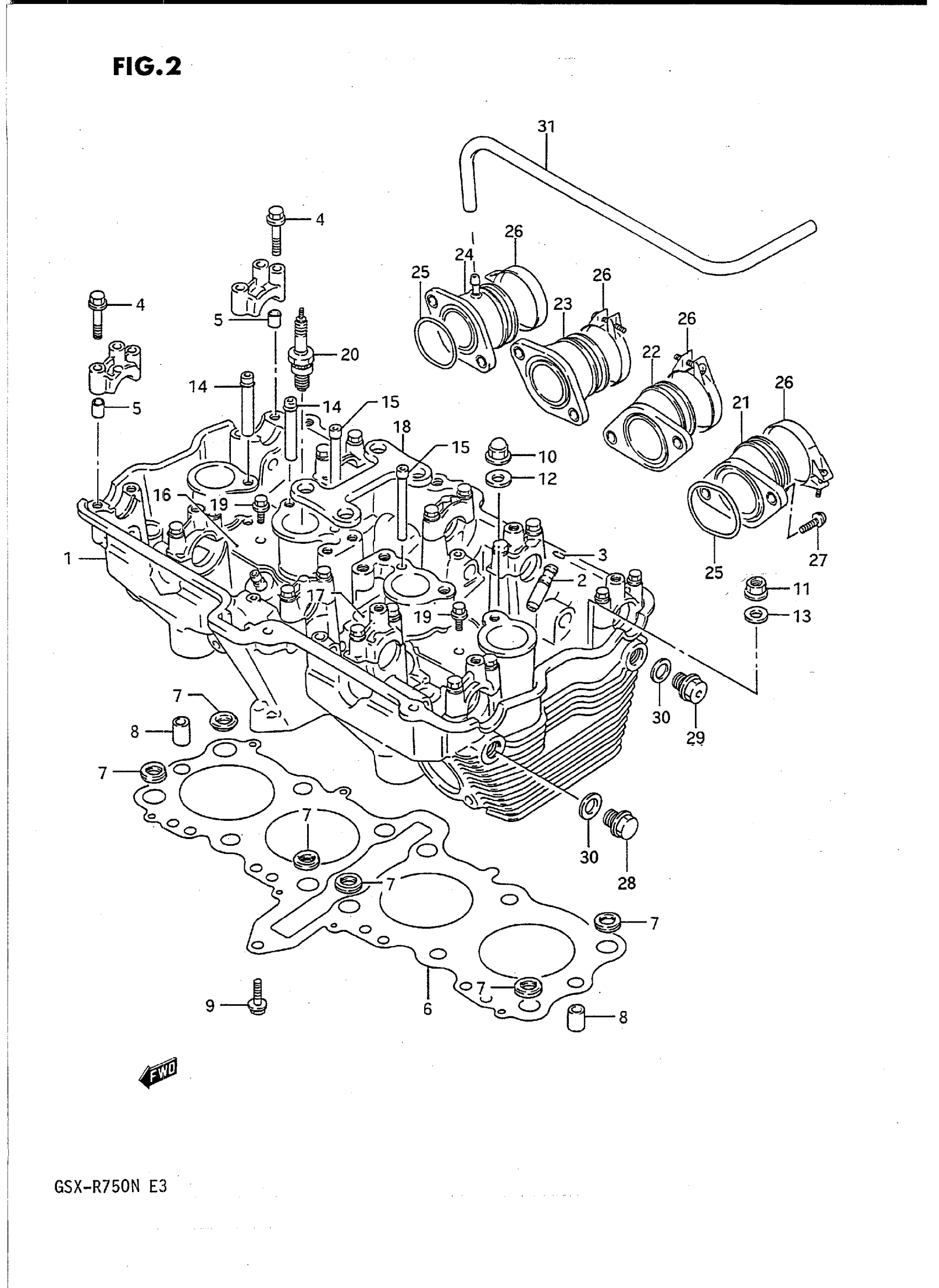

Suzuki GSX-R750N (1992) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-18D00

Unavailable

1

HEAD ASSY, CYLINDER | CALIFORNIA ONLY; Includes Item(s) 2 - 5

11100-18D10

Unavailable

2

GUIDE, VALVE

11116-18D70

Unavailable

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET, CYLINDER HEAD This part replaces 11141-07D01.

11141-17D10

$121.55

6

GASKET, CYLINDER HEAD | CALIFORNIA ONLY

11141-17D10

$121.55

7

O RING

11143-06B00

$6.28

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

10

NUT

09159-10069

$7.05

11

NUT This part replaces 08316-16106.

08316-1010B

$2.66

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

14

PIPE, OIL NO.1,2

11131-27A00

$6.38

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE,RH

11135-27A02

Unavailable

17

PLATE, OIL PIPE,LH

11136-27A02

Unavailable

18

PLATE, HEAD REINFORCEMENT

11138-40C00

Unavailable

19

BOLT This part replaces 01517-06128.

01550-06127

$2.30

20

SPARK PLUG (NGK,CR10EK)

09482-00462

$12.50

20

SPARK PLUG (ND,U31ETR)

09482-00463

$15.42

20

SPARK PLUG (NGK,CR9EK) | OPT

09482-00410

$11.59

20

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

21

NO DESCRIPTION AVAILABLE This part replaces 13110-17D00.

13101-17D01

Unavailable

21

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13110-17D10.

13101-17D10

Unavailable

22

PIPE,INTAKE #2 This part replaces 13120-17D00.

13102-17D00

Unavailable

22

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13120-17D10.

13102-17D10

Unavailable

23

PIPE,INTAKE NO. This part replaces 13130-17D00.

13103-17D01

Unavailable

23

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13130-17D10.

13103-17D10

Unavailable

24

PIPE,INTAKE #4 This part replaces 13140-17D00.

13104-17D00

Unavailable

24

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 13140-17D10.

13104-17D10

Unavailable

25

O RING

09280-42003

$8.65

26

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

27

SCREW This part replaces 02152-06165.

02112-0616A

$1.49

28

PLUG, CYLINDER HEAD EX

09247-14034

Unavailable

28

PLUG, CYLINDER HEAD EX | CALIFORNIA ONLY

09247-14032

$5.28

29

PLUG, CYLINDER HEAD IN

09247-14032

$5.28

30

GASKET

09168-14004

$1.83

31

HOSE,5X10X600 | OTHER THAN CALIFORNIA This part replaces 09352-50823-300.

44421-13ER0

$10.06
