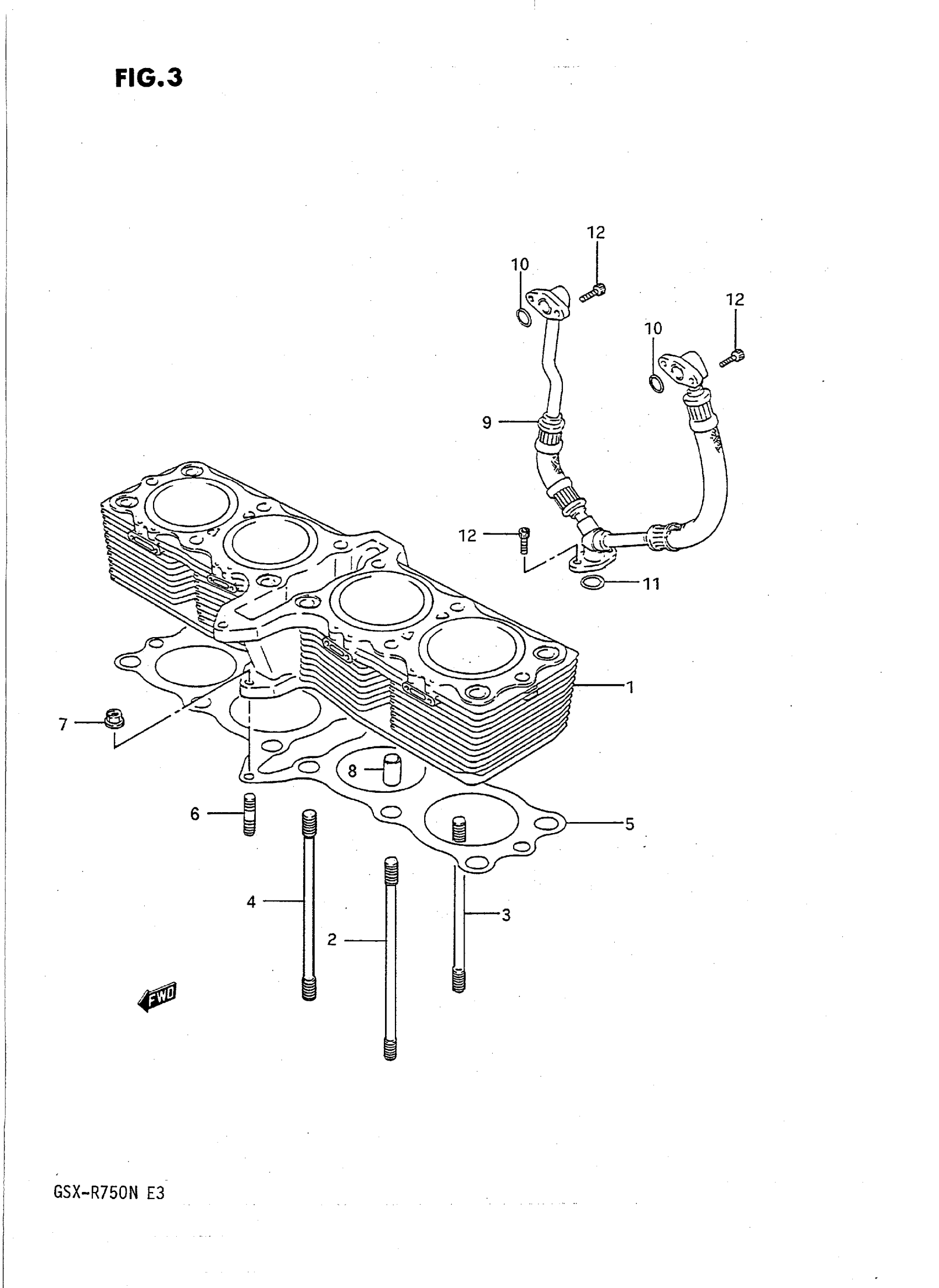

Suzuki GSX-R750N (1992) CYLINDER Diagram

#

Description
Price

1

CYLINDER This part replaces 11210-07D00.

11210-07D10

Unavailable

1

CYLINDER | CALIFORNIA ONLY

11210-17D10

Unavailable

2

STUD BOLT (10X150) This part replaces 09108-10109.

09108-10144

$11.10

3

STUD BOLT (10X143)

09108-10073

$11.73

4

STUD BOLT (10X157) This part replaces 09108-10110.

09108-10099

$15.90

5

GASKET, CYLINDER This part replaces 11241-27A02.

11241-27A04

$17.36

6

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

7

NUT This part replaces 08316-16064.

08316-1006B

$2.50

8

PIN This part replaces 09206-13006.

09206-13017

$7.61

9

HOSE, OIL HEAD COOLER This part replaces 11328-27A03.

11328-27A04

Unavailable

10

O RING

09280-14011

$4.77

11

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

12

BOLT This part replaces 07110-06165.

07130-0616B

$2.39
