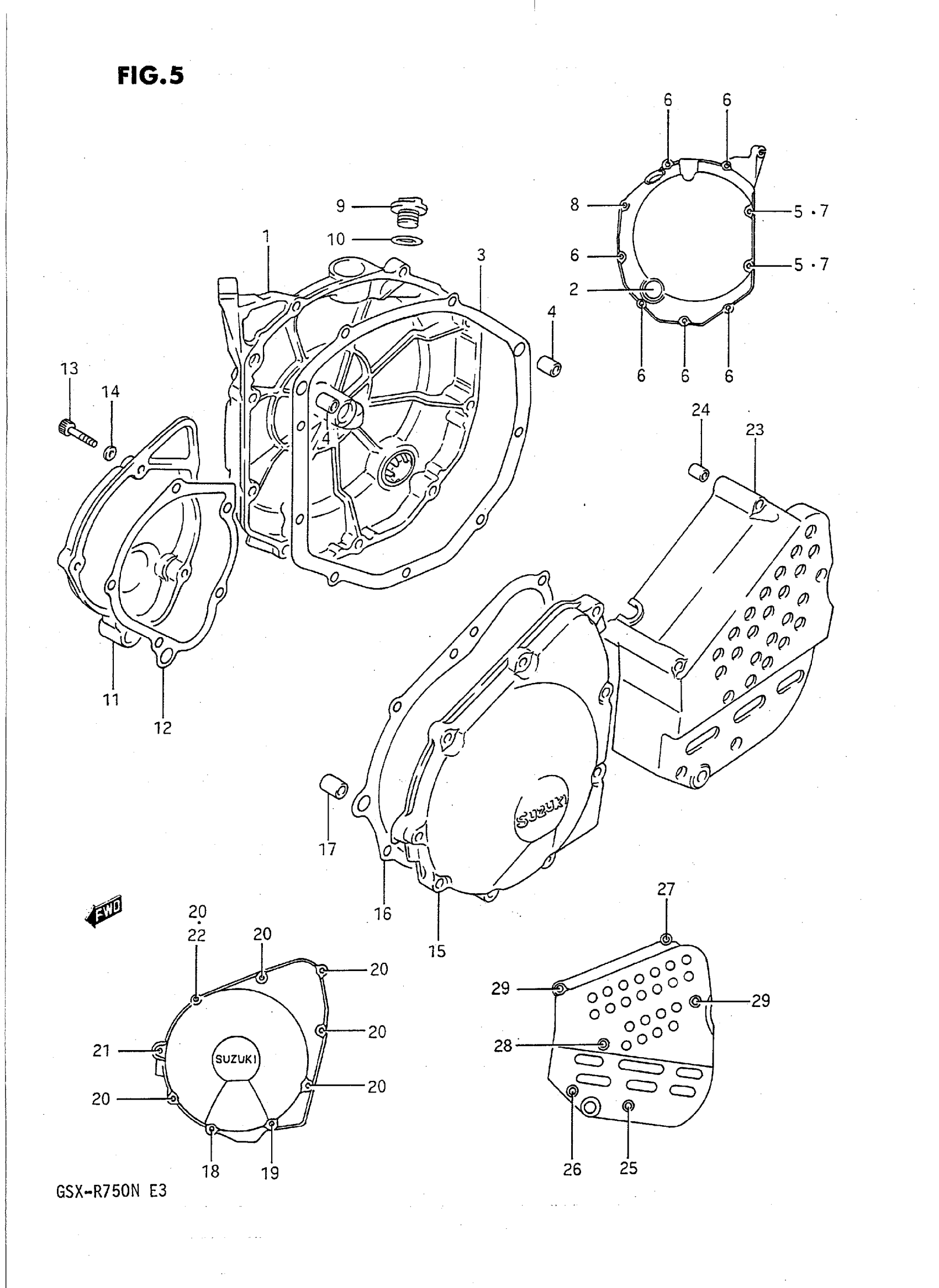

Suzuki GSX-R750N (1992) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-07D00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET, CLUTCH COVER This part replaces 11482-27A10.

11482-27A20

$14.20

4

PIN

04211-09189

$1.65

5

GASKET

09168-06024

$2.20

6

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

7

BOLT This part replaces 07110-06305.

07130-0630B

$3.37

8

BOLT This part replaces 07110-06355.

07130-0635B

$3.37

9

.PLUG This part replaces 09259-20012.

09259-20008-XC0

$7.50

10

O RING

09280-17003

$1.65

11

COVER,SIGNAL GE This part replaces 11381-27A01.

11381-27A03

Unavailable

12

GASKET This part replaces 11491-27A10.

11491-27A30

$8.40

13

BOLT,6X23 This part replaces 09106-06059.

09106-06059-XC0

Unavailable

14

GASKET

09168-06024

$2.20

15

COVER, STARTER GEAR

11351-17C00

Unavailable

16

GASKET, GEAR COVER This part replaces 11483-27A10.

11483-27A20

$11.19

17

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

18

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

19

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

$3.05

20

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

21

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.38

22

GASKET

09168-06024

$2.20

23

COVER, ENGINE SPROCKET

11361-17C02

Unavailable

24

PIN

04211-09129

$1.65

25

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.38

26

BOLT This part replaces 07110-06305.

07130-0630B

$3.37

27

BOLT This part replaces 07110-06505.

07130-0650B

$4.10

28

BOLT This part replaces 07110-06655.

07130-0665B

$3.79

29

BOLT This part replaces 07110-06705.

07130-0670B

$3.89
