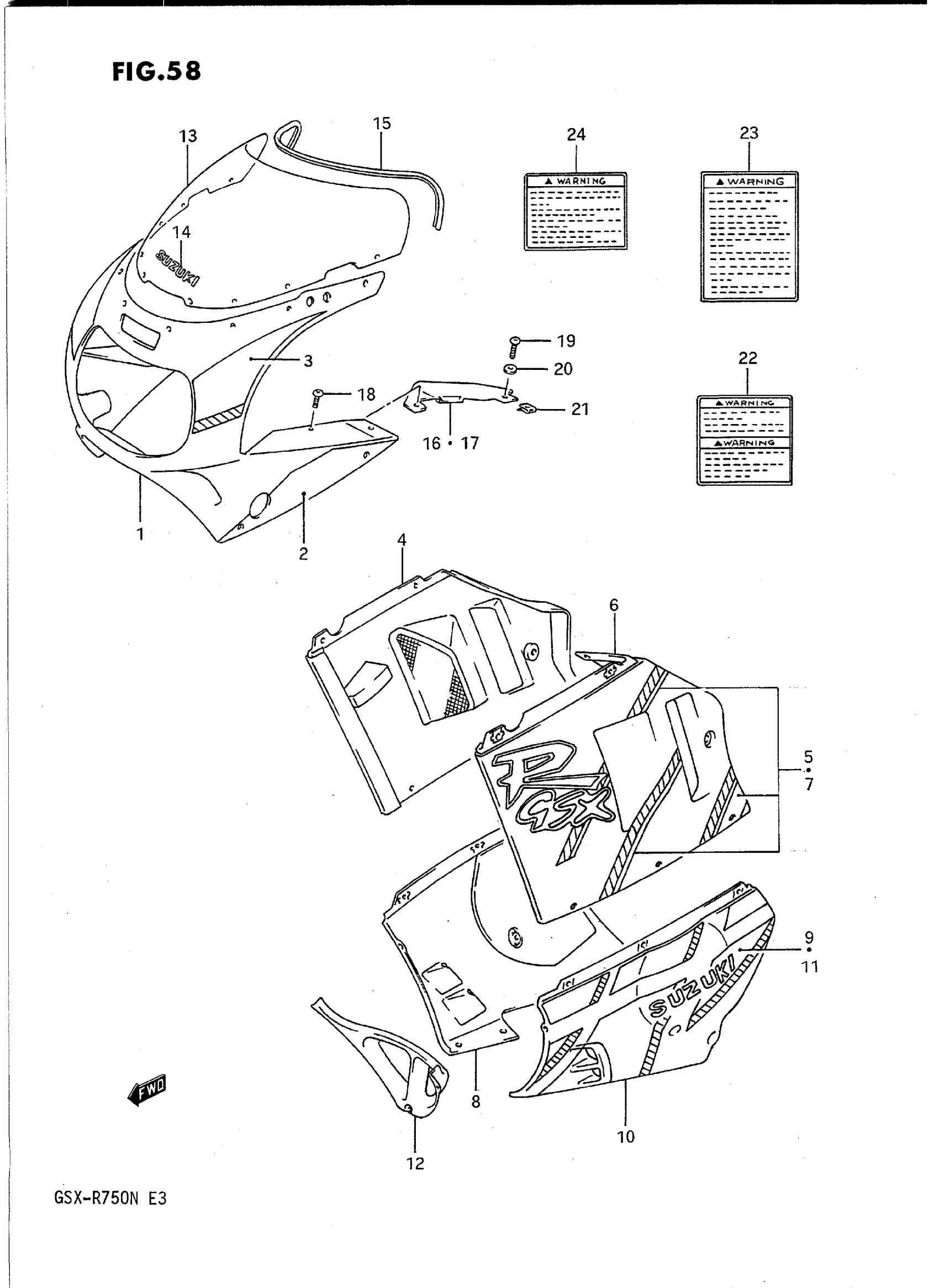

Suzuki GSX-R750N (1992) COWLING BODY (MODEL N 3WC) Diagram

#

Description
Price

1

BODY ASSY, COWLING (BLACK) | Includes Item(s) 2 - 3

94400-18D40-36X

Unavailable

2

TAPE SET, SIDE

68270-18D20-0FP

Unavailable

3

TAPE SET, FRONT

68280-18D20-M05

Unavailable

4

COVER, COWLING SIDE RH (BLACK | Includes Item(s) 5

94430-18D50-36X

Unavailable

5

TAPE SET, SIDE RH

68680-18D20-1MB

Unavailable

6

COVER COMP,COWL | Includes Item(s) 7 This part replaces 94440-18D50-36X.

94440-17D02-13L

Unavailable

7

TAPE SET, SIDE LH

68690-18D20-1MB

Unavailable

8

COWLING, UNDER RH (BLACK) | Includes Item(s) 9

94470-18D40-36X

Unavailable

9

TAPE, UNDER RH

68185-18D00-1MD

Unavailable

10

COWLING, UNDER LH (BLACK) | Includes Item(s) 11

94480-18D40-36X

Unavailable

11

TAPE, UNDER LH

68195-18D00-1MD

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 94498-17D01-33J.

94498-17C02-019

Unavailable

13

SCREEN SET, WIND | Includes Item(s) 14 - 15

94610-18D00-13L

Unavailable

14

EMBLEM, SUZUKI

68182-12C00-13L

Unavailable

15

MOLDING This part replaces 94631-18D00.

94631-18D01

Unavailable

16

PANEL, COWLING UPPER RH

94432-18D00

Unavailable

17

PANEL, COWLING UPPER LH

94442-18D00

Unavailable

18

SCREW (5X10)

09139-05033

$2.20

19

SCREW (5X14)

09139-05025

$2.05

20

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

21

NUT This part replaces 09148-05023.

09148-05021

$1.86

22

LABEL,WARNING S This part replaces 68613-40C11.

68613-21E11

$7.02

23

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

24

LABEL,GENERAL W | TING SET This part replaces 68319-40C00.

68319-33E02

$7.25
