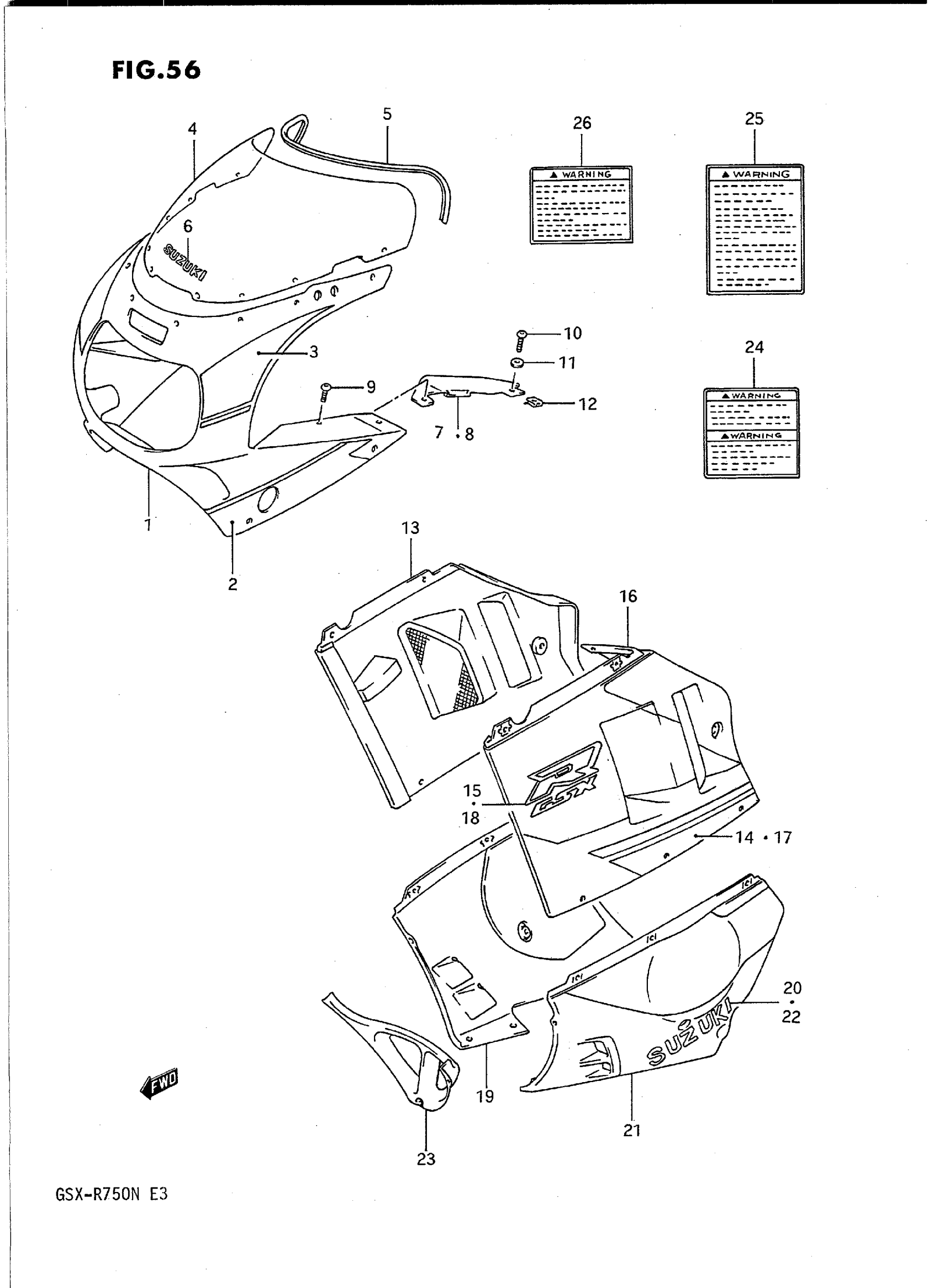

Suzuki GSX-R750N (1992) COWLING BODY (MODEL M 05X) Diagram

#

Description
Price

1

BODY ASSY, COWLING (BLACK) | Includes Item(s) 2 - 3

94400-18D10-36X

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 68270-18D10-H16.

68270-18D11-H16

Unavailable

3

TAPE SET, FRONT

68280-18D10-H16

Unavailable

4

SCREEN SET, WIND | <-94610-18D00; Includes Item(s) 5 - 6

94610-18D00-0JW

Unavailable

5

MOLDING This part replaces 94631-18D00.

94631-18D01

Unavailable

6

EMBLEM, SUZUKI

68182-12C00-0JW

Unavailable

7

PANEL, COWLING UPPER RH

94432-18D00

Unavailable

8

PANEL, COWLING UPPER LH

94442-18D00

Unavailable

9

SCREW (5X10)

09139-05033

$2.20

10

SCREW (5X14)

09139-05025

$2.05

11

WASHER (5.2X11.0X1.0)

09161-05010

$2.45

12

NUT This part replaces 09148-05023.

09148-05021

$1.86

13

NO DESCRIPTION AVAILABLE | Includes Item(s) 14 - 15 This part replaces 94430-18D30-05X.

94430-17D02-13L

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 68685-18D00-H21.

68685-18D01-H21

Unavailable

15

EMBLEM, SIDE

68681-18D10-H61

Unavailable

16

COVER COMP,COWL | Includes Item(s) 17 - 18 This part replaces 94440-18D30-05X.

94440-17D02-13L

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 68695-18D00-H21.

68695-18D01-H21

Unavailable

18

EMBLEM, SIDE

68681-18D10-H61

Unavailable

19

NO DESCRIPTION AVAILABLE | Includes Item(s) 20 This part replaces 94470-18D10-3CH.

94470-17D00-13L

Unavailable

20

EMBLEM,COWLING This part replaces 68111-34320-13L.

68111-34330-13L

Unavailable

21

COWLING, UNDER LH | Includes Item(s) 22

94480-18D10-3CH

Unavailable

22

EMBLEM This part replaces 68181-36A00-13L.

68181-17D00-742

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 94498-17D01-33J.

94498-17C02-019

Unavailable

24

LABEL,WARNING S This part replaces 68613-40C11.

68613-21E11

$7.02

25

LABEL,SCREEN This part replaces 68612-48B00.

68922-14F01

$4.80

26

LABEL,GENERAL W | TINT SET This part replaces 68319-40C00.

68319-33E02

$7.25
