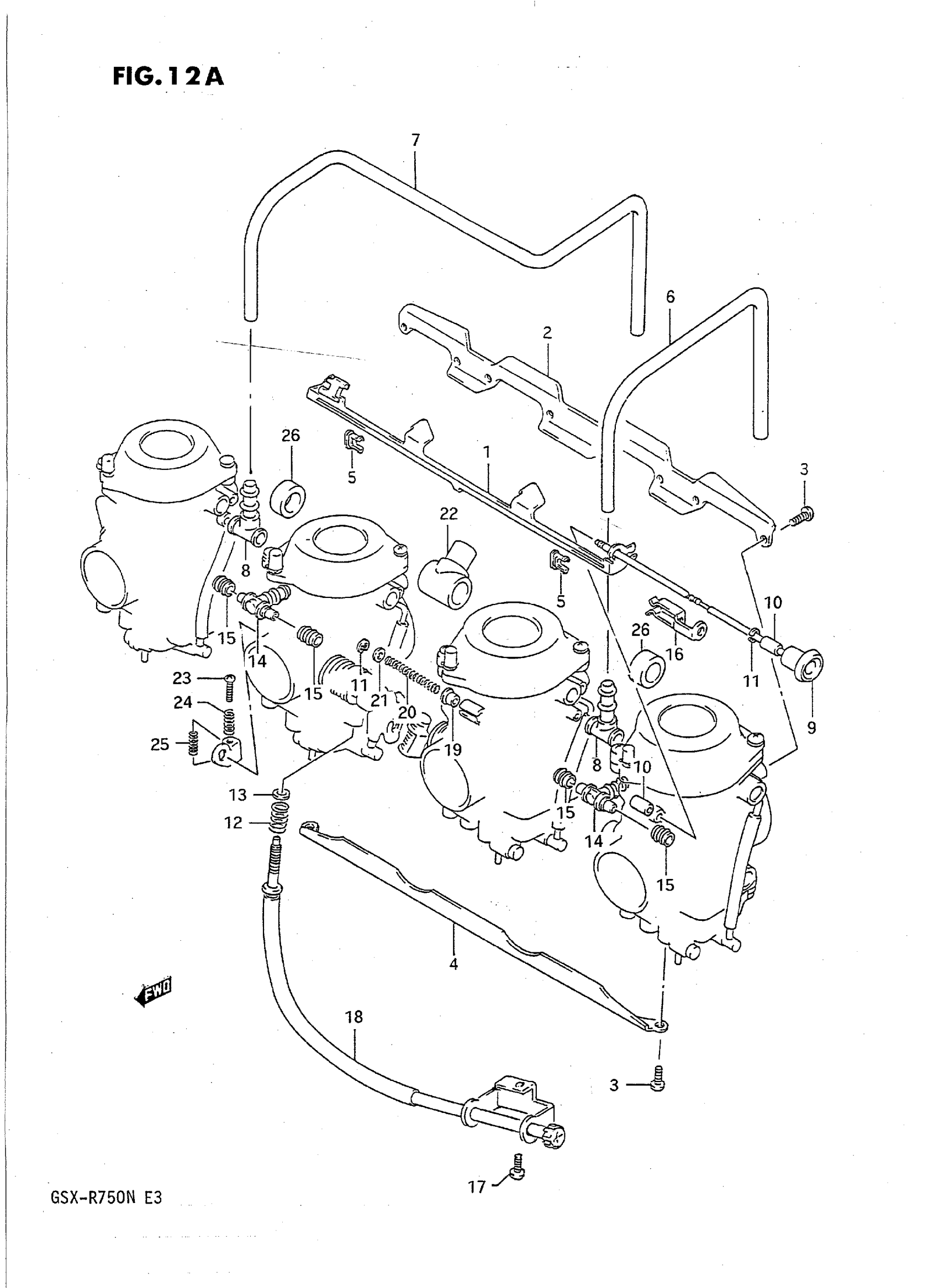

Suzuki GSX-R750N (1992) CARBURETOR FITTINGS (OTHER THAN CALIFORNIA) Diagram

#

Description
Price

1

LEVER, STARTER

13413-17C00

Unavailable

2

PLATE

13628-07D00

Unavailable

3

SCREW This part replaces 02112-05128.

02112-05127

$2.01

4

PLATE

13628-17C00

Unavailable

5

HOLDER

13439-17C00

$14.10

6

HOSE

13683-41C00

Unavailable

7

HOSE

13683-41C10

Unavailable

8

HOSE

13684-20C10

$5.32

9

SHAFT, STARTER

13410-17C00

Unavailable

10

RING

13432-17C00

Unavailable

11

E RING

13415-38300

$1.95

12

SPRING

13375-60A00

$9.50

13

WASHER

13427-38300

$2.17

14

NIPPLE

13685-44B00

$11.19

15

SEAL

13673-44B00

$4.40

16

PLATE, SPRING

13421-17C00

Unavailable

17

SCREW This part replaces 13602-05108.

02112-05107

$1.46

18

ADJUSTER

13279-41C00

Unavailable

19

RING

13557-05A10

Unavailable

20

SPRING

13417-09210

Unavailable

21

WASHER This part replaces 13606-02340.

08322-0104A

$1.99

22

HOSE ASSY

13680-17D00

Unavailable

23

SCREW

13267-44B00

$4.62

24

SPRING

13271-44B00

$3.83

25

SPRING

13268-17C10

$6.08

26

HOSE

13683-17D00

Unavailable
