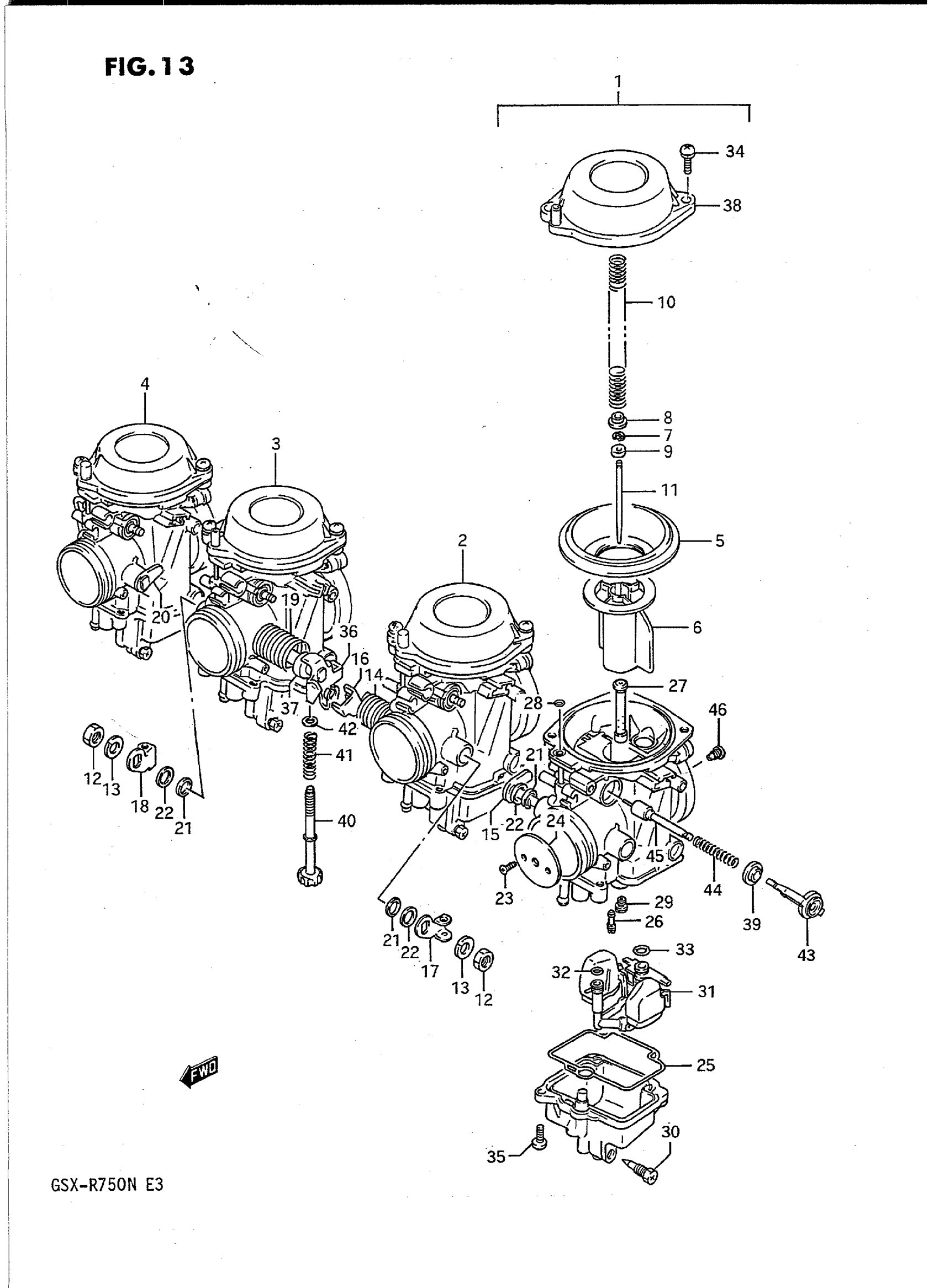

Suzuki GSX-R750N (1992) CARBURETOR (CALIFORNIA ONLY) Diagram

#

Description
Price

1

CARBURETOR ASSY, LH

13201-18D40

Unavailable

2

CARBURETOR ASSY, ML

13202-18D40

Unavailable

3

CARBURETOR ASSY, MR

13203-18D40

Unavailable

4

CARBURETOR ASSY, RH | Includes Item(s) 5 - 46

13204-18D40

Unavailable

5

.DIAPHRAGM This part replaces 13507-17C00.

13507-17C02

$28.31

6

VALVE, PISTON

13501-17C00

Unavailable

7

E RING

13394-31210

$4.57

8

RING

13382-42A00

$4.28

9

RING

13387-44030

$5.74

10

SPRING

13417-42A00

$6.69

11

NEEDLE, JET (5FZ91-1)

13383-17C20

$24.28

12

NUT | MLMR

08310-21086

Unavailable

13

LOCK WASHER | ML,MR This part replaces 08321-31086.

08321-0108A

$1.91

14

SPRING | ML

13573-17C00

Unavailable

15

SHAFT ASSY | LH

13550-17C00

Unavailable

16

SHAFT ASSY | ML

13550-17C10

Unavailable

17

LEVER | ML

13553-17C00

Unavailable

18

LEVER | MR

13553-44B00

Unavailable

19

SPRING | MR

13573-17C10

Unavailable

20

SHAFT ASSY | RH

13550-17C30

Unavailable

21

SEAL | LH,RH:1,ML:MR:2

13556-44B00

$5.00

22

WASHER

13557-47070

$3.53

23

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.80

24

VALVE, THROTTLE (115)

13551-17C10

Unavailable

25

GASKET, FLOAT CHAMBER

13258-44B00

$9.36

26

JET, PILOT (32.5)

09492-32006

$12.30

27

JET, NEEDLE (Y-5)

09494-00598

Unavailable

28

O RING

13509-17C00

$4.28

29

JET, MAIN (112.5)

09491-22015

$9.18

30

SCREW, DRAIN

13247-28A00

$7.20

31

FLOAT ASSY

13250-17C00

Unavailable

32

.O RING

13374-46710

$4.28

33

O RING This part replaces 13374-44080.

13374-35C00

$5.73

34

SCREW This part replaces 13602-34390.

02112-7516A

$2.50

35

SCREW This part replaces 13602-05129.

02112-05127

$2.01

36

SHAFT ASSY | MR

13550-17C20

Unavailable

37

RING | MR

13574-28A00

Unavailable

38

COVER, DIAPHRAGM

13502-17C00

Unavailable

39

CAP,STARTER This part replaces 13418-17C00.

13418-17C01

$4.12

40

ADJUSTER | MR This part replaces 13267-28A00.

13267-14D10

Unavailable

41

SPRING | MR This part replaces 13268-43410.

13375-14D10

$5.90

42

WASHER | MR

13427-38300

$2.17

43

HOLDER

13418-17C10

$15.68

44

SPRING

13417-09110

$7.12

45

PLUNGER ASSY

13411-05320

$30.25

46

JET, AIR (1.3)

09493-26004

$18.50
