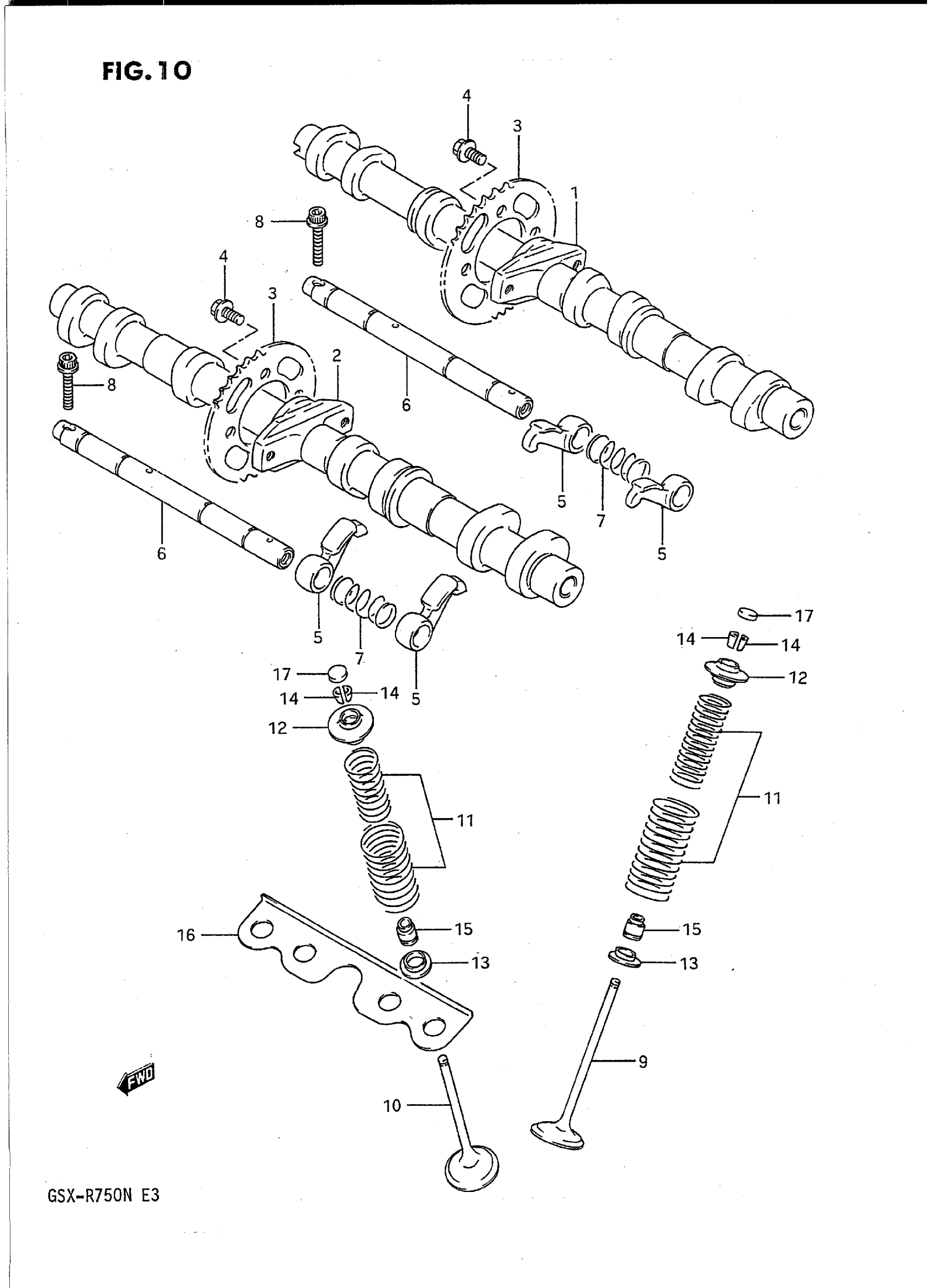

Suzuki GSX-R750N (1992) CAM SHAFT / VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-18D00

Unavailable

2

CAM SHAFT, EXHAUST

12721-18D00

Unavailable

3

SPROCKET, CAM SHAFT

12741-27A00

Unavailable

4

BOLT

09103-07001

$2.43

5

ARM, VALVE LOCKER

12841-33C02

Unavailable

6

SHAFT, VALVE LOCKER ARM This part replaces 12861-41C00.

12861-19E00

Unavailable

7

SPRING This part replaces 09440-14019.

09440-14044

Unavailable

8

BOLT, CENTER This part replaces 07120-06255.

07120-0625A

$2.50

9

VALVE, INTAKE

12911-18D00

Unavailable

10

VALVE, EXHAUST

12912-18D00

Unavailable

11

SPRING SET, VALVE

12920-41C00

Unavailable

12

RETAINER, VALVE SPRING This part replaces 12931-41C00.

12931-41C01

Unavailable

13

SEAT,VALVE SPRING

12933-81400

$5.17

14

COTTER, VALVE

12932-27A00

$2.26

15

OIL SEAL

09289-05011

$6.32

16

PLATE This part replaces 11137-27A01.

11137-27A02

Unavailable

17

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

17

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

17

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

17

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

17

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

17

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

17

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

17

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

17

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

17

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

17

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

17

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

17

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

17

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

17

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

17

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

17

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

17

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

17

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

17

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

17

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

17

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

17

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

17

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

17

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

18

SHIM SET, TAPPET | OPT NOT SHOWNNO.19; Includes Item(s) 19

12800-41810

$1,138.37

19

CASE, TAPPET SHIM | OPT

99000-69471

Unavailable
