Description

Price

1

BATTERY (12V,14AH)

33610-49210

Unavailable

2

HOSE,BATTERY EX | L:700->650 This part replaces 33680-14A00.

33680-16A11

$6.78

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.48

5

WIRE,BATT MINUS This part replaces 33860-17C02.

33860-06B12

$24.85

6

HOLDER, BATTERY

41540-17C02

Unavailable

7

SCREW, BODY COVER UPPER This part replaces 09125-06038.

09125-06055

$2.34

8

WASHER This part replaces 09160-06006.

09160-06084

$1.78

9

SPACER This part replaces 09180-06152.

09180-06262

$2.55

10

CUSHION This part replaces 09320-09021.

09320-09502

$4.17

11

CUSHION

09329-05005

$3.77

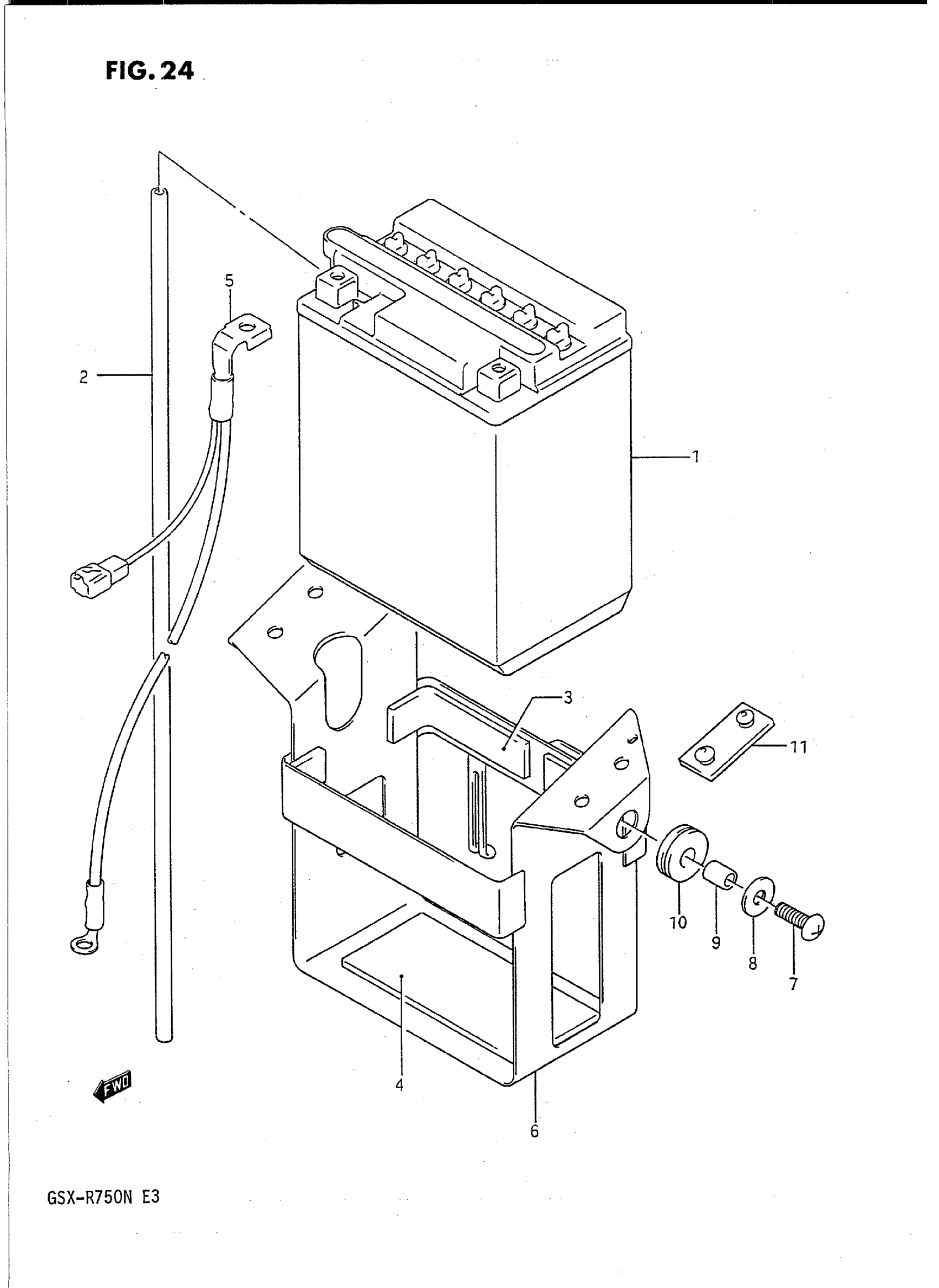

Suzuki GSX-R750N (1992) BATTERY Diagram
