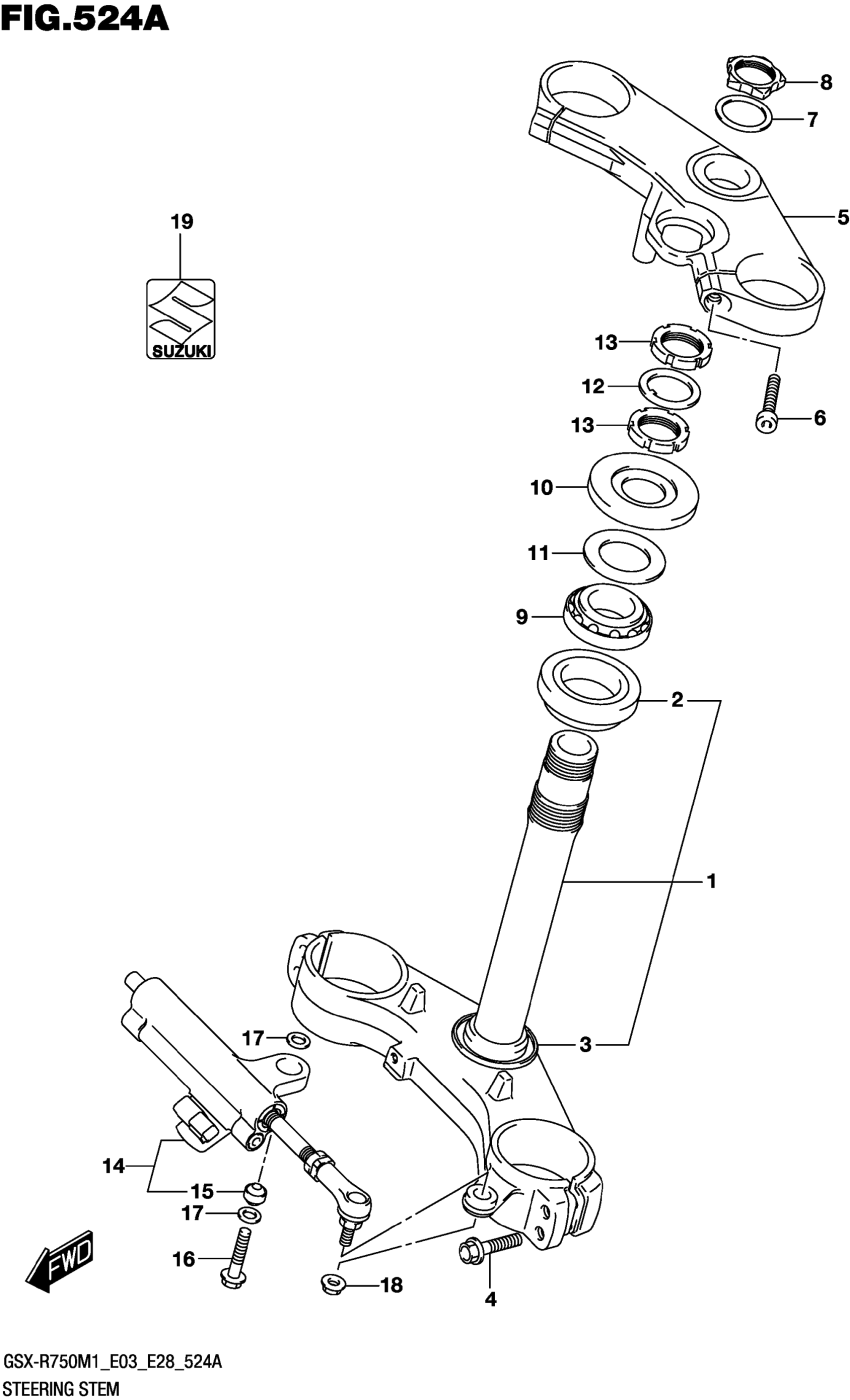

Suzuki GSX-R750M1 (2021) STEERING STEM Diagram

#

Description
Price

1

STEM,STEERING

51410-01H10

$777.82

2

.BEARING (30X55X17)

09267-30010

$43.41

3

.SEAL,STEERING LWR (30.1X56X4 | 4)

51644-12C00

$8.65

4

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.11

5

HEAD,STEERING STEM

51311-01H00

$468.83

6

BOLT,HOLDER (8X25)

51321-27E30

$4.68

7

WASHER,STEM HEAD

51354-01H00

$7.06

8

NUT,STEM HEAD

51353-01H00

$32.73

9

.BEARING (30X55X17)

09267-30010

$43.41

10

COVER,STEERING UPR

51643-41G00

$8.20

11

.SEAL,STEERING LWR (30.1X56X4 | )

51644-12C00

$8.65

12

WASHER,STEERING STEM

51641-33E00

$5.67

13

NUT,STEERING STEM

51631-33E00

$21.64

14

DAMPER ASSY,STEERING

51750-21H10

$1,742.92

15

.BEARING (8X17.5X11)

09269-08003

$46.80

16

BOLT (8X35)

09103-08391

$2.53

17

SEAL,PILLOW BALL,DUST

64339-14101

$7.49

18

NUT

08319-3108A

$2.31

19

EMBLEM,S

68281-47HA0

$7.11
