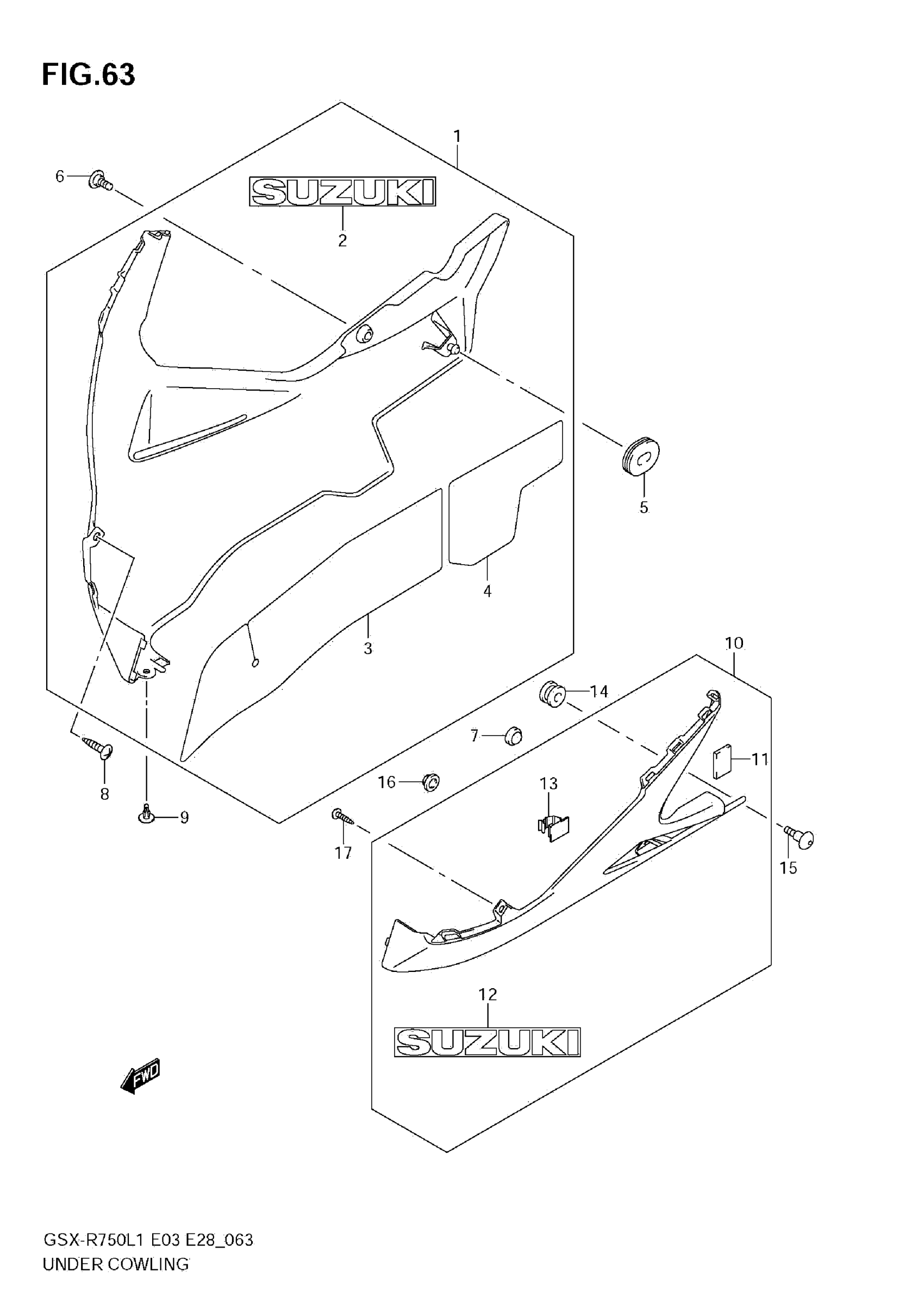

Suzuki GSX-R750L1 (2011) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (BLUE) | FOR GLR

94470-14J00-YUA

$511.04

1

COWLING, UNDER RH (BLACK) | FOR 6UX

94470-14J00-YKV

$710.36

2

EMBLEM (GRAY) | FOR YUA

68181-33C20-Y4P

$37.52

2

EMBLEM (GRAY) | FOR YKV

68181-33C20-17U

$36.87

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION | RH

94478-14J00

$5.42

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.11

7

CUSHION

09321-10018

$4.19

8

SCREW

03541-0512A

$1.37

9

CLIP

94479-35F00

$5.14

10

COWLING,UNDER,L | FOR GLR This part replaces 94480-14J00-YUA.

94480-14J01-YUA

$390.22

10

COWLING,UNDER,L | FOR 6UX This part replaces 94480-14J00-YKV.

94480-14J01-YKV

$463.73

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$5.43

12

EMBLEM (GRAY) | FOR YUA

68181-33C20-Y4P

$37.52

12

EMBLEM (GRAY) | FOR YKV

68181-33C20-17U

$36.87

13

CLAMP

09403-14311

$4.88

14

CUSHION | LH

09320-09016

$1.97

15

BOLT (6X20) | LH

09139-06190

$3.77

16

CUSHION

09321-10018

$4.19

17

SCREW

03541-0512A

$1.37
