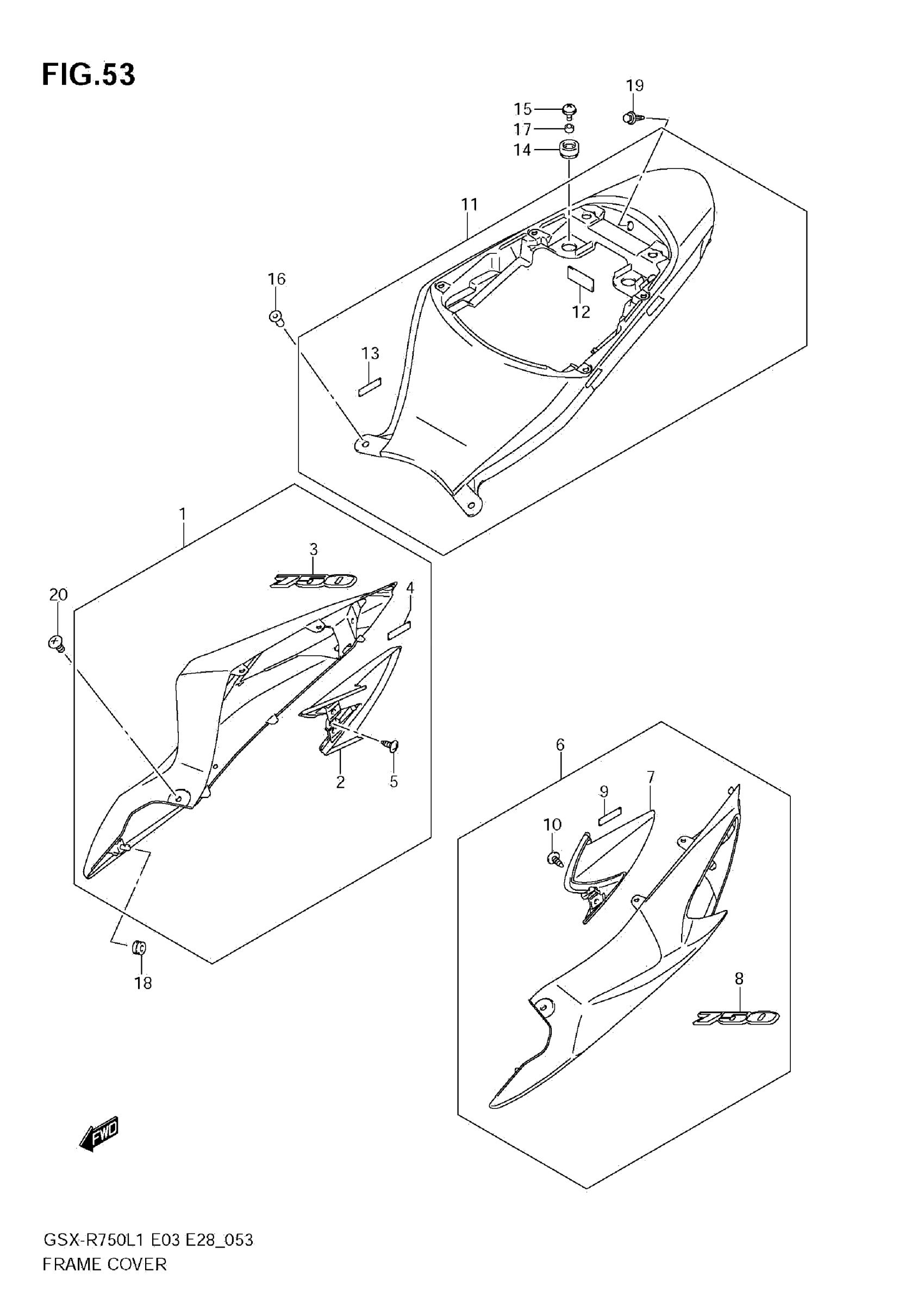

Suzuki GSX-R750L1 (2011) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR GLR

47100-15J10-YBD

$203.02

1

COVER, FRAME RH (BLACK) | FOR 6UX

47100-15J10-YVB

$203.02

2

COVER,FRAME RR,R

47611-14J00

$17.89

3

EMBLEM "750" (ORANGE/BLACK) | FOR GLR

68131-15J00-JWH

$17.22

3

EMBLEM "750" (GRAY/BLACK) | FOR 6UX

68131-15J00-GTT

Unavailable

4

TAPE

94443-06G00

$3.11

5

SCREW

03541-0512A

$1.41

6

COVER, FRAME LH (WHITE) | FOR GLR

47200-15J10-YBD

$199.26

6

COVER, FRAME LH (BLACK) | FOR 6UX

47200-15J10-YVB

$203.02

7

COVER,FRAME RR,L

47621-14J00

$17.97

8

EMBLEM, "750" (ORANGE/BLACK) | FOR GLR

68131-15J00-JWH

$17.22

8

EMBLEM "750" (GRAY/BLACK) | FOR 6UX

68131-15J00-GTT

Unavailable

9

TAPE

94443-06G00

$3.11

10

SCREW

03541-0512A

$1.41

11

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$92.21

12

CUSHION

48128-14FA0

$7.30

13

TAPE

94443-06G00

$3.11

14

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

15

SCREW (6X16)

09136-06056

$2.17

16

NUT

09159-05019

$6.63

17

SPACER (6.5X10X7)

09180-06283

$1.97

18

CUSHION

09320-06504

$4.61

19

CLIP (BLACK)

09409-06314-5PK

$2.80

20

SCREW

02142-1520B

$2.40
