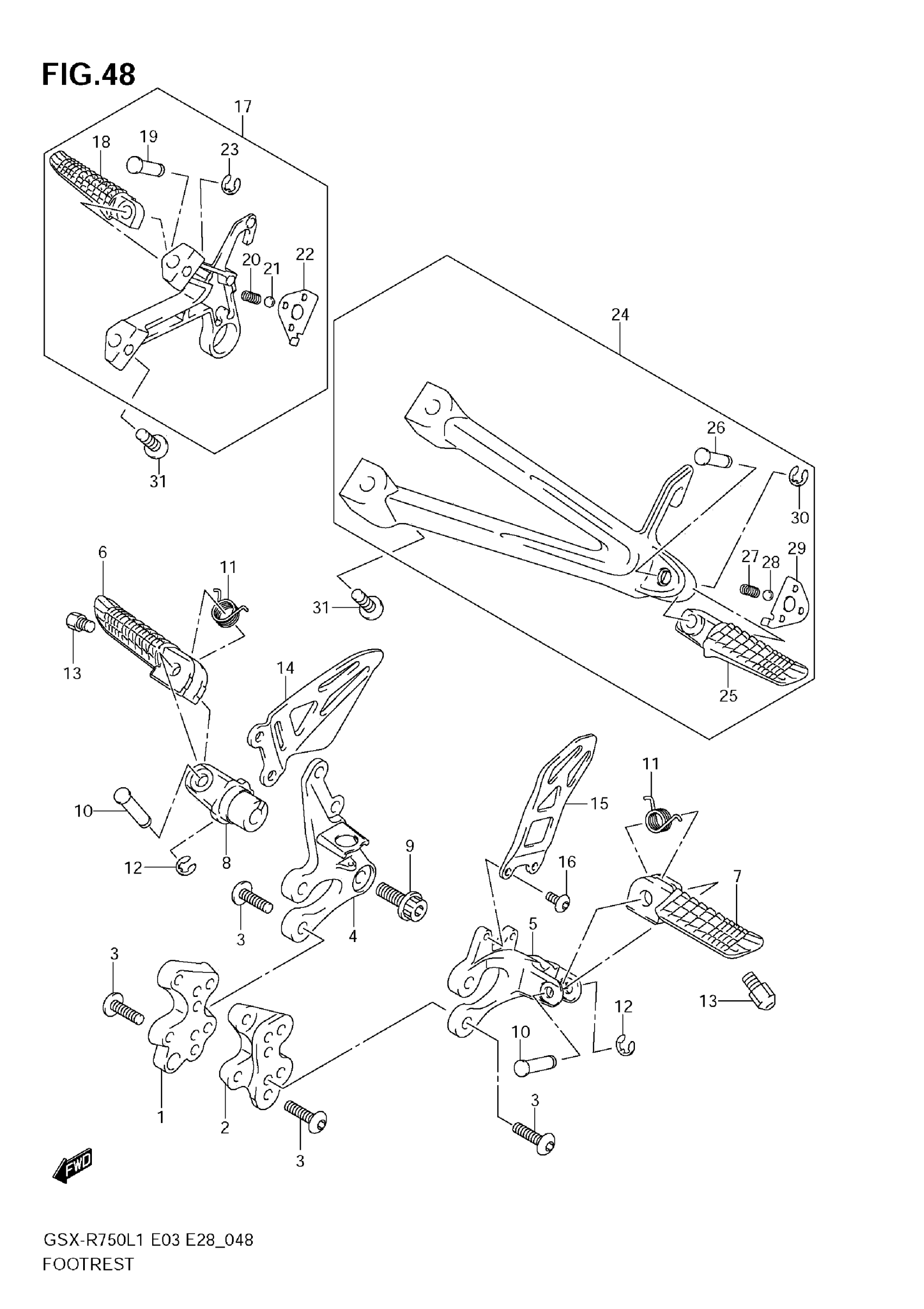

Suzuki GSX-R750L1 (2011) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST NO.1 RH

43541-14J00

$34.47

2

BRACKET, FOOTREST NO.1 LH

43551-14J00

$34.47

3

BOLT (8X23)

09106-08186

$3.08

4

BRACKET, FOOTREST NO.2 RH

43511-14J00

$153.98

5

BRACKET, FOOTREST NO.2 LH

43521-47H10

$153.22

6

BAR, FOOTREST RH

43516-37H00

$54.45

7

BAR, FOOTREST LH

43526-37H00

$37.35

8

HOLDER, FOOTREST

43531-41G10

$111.40

9

BOLT (10X28) | RH

09106-10064

$4.42

10

PIN

09208-08018

$2.77

11

SPRING

09448-14037

$2.90

12

E RING

08332-1106A

$1.43

13

.BOLT,BANK SENSOR

43576-07D01

$8.10

14

GUARD, FOOTREST RH

43571-47H00

$90.33

15

GUARD, FOOTREST LH

43576-47H10

$88.67

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.65

17

FOOTREST, PILLION RH (SILVER)

43600-14J00

$298.40

18

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$50.40

19

PIN

09208-08017

$3.67

20

SPRING

09440-05003

$1.48

21

BALL

06111-07004

$1.22

22

.PLATE,PILLION FOOTREST,R

43816-47H00

Unavailable

23

E RING

08332-1106A

$1.43

24

FOOTREST, PILLION LH (SILVER)

43700-14J00

$292.90

25

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$48.75

26

PIN

09208-08017

$3.67

27

SPRING

09440-05003

$1.48

28

BALL

06111-07004

$1.22

29

.PLATE,PILLION FOOTREST,L

43826-47H00

$8.21

30

E RING

08332-1106A

$1.43

31

BOLT (8X23)

09106-08186

$3.08
