2011 Suzuki GSX-R750L1 Throttle Body Diagram

← All diagrams

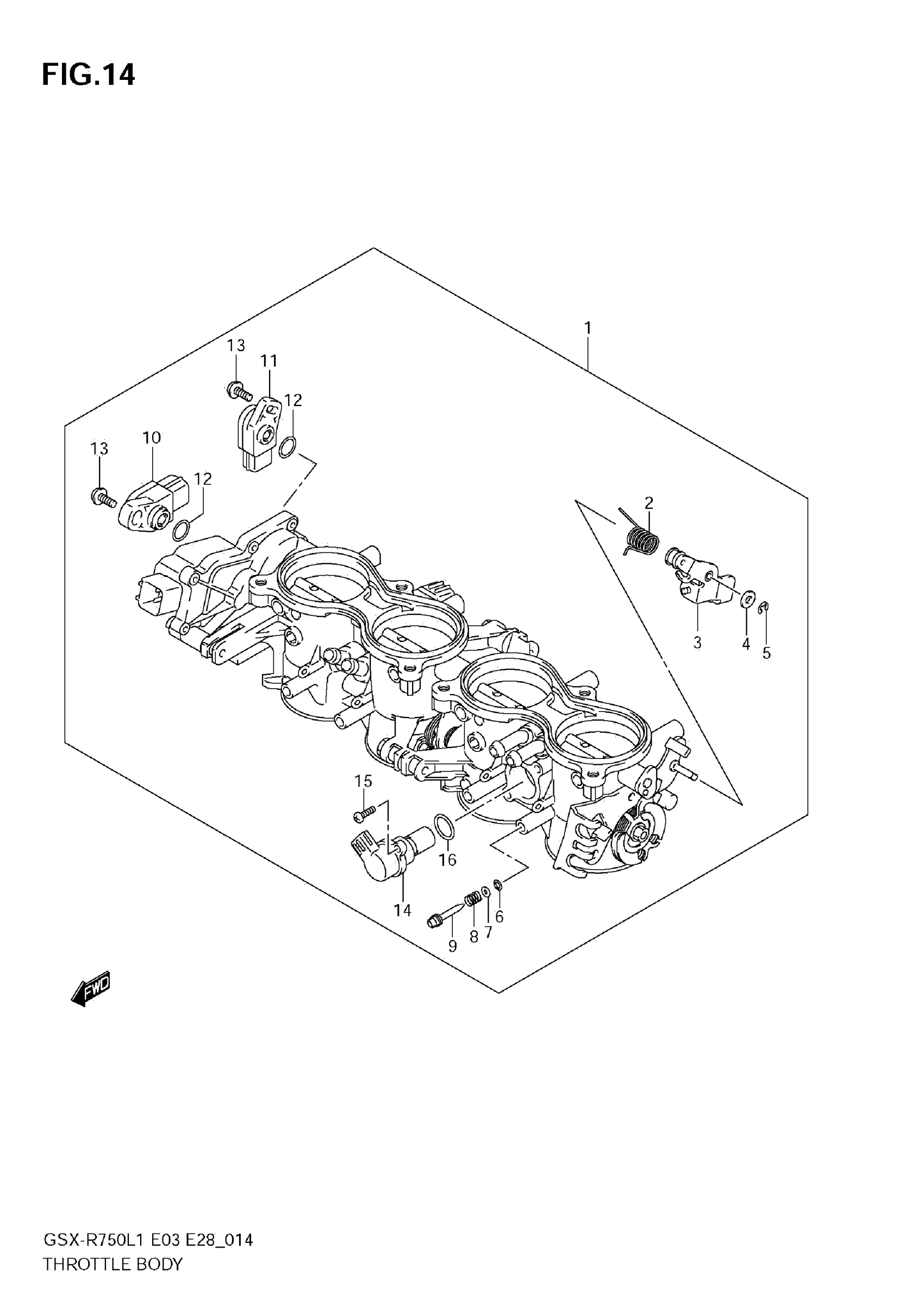

Find the part on the Throttle Body diagram for your 2011 Suzuki GSX-R750L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX-R750L1 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13406-15J10

1
Out of stock

2

TORSION SPRING

13426-29G00

1
Out of stock

3

LEVER ASSY

13420-37H00

1
Out of stock

4

PACKING

13427-29G00

1
Out of stock

5

E RING

13424-29G00

1
Out of stock

6

O-RING This part replaces 13295-29900.

13295-29901

4
Out of stock

7

WASHER

13606-47A00

4
Out of stock

8

SPRING,THROTTLE SCREW

13268-48700

4

$4.33

In stock

9

SCREW

13269-33E00

4
Out of stock

10

SENSOR ASSY

13580-14J00

1
Out of stock

11

SENSOR ASSY

13580-14J10

1
Out of stock

12

.O-RING This part replaces 13575-29G00.

13575-29G01

2
Out of stock

13

SCREW

13605-02F00

2
Out of stock

14

MOTOR ASSY

18117-14J01

1
Out of stock

15

SCREW

13605-37H00

2
Out of stock

16

O RING

13679-37H00

1
Out of stock
← Throttle Body Throttle Body Hose/joint →
