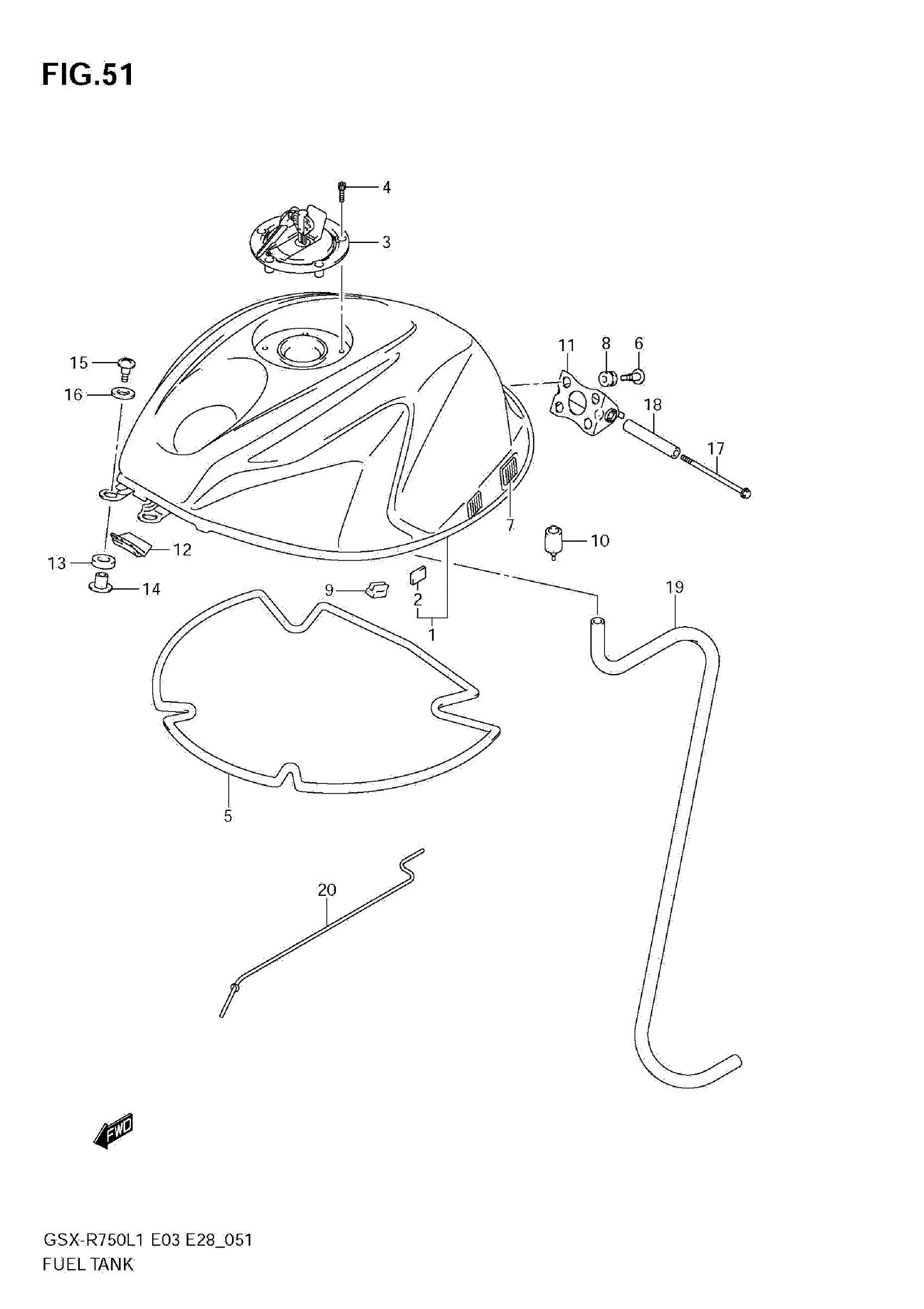

Suzuki GSX-R750L1 (2011) FUEL TANK (E33) Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLUE) | FOR GLR This part replaces 44100-14J20-YSF.

44100-14J32-YSF

$1,609.65

1

TANK ASSY, FUEL (BLACK) | FOR 6UX This part replaces 44100-14J20-YVB.

44100-14J52-YVB

$1,637.35

2

FASTENER, COVER

44572-14J00

$15.83

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$172.96

4

BOLT (5X20)

09106-05017

$2.80

5

SHIELD,FUEL TANK HEAT

44191-14J00

$104.63

6

SCREW, FUEL TANK REAR BRKT

44543-14J00

$7.95

7

FASTENER, COVER

44572-13G00

$10.13

8

CUSHION

09320-08071

$3.05

9

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

10

CUSHION,FUEL TANK RR

44542-41G00

$7.04

11

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

12

RUBBER,FUEL TANK FR

44546-44H00

$15.07

13

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.77

14

SPACER, TANK FRONT

44512-16G00

$6.80

15

SCREW

09139-06192

$2.92

16

WASHER (6.5X22X1.6)

09160-06054

$1.62

17

BOLT (6X110)

09106-06119

$5.21

18

SPACER, TANK REAR

44561-18G00

$15.52

19

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$23.47

20

STAY, FUEL TANK

44574-35F00

$13.89
