2009 Suzuki GSX-R750K8 Speedometer Diagram

← All diagrams

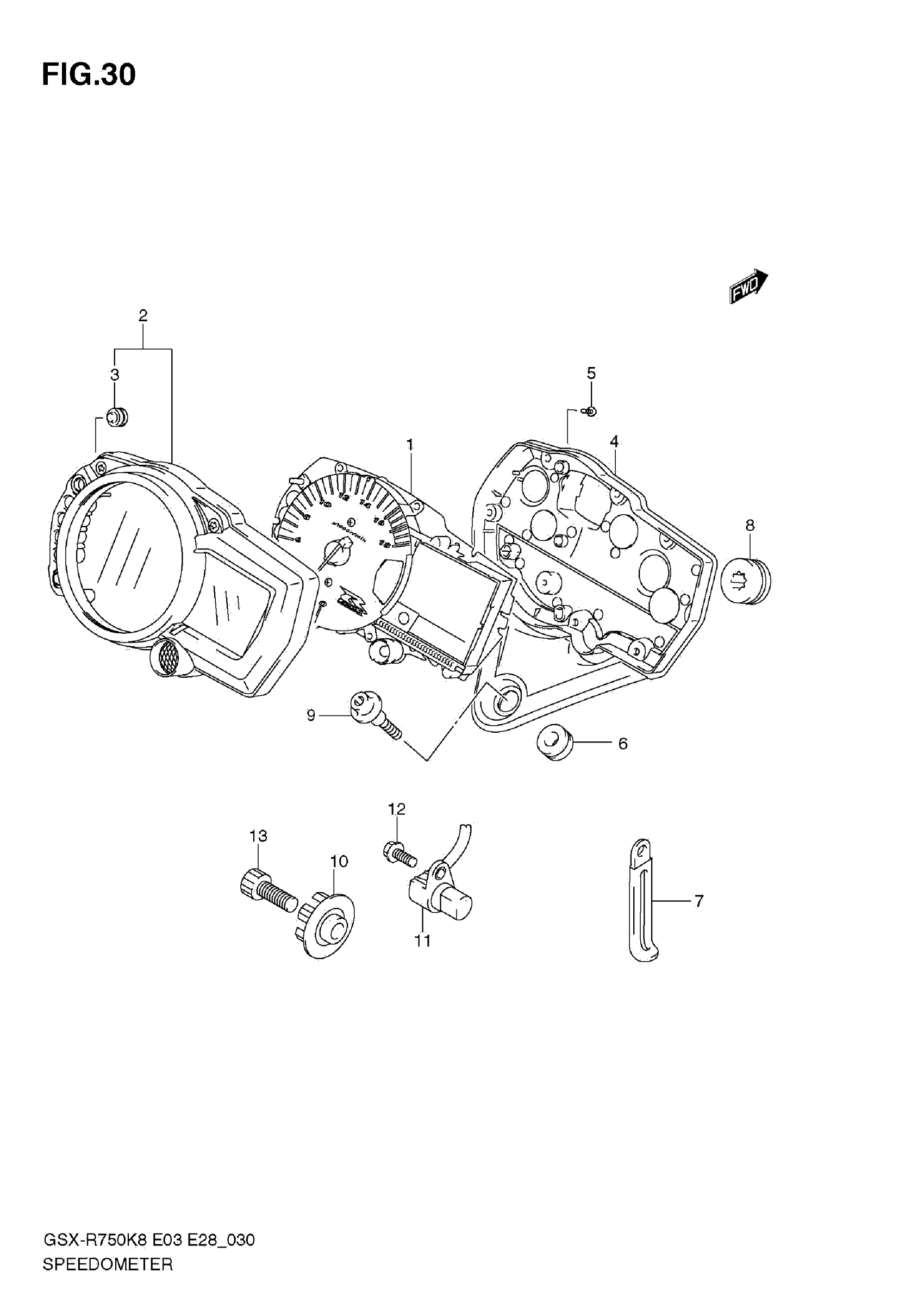

Find the part on the Speedometer diagram for your 2009 Suzuki GSX-R750K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R750K8 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEED & TACHOMETER ASSY

34120-38H20

1
Out of stock

1

SPEED & TACHOMETER ASSY | E28

34120-38H30

—
Out of stock

2

CASE, UPPER

34150-01H20

1
Out of stock

3

SWITCH, RUBBER

34124-39G00

2
Out of stock

4

CASE, LOWER

34111-01H00

1
Out of stock

5

SCREW (3X16)

09132-03008

9
Out of stock

6

CUSHION

34955-33E00

1
Out of stock

7

CLAMP (L:45)

09404-06429

1
Out of stock

8

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

2
Out of stock

9

SCREW

34149-18G00

1
Out of stock

10

ROTOR,SPEED This part replaces 34981-38G00.

34981-38G01

1
Out of stock

11

SENSOR, SPEED

34990-35F00

1
Out of stock

12

BOLT

07120-0512A

1
Out of stock

13

BOLT, SPEED ROTOR

07130-0825B

1
Out of stock
