2009 Suzuki GSX-R750K8 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2009 Suzuki GSX-R750K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

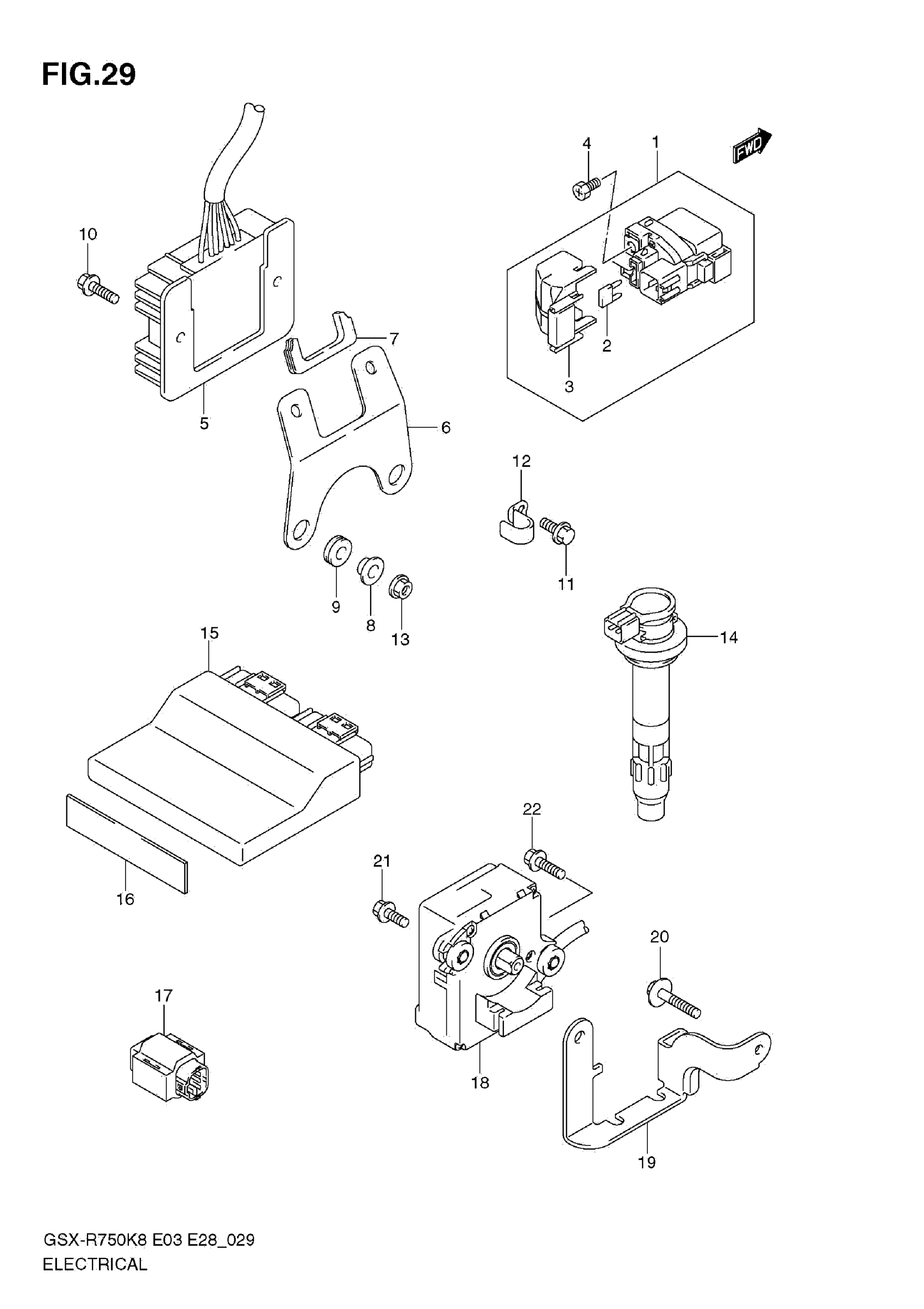

2009 Suzuki GSX-R750K8 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

1
Out of stock

2

FUSE (30A)

09481-30501

2
Out of stock

3

COVER, STARTER

31861-38G00

1
Out of stock

4

BOLT (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY This part replaces 32800-18H00.

32800-47H00

1
Out of stock

6

BRACKET, RECT FTG

32831-37H00

1
Out of stock

7

MOLD, RECT BRKT

32835-37H00

1
Out of stock

8

SPACER

09180-06325

2
Out of stock

9

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

10

BOLT, RECTIFIER

01550-0625A

2
Out of stock

11

BOLT, BRKT

01550-0616A

2
Out of stock

12

CLAMP,PTT SW LE This part replaces 09403-11315.

09403-11328

1
Out of stock

13

NUT, RECTIFIER

08316-1006A

2
Out of stock

14

COIL ASSY,IGNITION

33410-38H00

4
Out of stock

15

CONTROL UNIT, FI | E3,E28

32920-38H10

1
Out of stock

15

CONTROL UNIT, FI | E33

32920-38H20

1
Out of stock

16

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

2
Out of stock

17

SENSOR ASSY,FUEL CUT

33960-27G00

1
Out of stock

18

ACTUATOR ASSY This part replaces 33970-41G00.

33970-41G02

1
Out of stock

19

HOLDER, ACTR

33971-37H00

1
Out of stock

20

BOLT, ACTR (6X30)

09116-06103

1
Out of stock

21

BOLT, ACTR HOLDER

01550-0616A

1
Out of stock

22

BOLT, ACTR (6X25)

09116-06202

1
Out of stock
