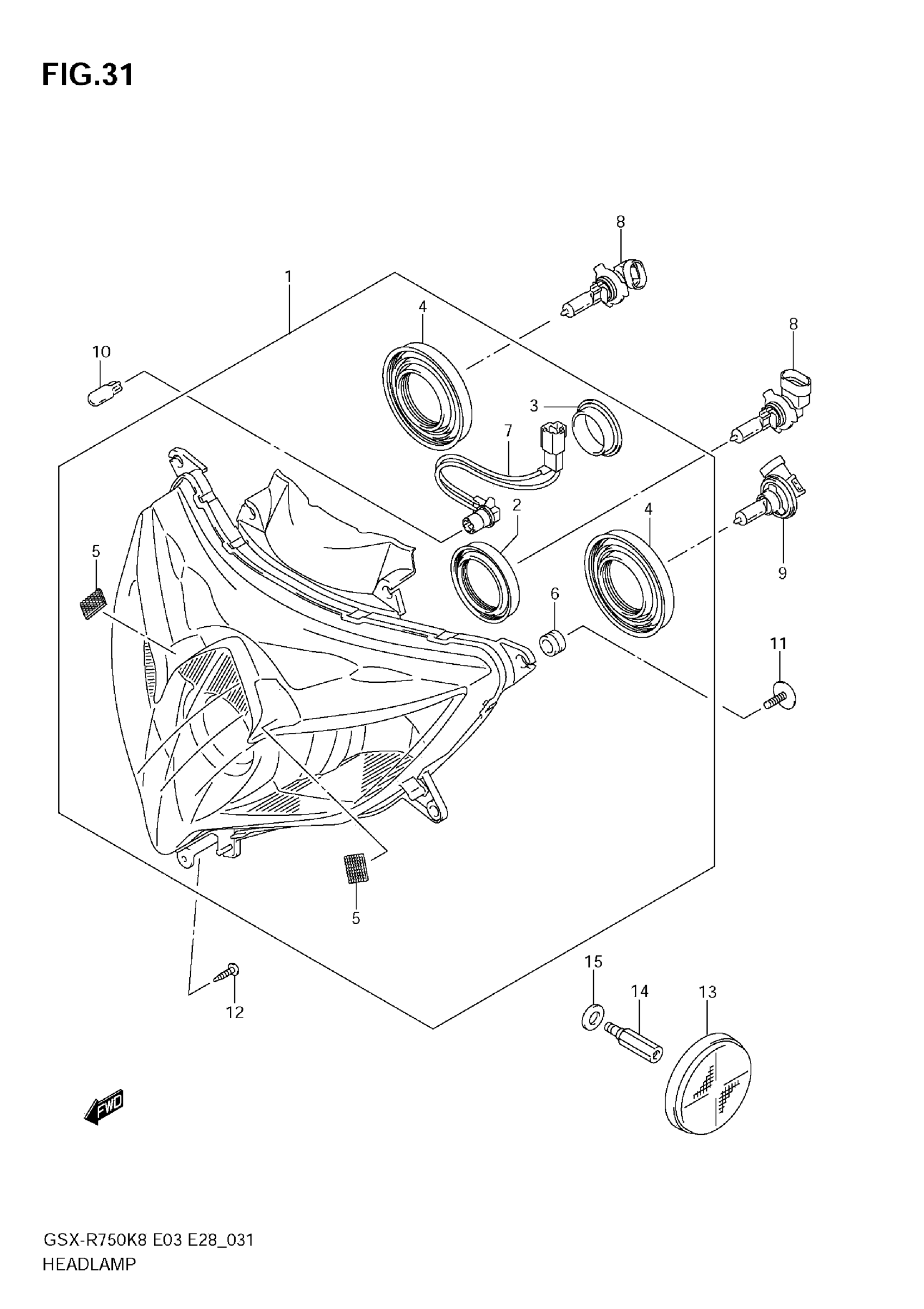

Suzuki GSX-R750K8 (2009) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-37H30-999.

35100-37H32-999

$752.98

2

COVER, SOCKET

35179-01H00

$29.57

3

COVER, BACK

35179-37H00

$26.75

4

COVER, SOCKET

35179-76F10

$14.00

5

FASTENER, FUEL TANK

44572-37H00

$9.41

6

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.03

7

SOCKET & LEAD This part replaces 36118-37H00.

36118-37H01

$26.77

8

BULB (12V60W,HB3,#9005)

09471-12151

$52.62

9

BULB (12V55W,H11)

09471-12210

$60.78

10

.BULB (12V5W)

09471-12216

$4.99

11

SCREW, HEADLAMP

09136-05062

$2.25

12

BOLT, HEADLAMP

03541-0516B

$1.82

13

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$14.56

14

BOLT

09119-06109

$14.43

15

WASHER (8.5X14X1.5)

09160-08090

$2.46
