2009 Suzuki GSX-R750K8 Muffler Diagram

← All diagrams

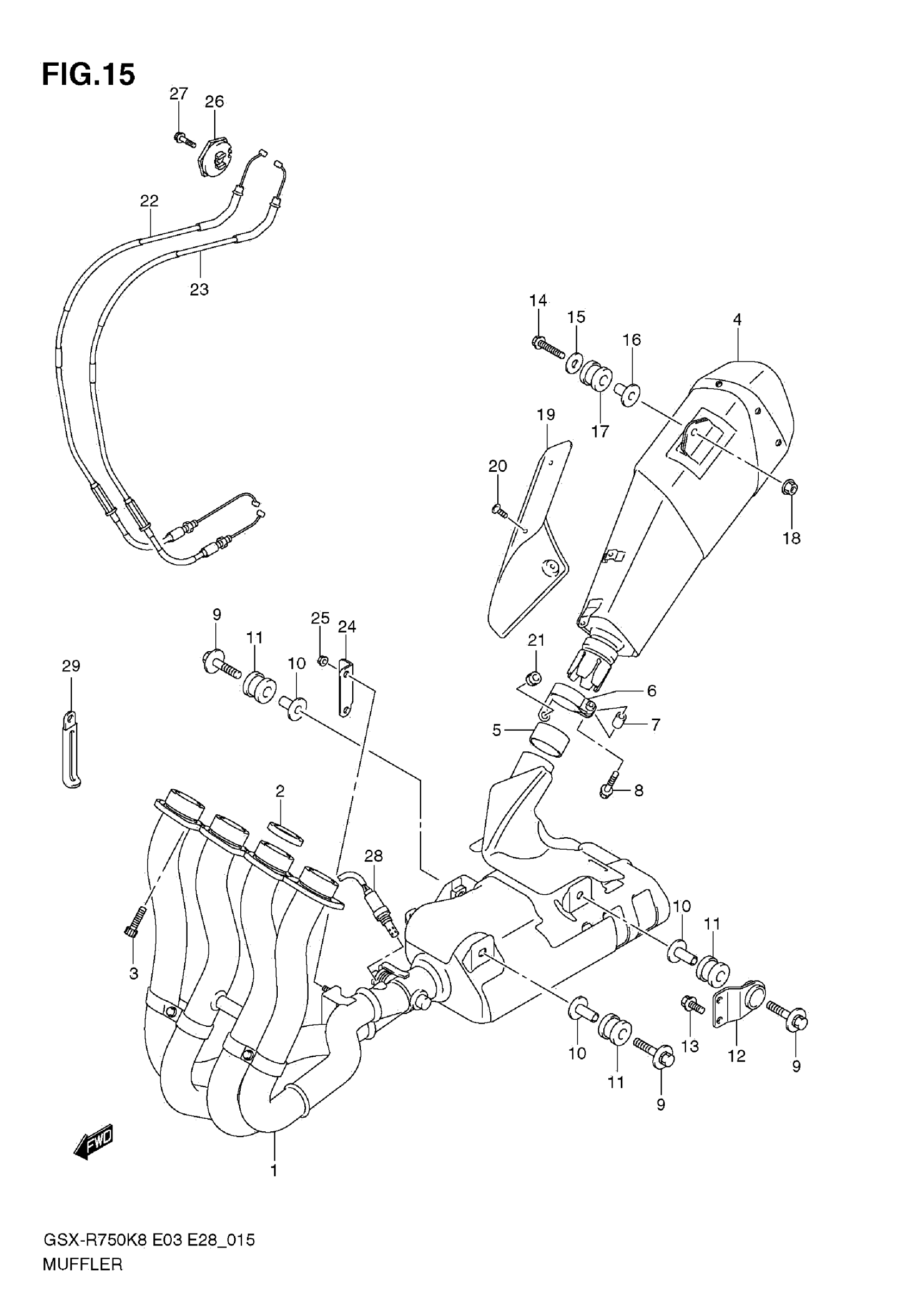

Find the part on the Muffler diagram for your 2009 Suzuki GSX-R750K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX-R750K8 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST

14100-38H00

1
Out of stock

2

GASKET This part replaces 14181-46E00.

14181-46E10

4
Out of stock

3

BOLT

07130-0825A

8
Out of stock

4

BODY, MUFFLER

14310-38H00-H01

1
Out of stock

5

CONNECTOR

14771-42F10

1
Out of stock

6

CLAMP

14459-42F60

1
Out of stock

7

SPACER

14458-06H00

1
Out of stock

8

BOLT

09103-08392

1
Out of stock

9

BOLT

09118-08152-A05

3
Out of stock

10

SPACER, MUFFLER SUPPORT This part replaces 09180-08152-A05.

09180-08152

3
Out of stock

11

CUSHION

09320-12077

3
Out of stock

12

BRACKET

14770-01H00

1
Out of stock

13

BOLT

07120-0816A

2
Out of stock

14

BOLT

09103-08358

1
Out of stock

15

WASHER

09160-08142

1
Out of stock

16

SPACER

09180-08152

1
Out of stock

17

CUSHION

09320-12048

1
Out of stock

18

NUT

08361-2508A

1
Out of stock

19

COVER, MUFFLER

14780-37H00

1
Out of stock

20

SCREW

09139-06078

3
Out of stock

21

CUSHION (8.4X18X6)

09320-08066

1
Out of stock

22

CABLE, EXH VALVE NO.1

11276-37H00

1
Out of stock

23

CABLE, EXH VALVE NO.2

11277-37H00

1
Out of stock

24

BRACKET

14250-01H00

1
Out of stock

25

NUT

08316-1006A

2
Out of stock

26

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

1
Out of stock

27

BOLT

07120-0516A

1
Out of stock

28

SENSOR, OXYGEN This part replaces 18213-18H00.

18213-18H10

1
Out of stock

29

CLAMP

09404-06429

1
Out of stock
