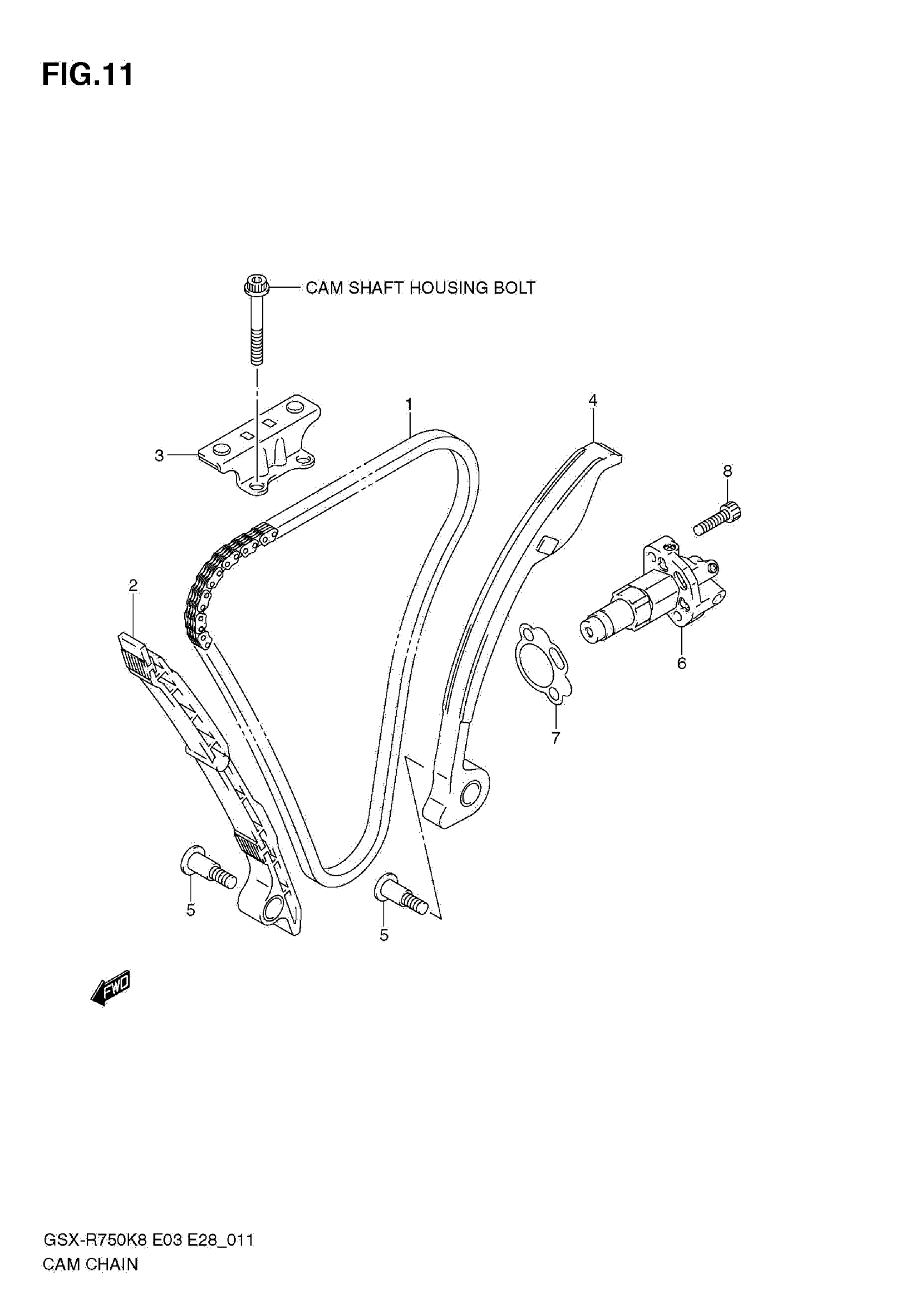

Suzuki GSX-R750K8 (2009) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE

12760-39F00

$130.57

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-37H00.

12771-37H01

$24.32

3

GUIDE,CAM CHAIN NO.2

12782-29G00

$29.07

4

TENSIONER,CAM CHAIN This part replaces 12811-02H00.

12811-02H01

$46.50

5

BOLT

12812-31G00

$4.19

6

ADJUSTER ASSY,TENSIONER

12830-37H00

$240.24

7

GASKET, ADJUSTER

12837-02H00

$5.91

8

BOLT

07130-0625B

$2.80
