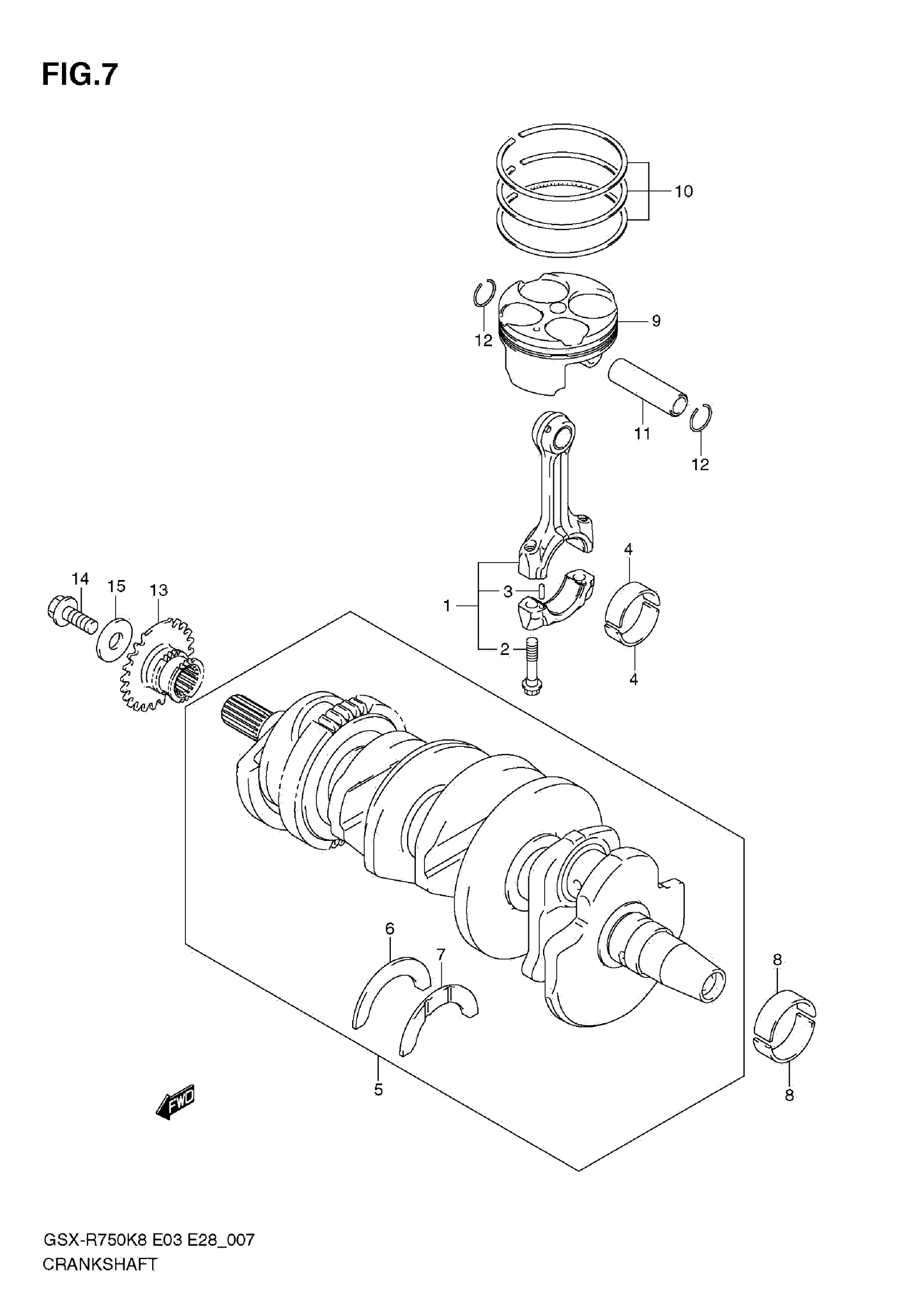

Suzuki GSX-R750K8 (2009) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-02H10

$254.98

2

BOLT

12163-35F00

$9.79

3

PIN (4X13.8)

04221-04089

$1.15

4

BEARING,CRANK PIN

12164-30G00-0A0

$20.22

4

BEARING,CRANK PIN

12164-30G00-0B0

$14.98

4

BEARING,CRANK PIN

12164-30G00-0C0

$14.40

4

BEARING,CRANK PIN

12164-30G00-0D0

$20.58

5

CRANKSHAFT SET This part replaces 12000-02840.

12000-02850

$1,939.15

6

BEARING, THRUST RH (GREEN)

12228-17E00-0D0

$9.36

7

BEARING, THRUST LH (RED)

12228-17E00-0A0

$12.85

7

BEARING, THRUST LH (BLACK)

12228-17E00-0B0

$9.54

7

BEARING, THRUST LH (BLUE)

12228-17E00-0C0

$9.54

7

BEARING, THRUST LH (GREEN)

12228-17E00-0D0

$9.36

7

BEARING, THRUST LH (YELLOW)

12228-17E00-0E0

$12.85

7

BEARING, THRUST LH (WHITE)

12228-17E00-0F0

$13.10

8

BEARING,CRANKSHAFT

12229-02H00-0A0

$18.58

8

BEARING,CRANKSHAFT

12229-02H00-0B0

$17.99

8

BEARING,CRANKSHAFT

12229-02H00-0C0

$17.99

8

BEARING,CRANKSHAFT

12229-02H00-0D0

$18.58

8

BEARING,CRANKSHAFT

12229-02H00-0E0

$25.08

9

PISTON

12111-02H10-0F0

$256.80

10

RING SET,PISTON

12140-02H00

$88.94

11

PIN,PISTON

12151-41G00

$14.66

12

CIRCLIP

09381-15001

$1.46

13

SPROCKET, CAM CHAIN

12731-01H00

$146.42

14

BOLT

09103-10189

$3.83

15

WASHER

08211-10285

$3.32
