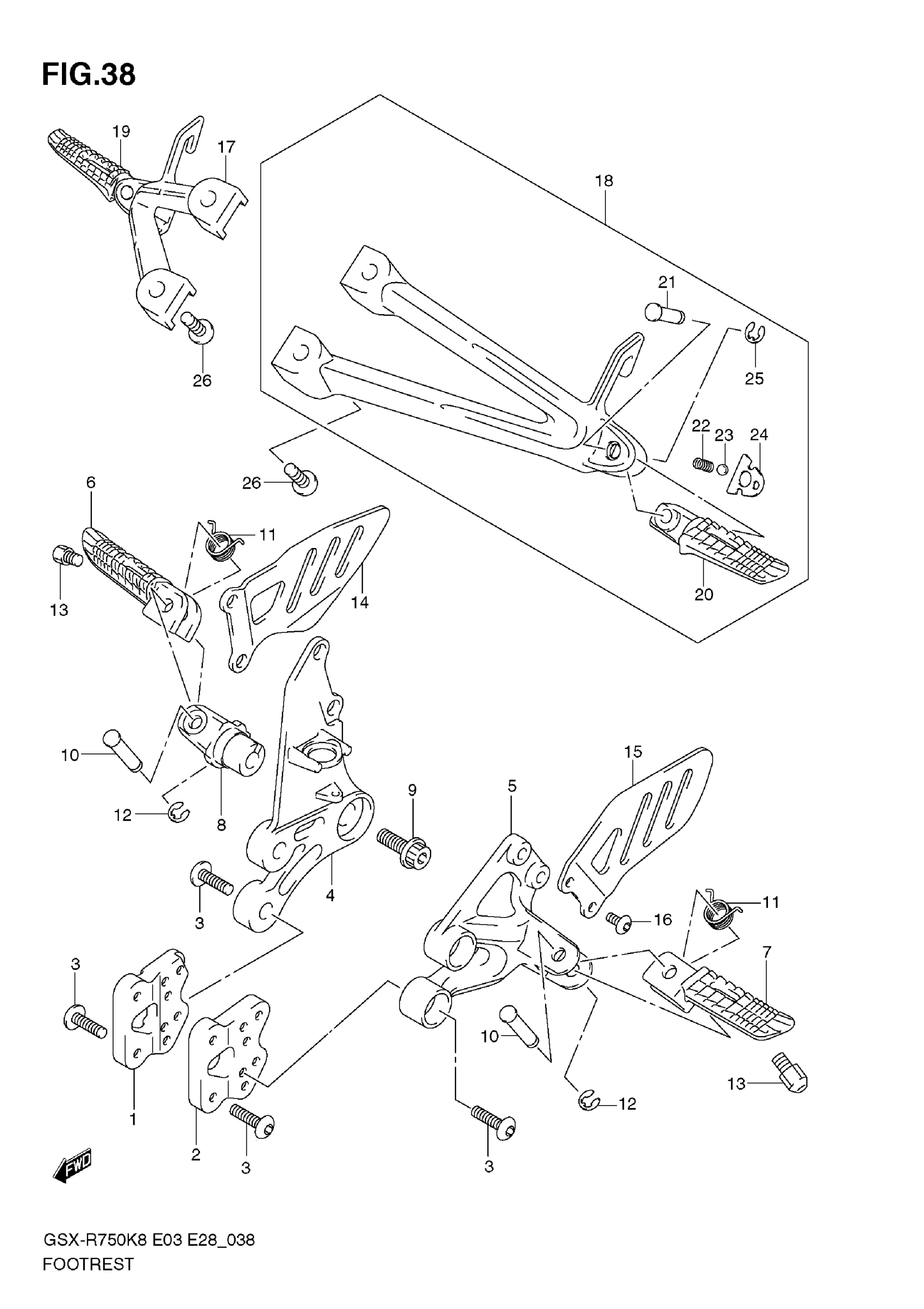

Suzuki GSX-R750K8 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST NO.1 RH

43541-01H00

$153.26

2

BRACKET, FOOTREST NO.1 LH

43551-01H01

$156.15

3

BOLT

09106-08186

$3.08

4

BRACKET, FOOTREST NO.2 RH

43511-01H01

$186.82

5

BRACKET, FOOTREST NO.2 LH

43521-01H00

$193.15

6

BAR, FOOTREST RH

43516-37H00

$54.45

7

BAR, FOOTREST LH

43526-37H00

$37.35

8

HOLDER, FOOTREST This part replaces 43531-41G00.

43531-41G10

$111.40

9

BOLT, RH

09106-10064

$4.42

10

PIN

09208-08010

$2.80

11

SPRING

09448-14037

$2.90

12

E RING

08332-1106A

$1.43

13

.BOLT,BANK SENSOR

43576-07D01

$8.10

14

GUARD,FRONT FOO This part replaces 43571-01H00.

43571-01H01

$75.56

15

GUARD,FRONT FOO This part replaces 43576-41G00.

43576-41G01

$71.55

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.65

17

FOOTREST ASSY,P | MODEL K8 This part replaces 43600-37H00-13L.

43600-37H10-13L

$230.62

17

FOOTREST ASSY,P | MODEL K9 This part replaces 43600-37H00-YAP.

43600-37H10-YAP

$298.40

18

FOOTREST PILLIO | MODEL K8 This part replaces 43700-37H00-13L.

43700-37H10-13L

$242.45

18

FOOTREST ASSY,P | MODEL K9 This part replaces 43700-37H00-YAP.

43700-37H10-YAP

$230.63

19

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$50.40

20

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$48.75

21

PIN

09208-08011

$2.80

22

SPRING

09440-05005

$1.45

23

BALL

06111-07004

$1.22

24

PLATE,PILLION F This part replaces 43816-01H01.

43816-01H02

$6.63

25

E RING

08332-1106A

$1.43

26

BOLT

09106-08186

$3.08
