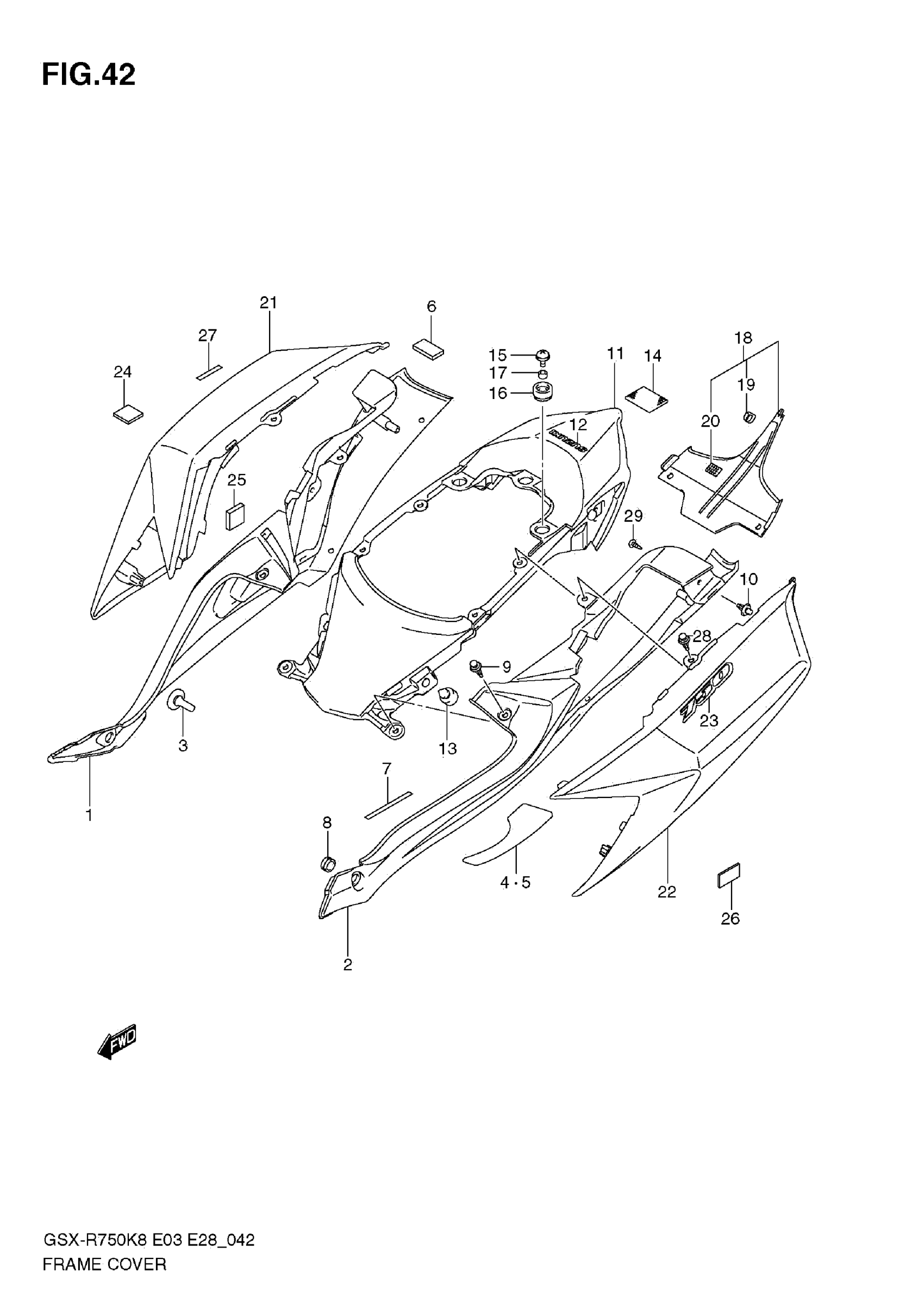

Suzuki GSX-R750K8 (2009) FRAME COVER (MODEL K8) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | FOR CRU

47110-37H00-019

$247.13

1

COVER, FRAME RH (BLUE) | FOR CWH

47110-37H00-YBD

Unavailable

1

COVER, FRAME RH (GRAY) | FOR ECE

47110-37H00-YLF

Unavailable

2

COVER, FRAME LH (BLACK) | FOR CRU

47210-37H00-019

$247.13

2

COVER, FRAME LH (BLUE) | FOR CWH

47210-37H00-YBD

Unavailable

2

COVER, FRAME LH (GRAY) | FOR ECE

47210-37H00-YLF

Unavailable

3

CUSHION

09321-06026

$2.15

4

TAPE, RH

47112-37H00

$19.03

5

TAPE, LH

47212-37H00

$19.03

6

CUSHION

47114-37H00

$5.65

7

CUSHION

47115-37H00

$12.35

8

CUSHION, FRONT

47113-37H00

$5.00

9

CLIP, FRONT

09409-06328

$2.92

10

CLIP, REAR

09409-06314-5PK

$2.80

11

COVER,FRAME CTR | FOR CRU This part replaces 47310-37H00-019.

47310-37H01-019

Unavailable

11

COVER,FRAME CTR | FOR CWH This part replaces 47310-37H00-YKY.

47310-37H01-YKY

Unavailable

11

COVER, FRAME CENTER (BLACK) | FOR ECE

47310-37H00-1PX

Unavailable

12

EMBLEM,SUZUKI | FOR 019 This part replaces 68131-21H00-YU8.

68131-21H01-YU8

$11.78

12

EMBLEM,SUZUKI | FOR YKY This part replaces 68131-21H00-YBD.

68131-21H01-YBD

$11.40

12

EMBLEM,SUZUKI | FOR 1PX This part replaces 68131-21H00-YD8.

68131-21H01-YD8

$11.80

13

CUSHION

09321-10002

$2.02

14

.FASTENER (33X25)

44572-13G10

$17.38

15

BOLT, CENTER

09136-06056

$2.17

16

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

17

SPACER

09180-06283

$1.89

18

COVER, FRAME REAR (BLACK) | FOR CRU,ECE

47910-37H00-019

$106.98

18

COVER, FRAME REAR (BLUE) | FOR CWH

47910-37H00-YKY

$109.52

19

CUSHION

47913-37H00

$6.23

20

FASTENER,FRAME COVER (15X25)

47912-37H00

$9.32

21

COVER, FRAME REAR RH (BLACK) | FOR CRU

47710-38H00-YKV

Unavailable

21

COVER,FRAME RR, | FOR CWH This part replaces 47710-38H00-YKY.

47710-38H01-YKY

Unavailable

21

COVER,FRAME RR, | FOR ECE This part replaces 47710-38H00-YME.

47710-38H01-YME

Unavailable

22

COVER, FRAME REAR LH (BLACK) | FOR CRU

47810-38H00-YKV

Unavailable

22

COVER,FRAME RR, | FOR CWH This part replaces 47810-38H00-YKY.

47810-38H01-YKY

Unavailable

22

COVER,FRAME RR, | FOR ECE This part replaces 47810-38H00-YME.

47810-38H01-YME

Unavailable

23

EMBLEM, "750" | FOR YKV

68131-38H00-J7A

Unavailable

23

EMBLEM,FRAME CO | FOR YKY This part replaces 68131-38H00-FND.

68131-38H01-FND

$7.25

23

EMBLEM,FRAME CO | FOR YME This part replaces 68131-38H00-CTY.

68131-38H01-CTY

$8.12

24

CUSHION, COVER UPPER

47712-37H00

$6.50

25

CUSHION, SIDE

47713-37H00

$7.12

26

CUSHION

45516-01H00

$6.00

27

TAPE

45517-16G00

$9.08

28

CLIP

09409-06328

$2.92

29

SCREW

03541-0512A

$1.37
