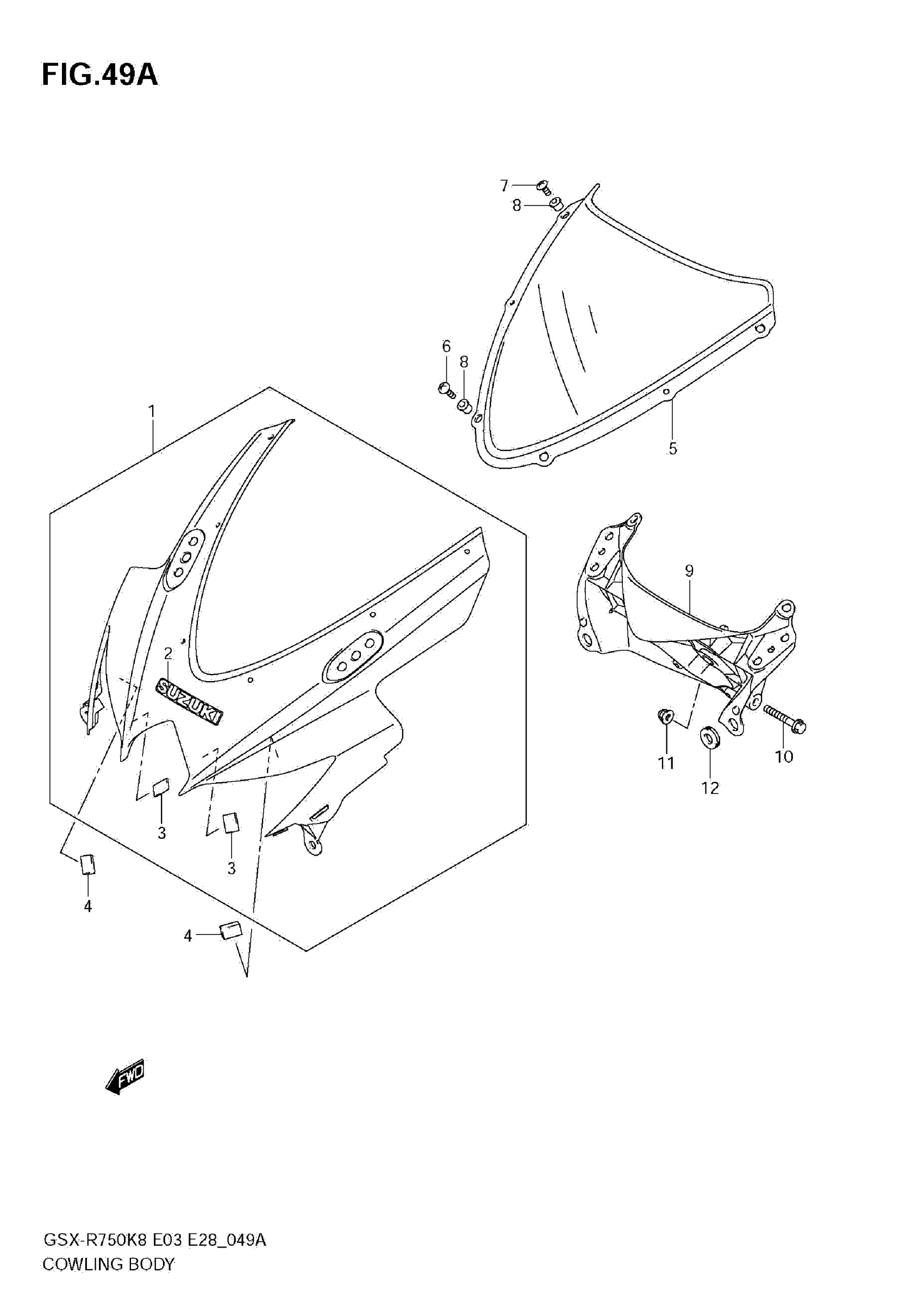

Suzuki GSX-R750K8 (2009) COWLING BODY (MODEL K9) Diagram

#

Description
Price

1

BODY ASSY,COWLI | FOR CRU This part replaces 94401-37H10-019.

94401-37H11-019

$323.88

1

BODY ASSY,COWLI | FOR EAH This part replaces 94401-37H10-YPA.

94401-37H11-YPA

$375.65

1

BODY, COWLING (GOLD) | FOR FGG

94401-37H10-YMG

Unavailable

1

BODY ASSY,COWLI | FOR GLR This part replaces 94401-37H10-YSF.

94401-37H11-YSF

$339.48

2

EMBLEM,"SUZUKI" | FOR 019 This part replaces 68641-19F00-YU8.

68641-19F01-YU8

$11.20

2

EMBLEM,"SUZUKI" | FOR YPA This part replaces 68641-19F00-17U.

68641-19F01-17U

$10.03

2

.EMBLEM,"SUZUKI" (BLACK) | FOR YMG This part replaces 68641-19F00-019.

68281-24F11-019

$10.25

2

EMBLEM,"SUZUKI" | FOR YSF This part replaces 68641-19F00-YBD.

68641-19F01-YBD

$14.47

3

FASTENER

44572-37H00

$9.01

4

CUSHION

92146-37H00

$6.75

5

WINDSCREEN

94611-37H00

$191.88

6

SCREW, FRONT

09125-05133

$2.20

7

SCREW, UPPER

09125-05134

$2.27

8

NUT

09159-05019

$6.44

9

BRACE,COWLING This part replaces 94511-37H00.

94511-37H01

$317.73

10

BOLT

01550-0845A

$2.88

11

NUT

08313-2008A

$2.50

12

CUSHION

09320-08028

$2.80
