1987 Suzuki GSX-R750G Muffler Diagram

← All diagrams

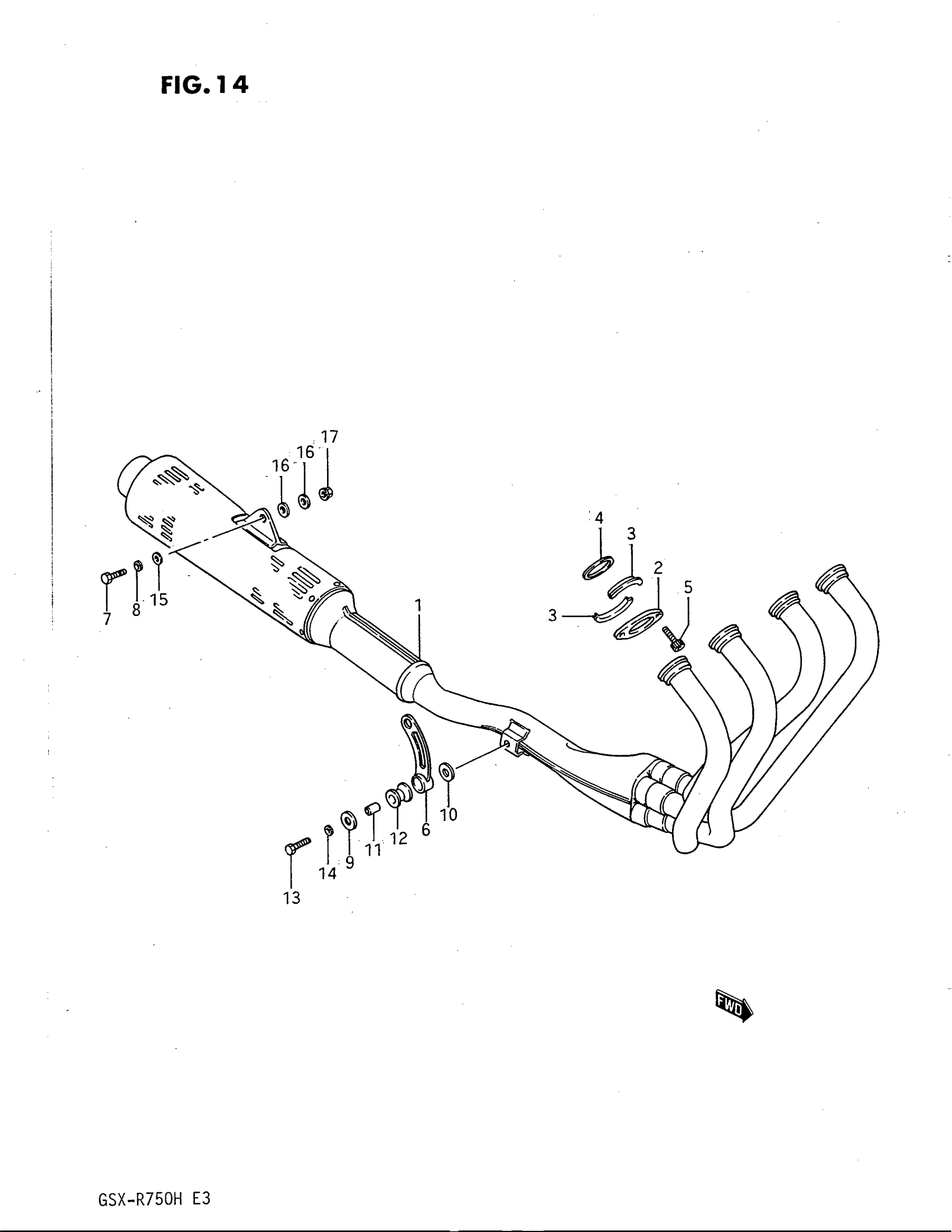

Find the part on the Muffler diagram for your 1987 Suzuki GSX-R750G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSX-R750G Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 14305-28A00-H01.

14305-27B01-H01

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 14305-27B20-H01.

14305-27B01-H01

1
Out of stock

2

CLAMP, EXHAUST PIPE

14182-27A00

4
Out of stock

3

PLATE, EXHAUST PIPE

14155-27A00

8
Out of stock

4

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

4
Out of stock

5

BOLT This part replaces 07110-08255.

07130-0825B

8
Out of stock

6

DAMPER, MUFFLER SUPPORT

14770-27A00

1
Out of stock

7

BOLT,8X35 This part replaces 09100-08224.

09100-08224-XC0

1
Out of stock

8

WASHER LOCK This part replaces 09162-08003.

09162-08007

1
Out of stock

9

WASHER (8.5X28X3.2) This part replaces 09160-08069.

09160-08137

1
Out of stock

10

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

1
Out of stock

11

SPACER This part replaces 09180-08102.

09180-08194

1
Out of stock

12

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

1
Out of stock

13

BOLT This part replaces 01107-10404.

01500-1040A

1
Out of stock

14

LOCK WASHER This part replaces 08321-21104.

08321-0110A

1
Out of stock

15

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

1
Out of stock

16

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

2
Out of stock

17

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

1
Out of stock
