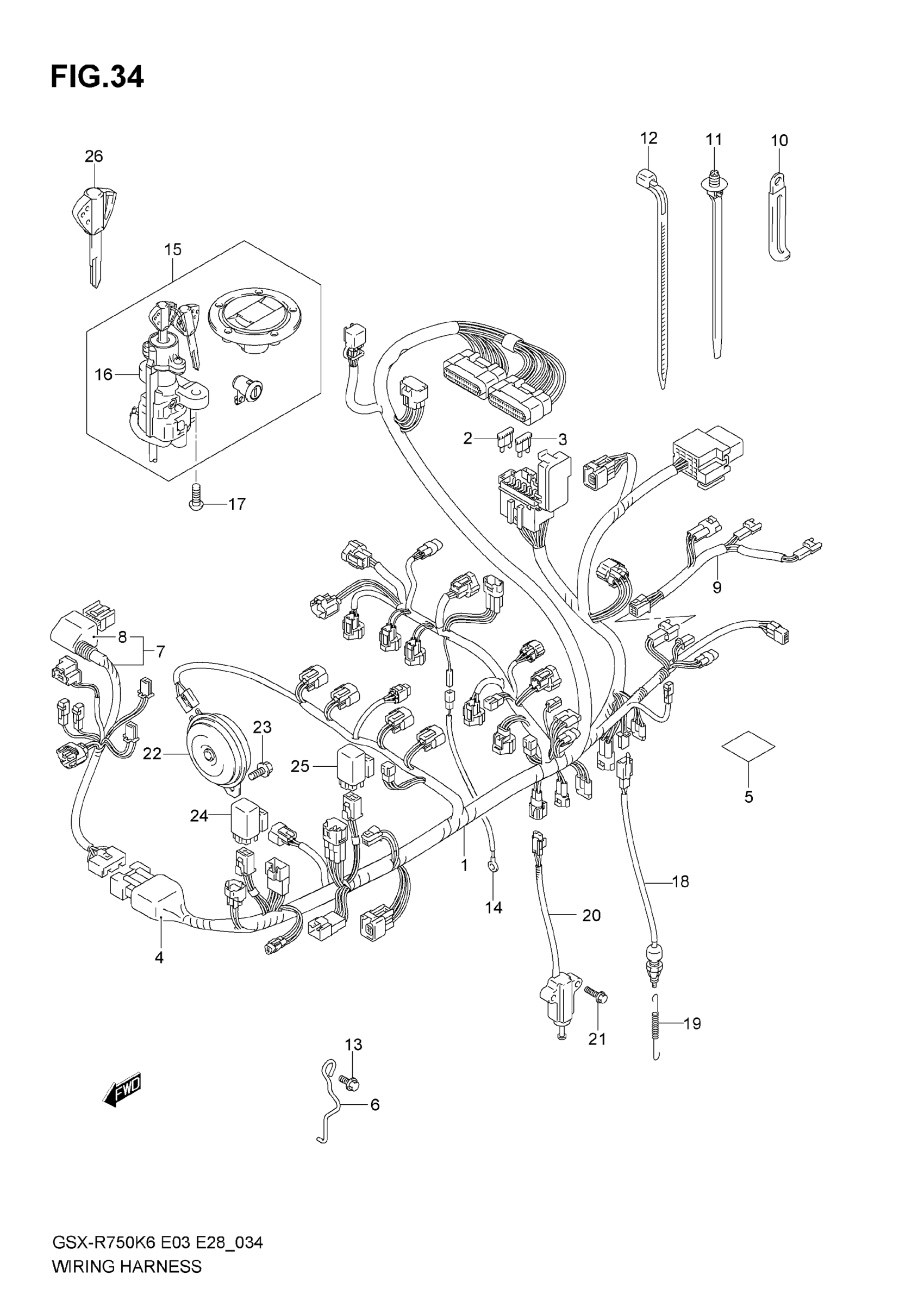

Suzuki GSX-R750 (2007) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 - 4 This part replaces 36610-01H30.

36610-01H31

$971.77

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

COVER

36618-18G00

Unavailable

5

PROTECTOR (30X80X1) | CUT AS REQUIRED (30X30)

33652-29F00

$2.80

6

GUIDE, WIRING HARNESS

36619-01H00

$9.50

7

HARNESS, WIRING NO.2 | Includes Item(s) 8

36620-01H00

$187.69

8

COVER, SPEEDOMETER

36618-41G00

Unavailable

9

WIRE, REAR COMB

36855-01H00

$69.00

10

CLAMP (L:45)

09404-06429

$1.82

11

CLAMP (L:170)

09407-17403

$4.63

12

CLAMP (L:125)

09407-14403

$2.24

13

BOLT

01550-0612A

$1.97

14

WIRE,OIL PRESSU This part replaces 36851-01H00.

36851-01H01

$13.83

15

LOCK SET This part replaces 37101-40820.

37101-40824

$247.44

15

LOCK SET | E33; Includes Item(s) 16 This part replaces 37101-40830.

37101-40834

$514.58

16

.LOCK ASSY,STEERING This part replaces 37100-41G10.

37100-41G12

$208.75

17

SCREW

09139-08016

$3.04

18

SWITCH ASSY, STOP LAMP

37740-45D00

$20.62

19

SPRING This part replaces 09443-06087-A05.

09443-06087

$4.45

20

SWITCH ASSY,SID This part replaces 37840-35F10.

37840-35F12

$69.13

21

BOLT

01550-0616A

$1.97

22

HORN ASSY

38500-01H00

Unavailable

23

BOLT (8X16)

01550-0816A

$2.31

24

RELAY ASSY, FAN MOTOR

38740-24X50

$41.38

25

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

26

KEY,BLANK (IMMOBI) | OPT This part replaces 37146-41G10.

37146-41G00

$39.40
