2007 Suzuki GSX-R750 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

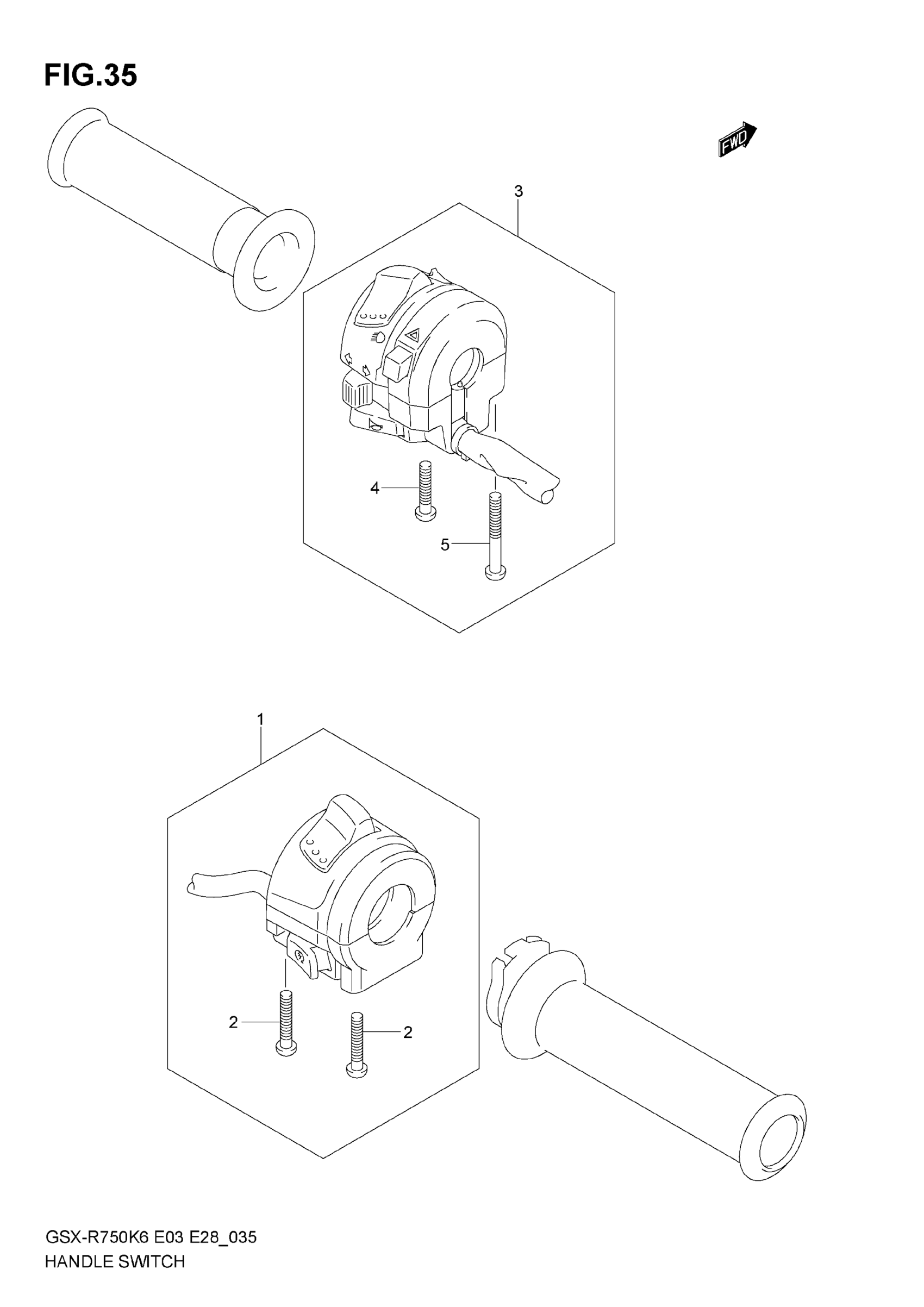

2007 Suzuki GSX-R750 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY, HANDLE, RH | Includes Item(s) 2

37200-01H30

1
Out of stock

2

2

$2.23

In stock

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 - 5

37400-01H10

1
Out of stock

4

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

1
Out of stock

5

SCREW This part replaces 02112-05403.

02112-0540B

1
Out of stock
