2007 Suzuki GSX-R750 Headlamp Diagram

← All diagrams

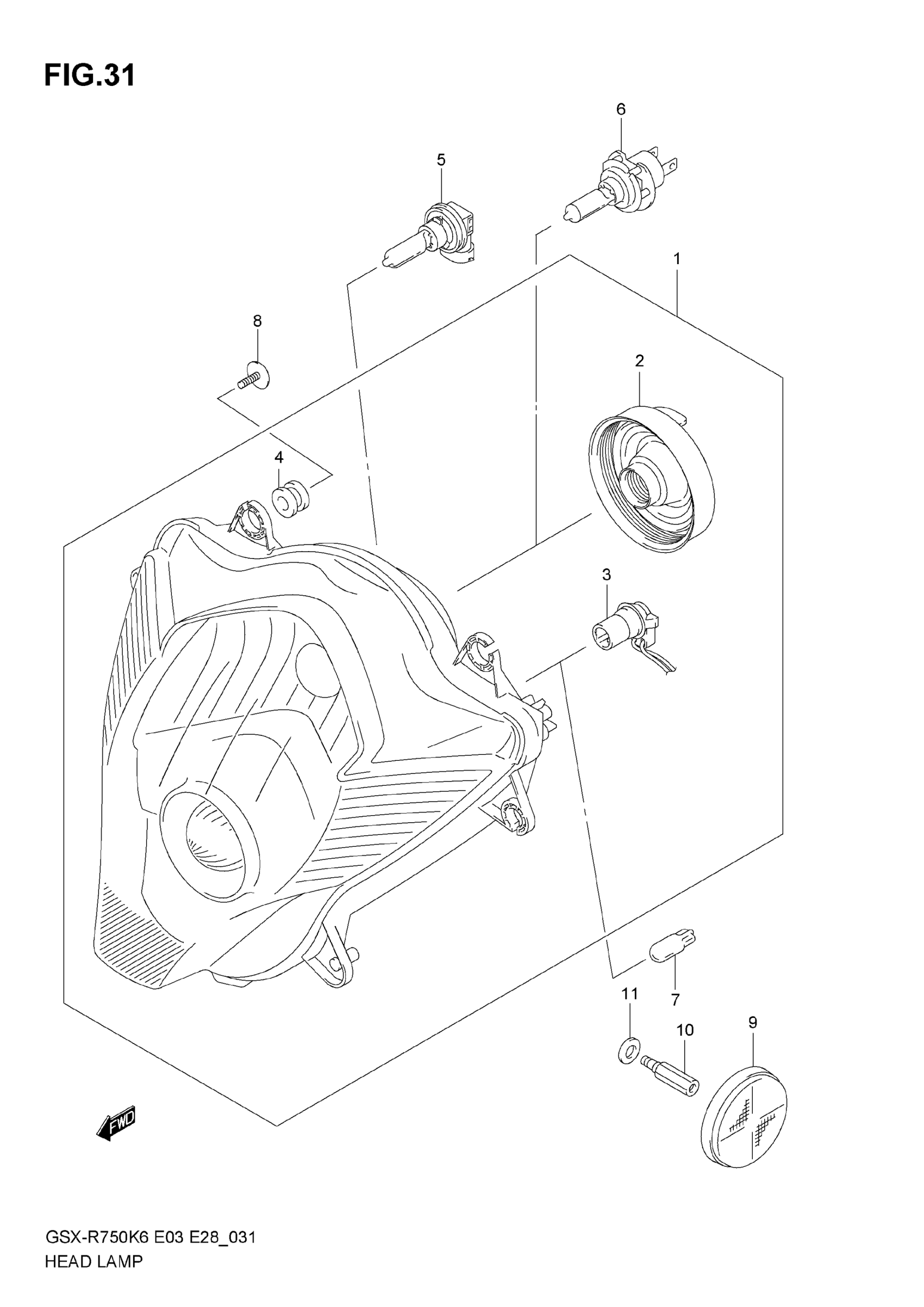

Find the part on the Headlamp diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX-R750 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY | Includes Item(s) 2 - 4 This part replaces 35100-01H00-999.

35100-01H02-999

1
Out of stock

2

COVER, SOCKET

35179-64G00

1
Out of stock

3

CORD ASSY This part replaces 36118-29G50.

36118-29G51

1
Out of stock

4

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

4
Out of stock

5

BULB (12V65W)

09471-12222

1
Out of stock

6

BULB (12V55W H7) | PURCHASE LOCALLY

09471-12188

1
Out of stock

7

.BULB (12V5W)

09471-12216

2
Out of stock

8

SCREW, HEADLAMP

09136-05062

8
Out of stock

9

REFLEX REFLECTOR ASSY, FR

35950-14A00

2
Out of stock

10

BOLT

09119-06109

2
Out of stock

11

WASHER This part replaces 09160-08119.

09160-08090

2
Out of stock
