2007 Suzuki GSX-R750 Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 2007 Suzuki GSX-R750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

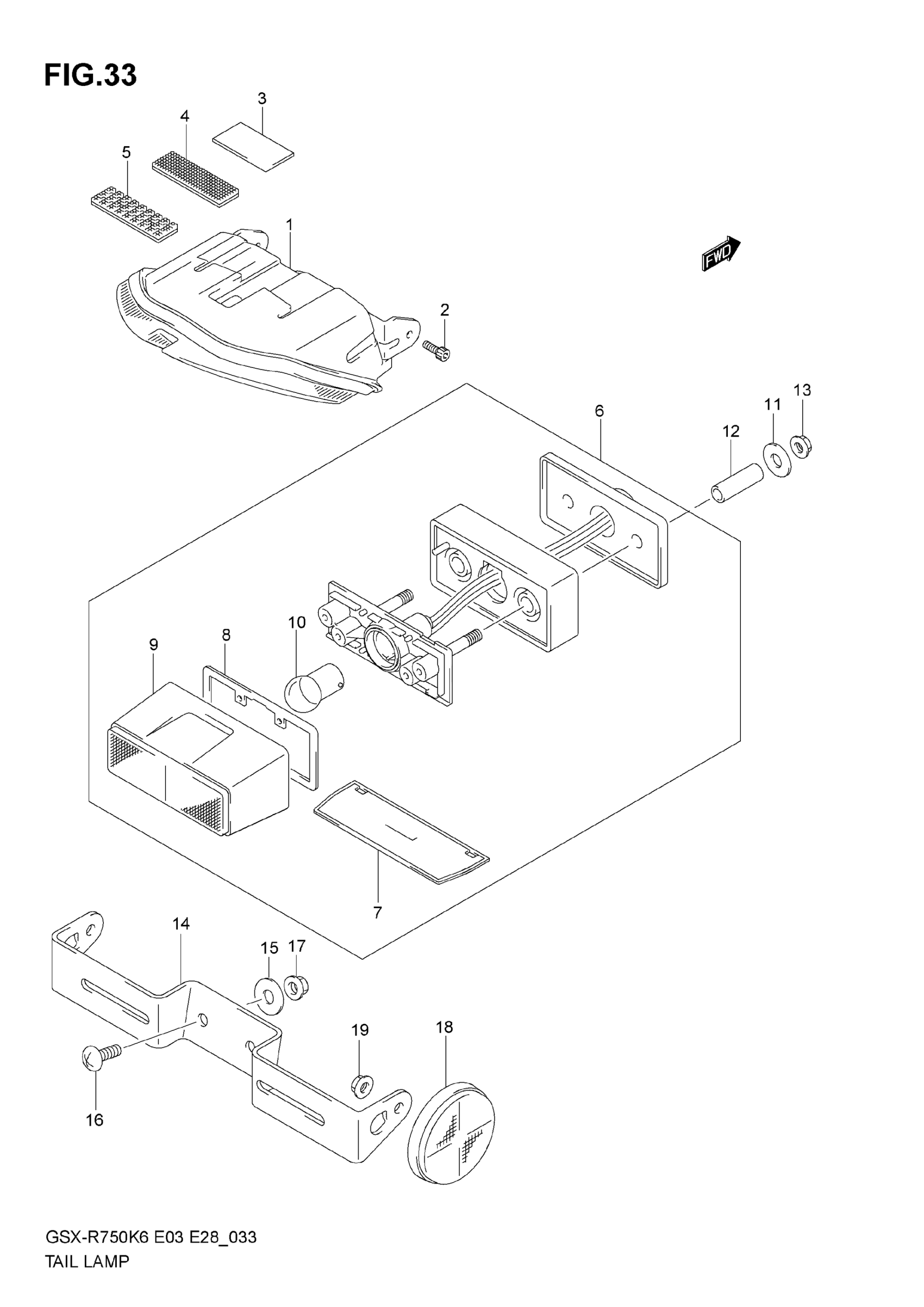

2007 Suzuki GSX-R750 Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$357.20

In stock

2

BOLT

07120-0512A

2
Out of stock

3

1

$2.38

In stock

4

FASTENER (15X60X2) | FOR BODY SIDE

35784-01H00

1
Out of stock

5

FASTENER (15X60X1.6) | FOR LAMP ASSY SIDE

35784-01H10

1
Out of stock

7

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

1
Out of stock

8

GASKET

35913-41G00

1
Out of stock

9

COVER

35917-41G00

1
Out of stock

10

1

$2.55

In stock

11

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

12

SPACER (6.5X9.0X33.3)

09180-06278

2

$4.92

In stock

13

NUT

08316-1006A

2
Out of stock

14

1

$17.12

In stock

15

WASHER (0.5X20X1.2)

09160-06077

2
Out of stock

16

SCREW

02142-0616A

2
Out of stock

17

NUT

08316-1006A

2
Out of stock

18

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

19

NUT

08316-1005A

2
Out of stock
